Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Body Style | Submersible |
| For Use With | Level Measurement |
| Function | Non-contact Level Detection |
| IP Rating | IP68 |
| Mounting Type | NPT 0.75 in |
| Output | SPST-NO/NC |
| Sensing Mode | Ultrasonic |
| Series | |
| Special Features | Intrinsically Safe |
| Supply Voltage | 12-36 VDC |
| Termination | Cable |
| Type | Switch |
Overview

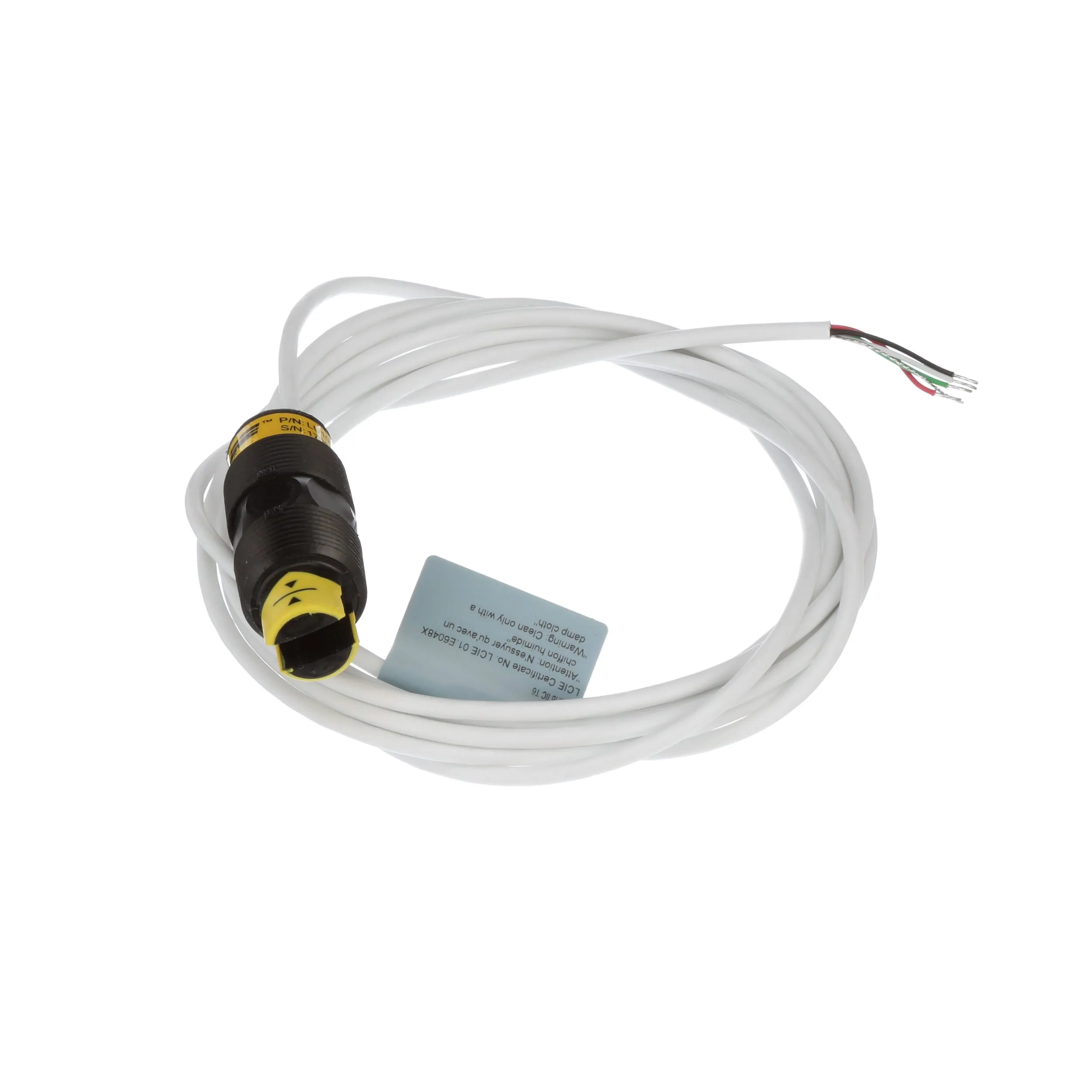

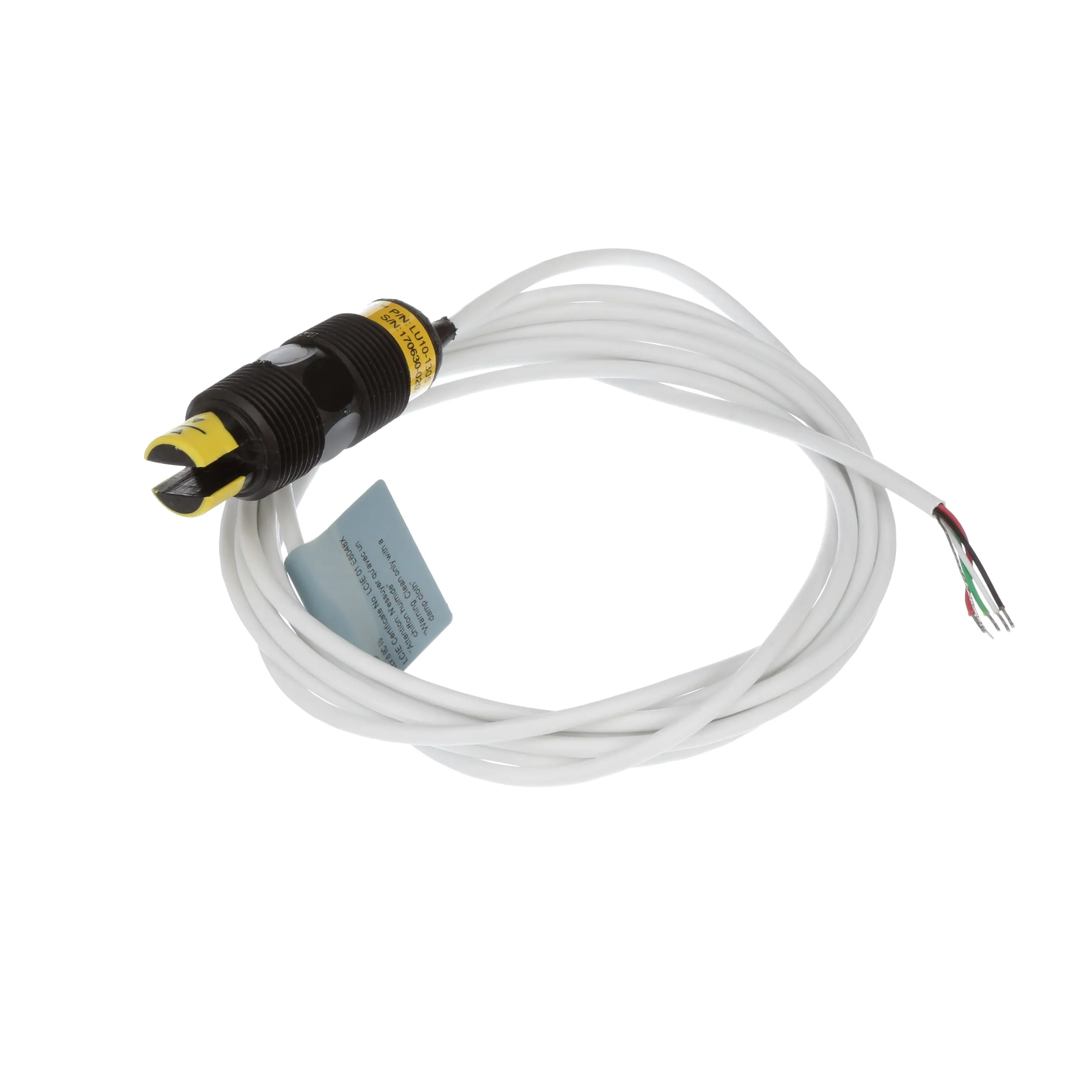

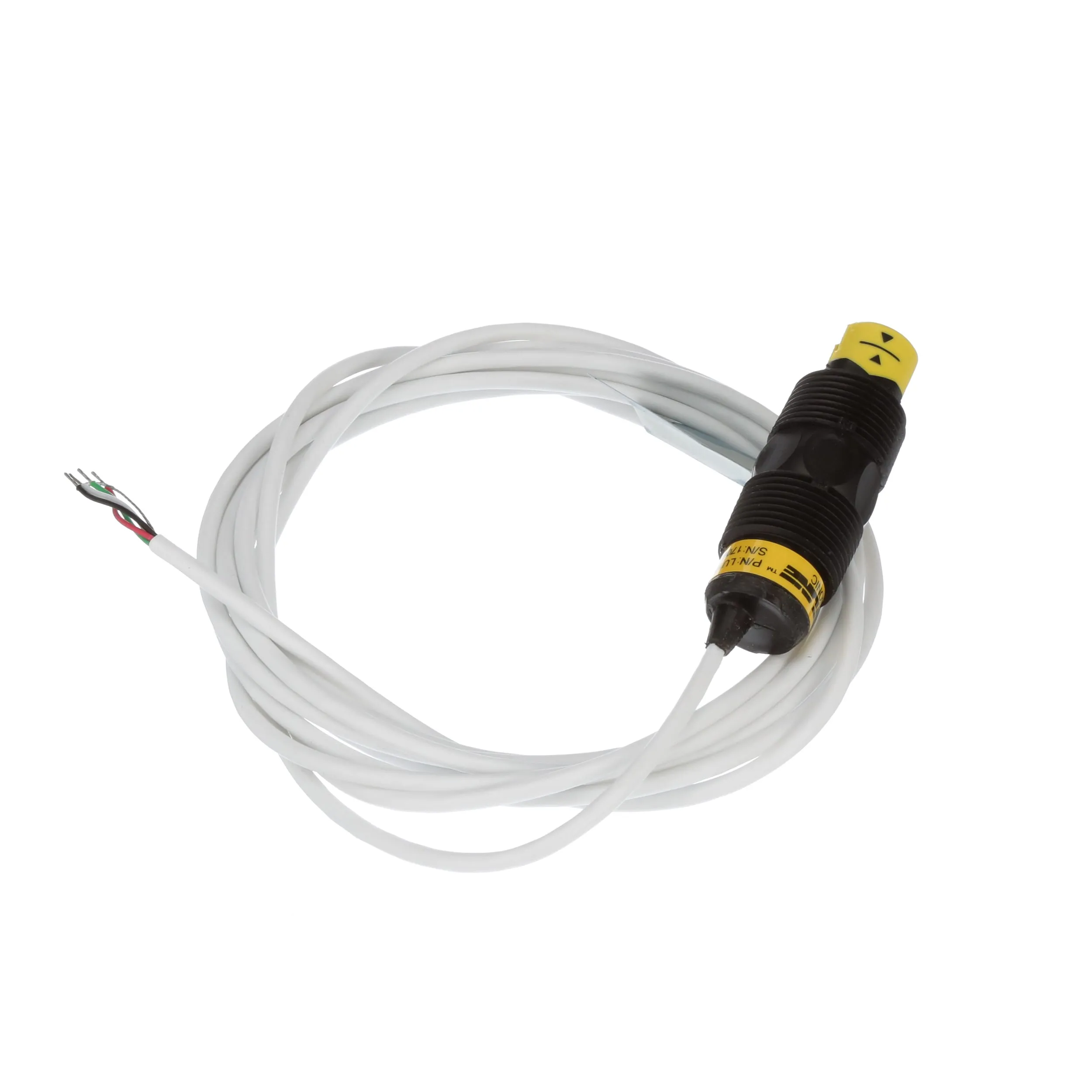

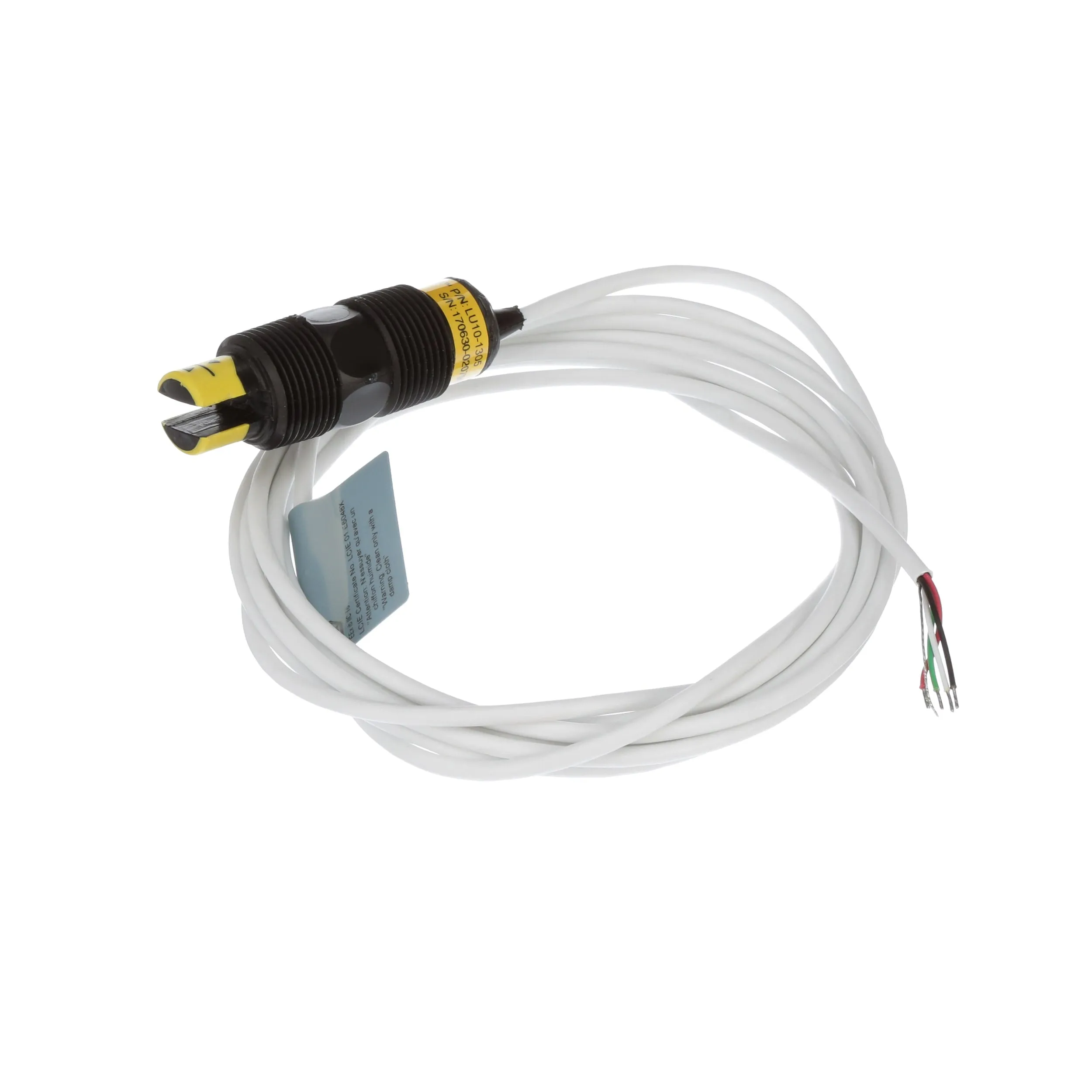

Switch-Tek™ Ultrasonic Level Switch. CSA approved for hazardous environments, the intrinsically safe ultrasonic level switch provides reliable liquid level detection of chemical, solvent, hydrocarbon and petroleum based liquids with a 1A relay output. Media examples include fuel, acetone and hydrochloric acid. The submersible PP or PFA liquid level sensor is universally mounted through the tank wall or inside the tank as a high level alarm or low level alarm.
Features:
