Product Details
Airfreight Not Available

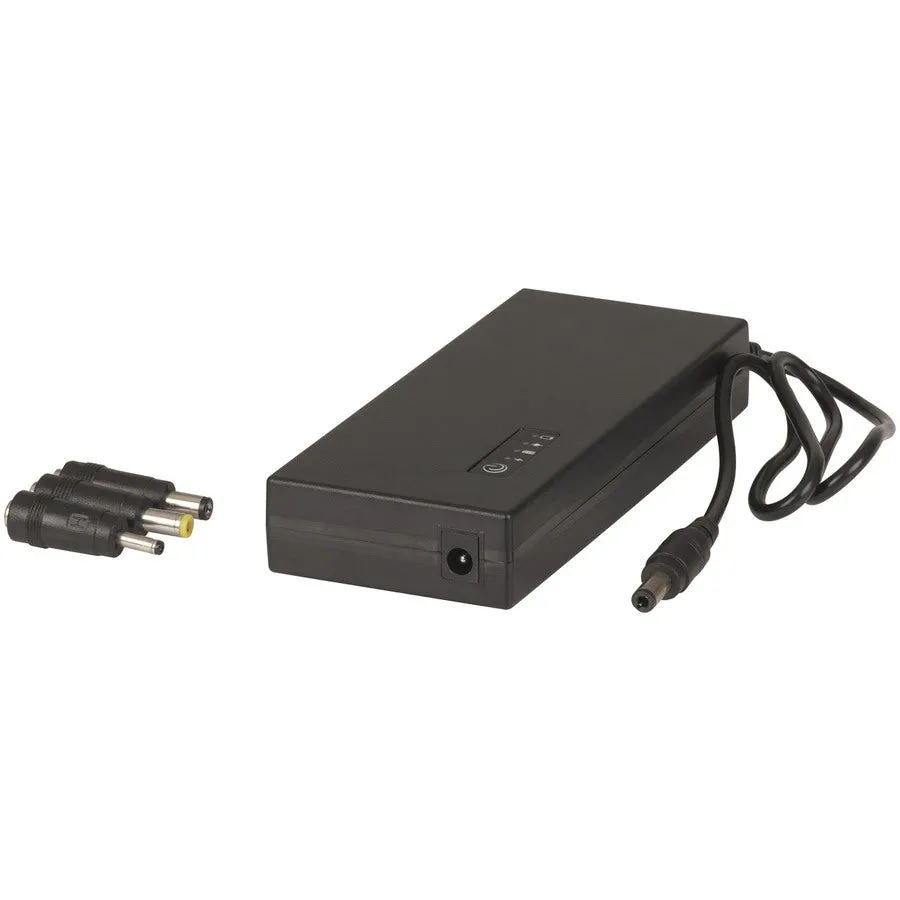

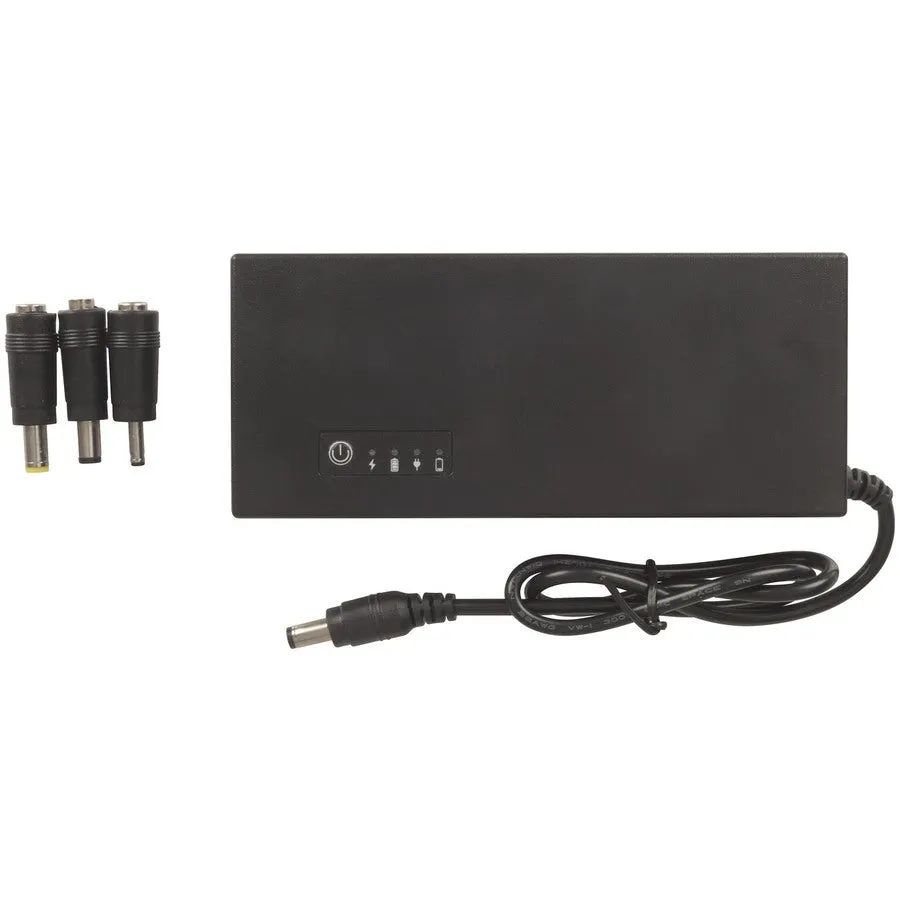

A compact DC UPS designed to connect inline with your ordinary 12VDC mains power adaptor. In the case of a power outage, the internal battery will keep your equipment operating for longer. Three interchangeable DC connectors are supplied to suit a range of devices such as a modem, network switch, router, video device, surveillance systems or lights. An integrated smart charger ensures the internal 18650 Li-ion batteries are charged, and adjusts the charge current based on the current draw to the device you are powering. The rated output is 2.5A at 12V but 3A can be provided for a short time. Four status LEDs indicate the UPS charge status, and safety features include over-charge, over-discharge, over-current, and short-circuit.

Features:
- 2.5A Output
- DC Power
- Built-in rechargeable Li-ion battery
- Integrated smart charger
- LED status indicators

DC Connectors (mm):
Input: 5.5OD x 2.1ID - Center Tip Positive
Output: 5.5OD x 2.5ID - Center Tip Positive

Adaptors (mm):
5.5OD/2.5ID Male to 5.5OD/2.1ID Female - Center Tip Positive
3.5OD/1.35ID Male to 5.5OD/2.5ID Female - Center Tip Positive
5.5OD/2.1ID Male to 3.5OD/1.35ID Female - Center Tip Positive

Specifications:

DC current rating 2.5A
DC Current Surge Rating 3A

DC Voltage 12.2V

Recharging Voltage 11.8V-12.5V
Standard Recharge Current 0.8A

Battery Chemical Composition Lithium Ion
Type of battery 18650

Width 60mm
Height 24mm
Weight 260g
Length 138mm

DG UN Number 3481
DG Ship Name 3481 - Lithium Ion Batteries Packed In Equipment
DG Class 9
DG Pack Group II - Medium Danger
DG Hazardous Chemical Code 4W
Battery Watt Hour Rating (Required for Lithium Batteries) 7.4Wh

Downloads

12V 2.5A DC to DC Uniteruptable Power Supply
