Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Color | Green |
| Current, Forward | 15 mA (Max.) (Continuous) |
| Diameter, Mounting Hole | 1⁄4 in. |
| Height | 0.75" (19.1mm) |
| Lamp Type | LED |
| Luminous Intensity | 4.0 mcd (Typ.) |
| Mounting Hole Size | 0.25 in. |
| Product Header | 5102 Series Panel Mounted LED Indicator Light |
| Series | |
| Special Features | Integrated Resistor |
| Supply Voltage | 12 VDC |
| Termination | Lead Wires |
| Type | General Purpose |
| Voltage, Operating | 12 V |
| Wavelength, Peak | 565 nm |
Overview

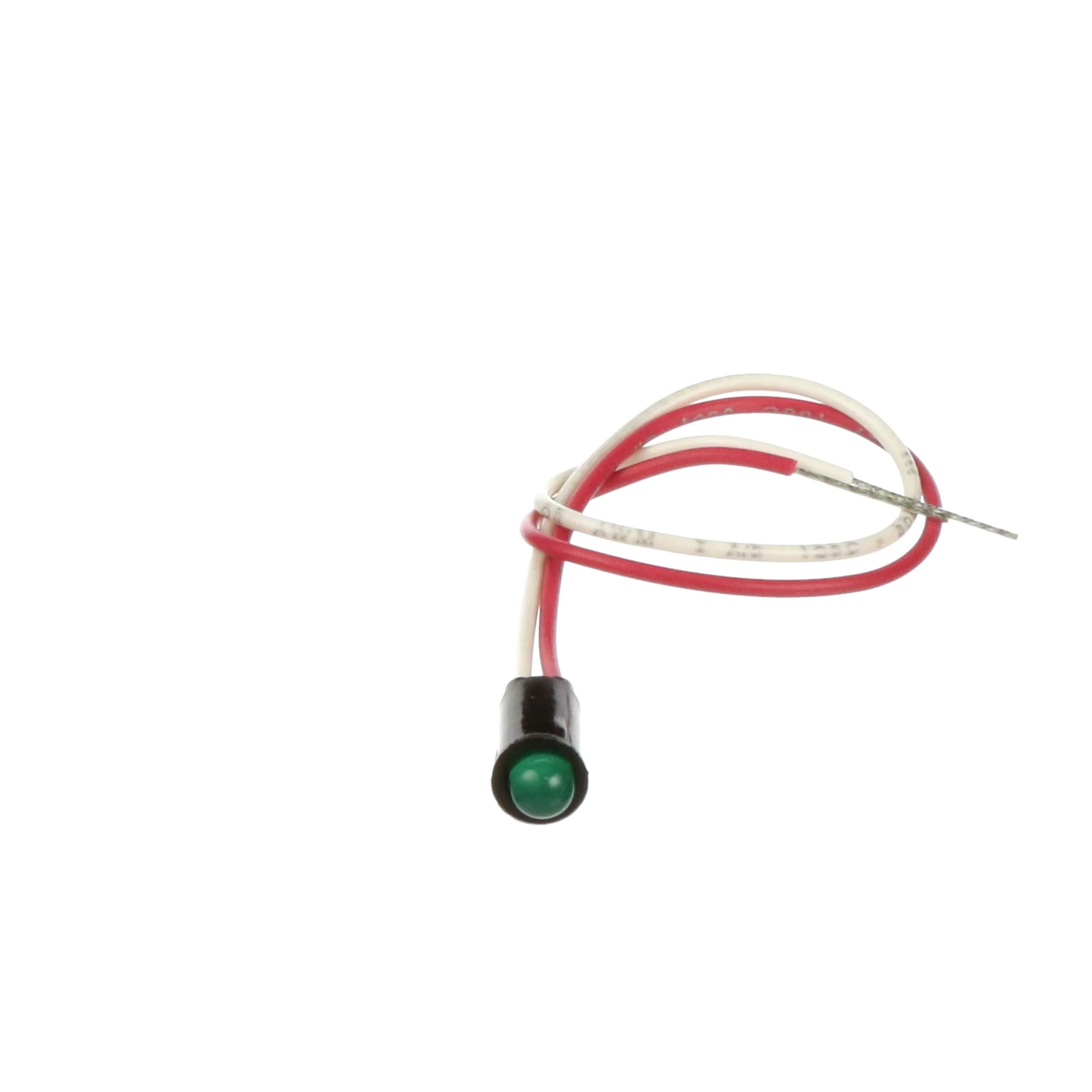

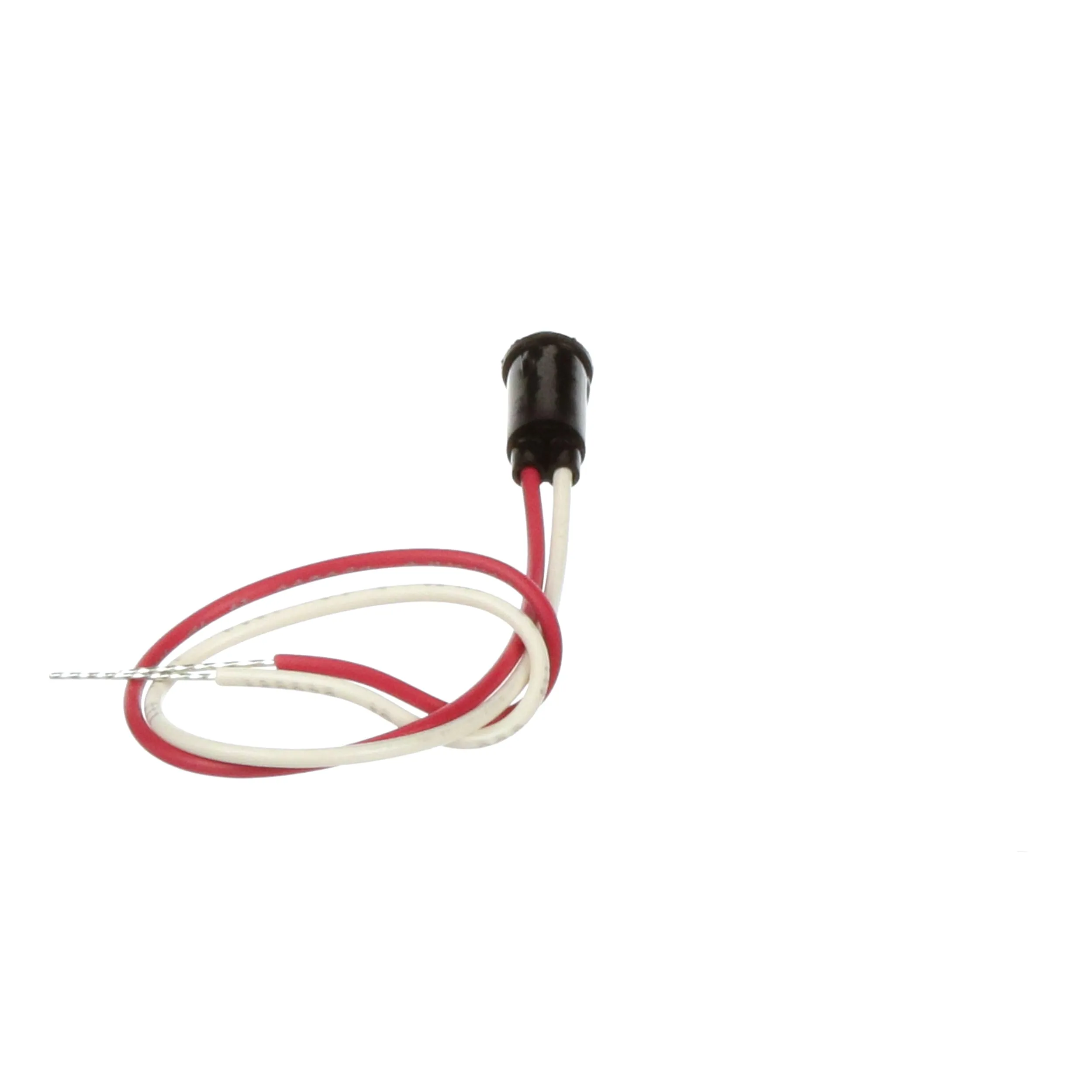

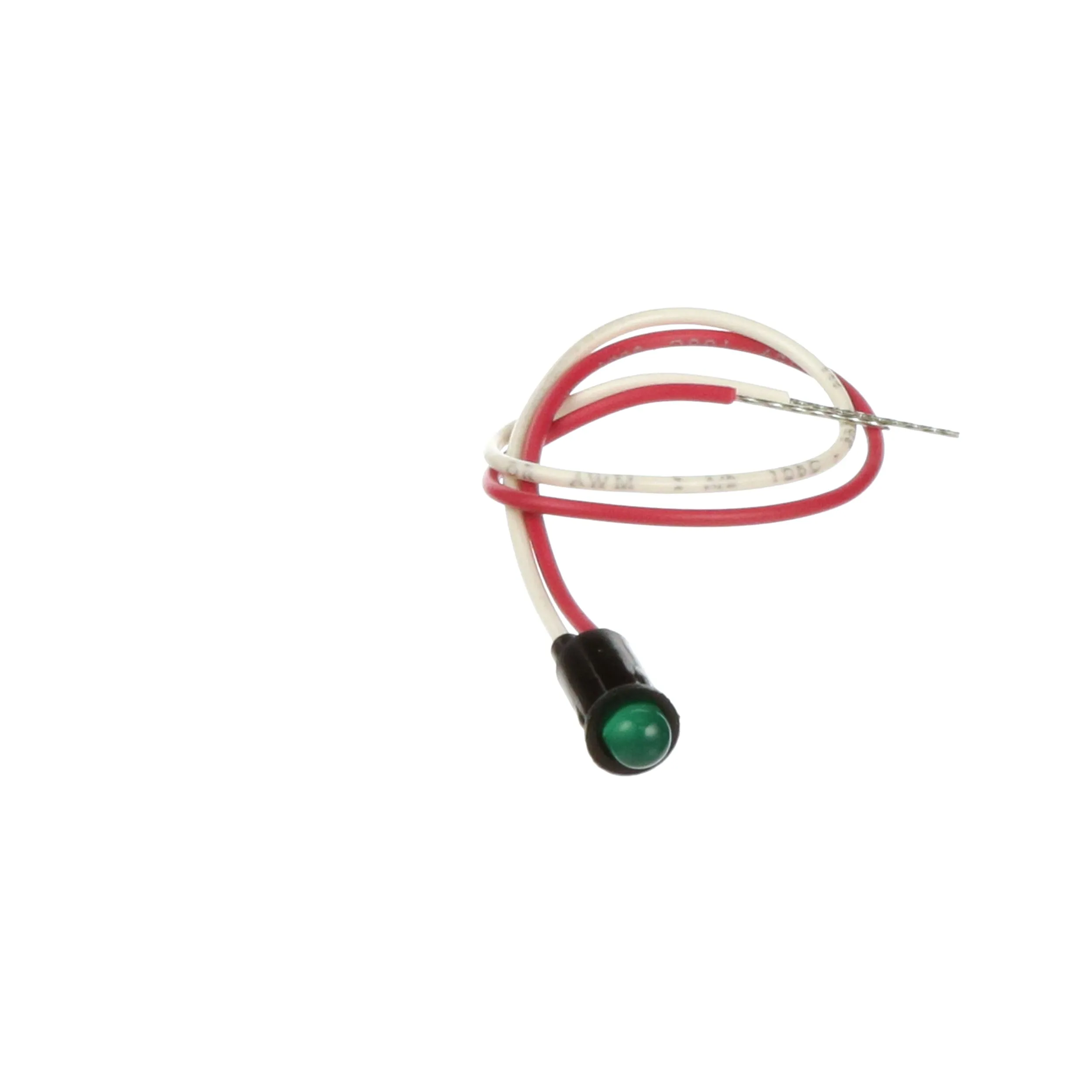

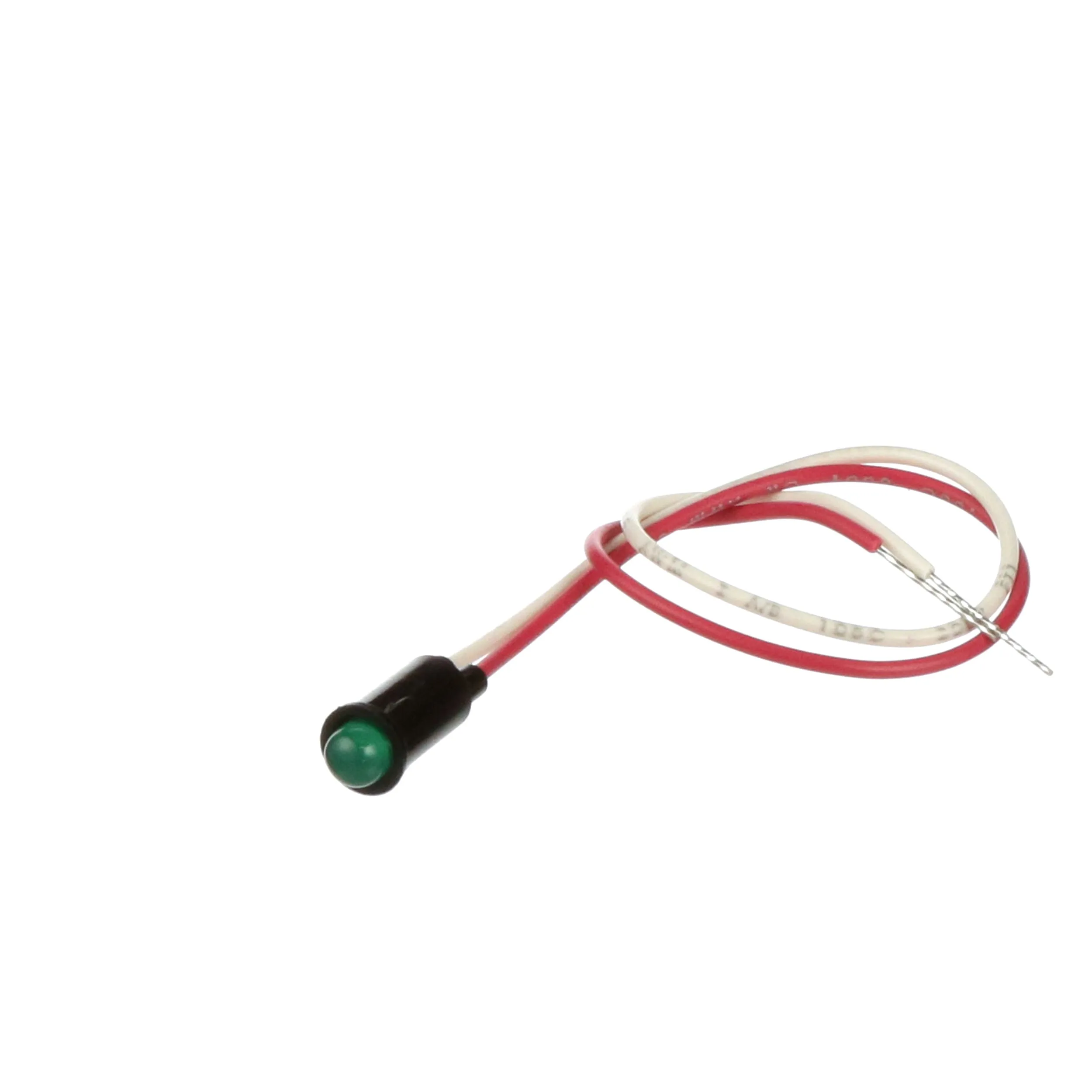

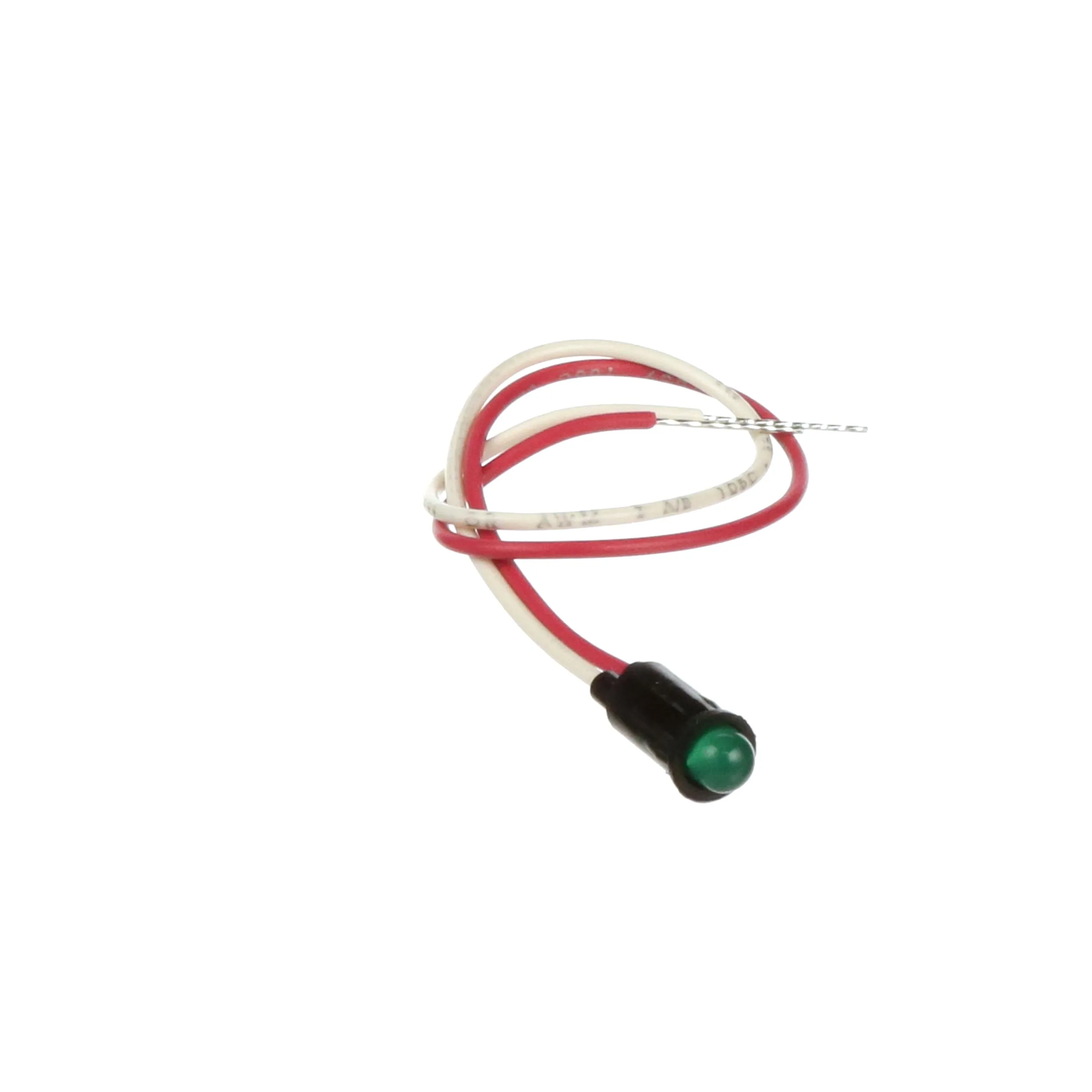

Panel Mount LED Indicator Lights
Mounting will snap-fit in 0.249/0.254 in. hole in panels 0.031/0.062 in. thick
ire leads: 24 AWG, 6 in. insulated, bonded strands, stripped 1/2 in.
Red lead anode ( )
Black nylon housing
