Asset tracking is hard, we make it easy

The Particle Tracking System: The most flexible and customizable asset-tracking solution on the market

Track Anything & Everything: Designed to integrate with any external sensors to enable your business to track asset location, along with temperature, sound, motion, air quality and more

Built for rapid deployment: Deploy your way with field-ready devices pre-packaged with reference firmware applications and out-of-the-box features like geolocation mapping, location tracking, edge geofencing, & location fusion

Everything you need for reprogrammability: Continuously iterate and improve your assets even after deployment with Particle’s OTA updates and No Code Configuration

Built on the Particle Platform: Particle’s Tracking System inherit the benefits of the Particle integrated IoT Platform, an “all-in-one” technology stack, spanning edge hardware, edge software, cellular connectivity, and cloud-based management software.

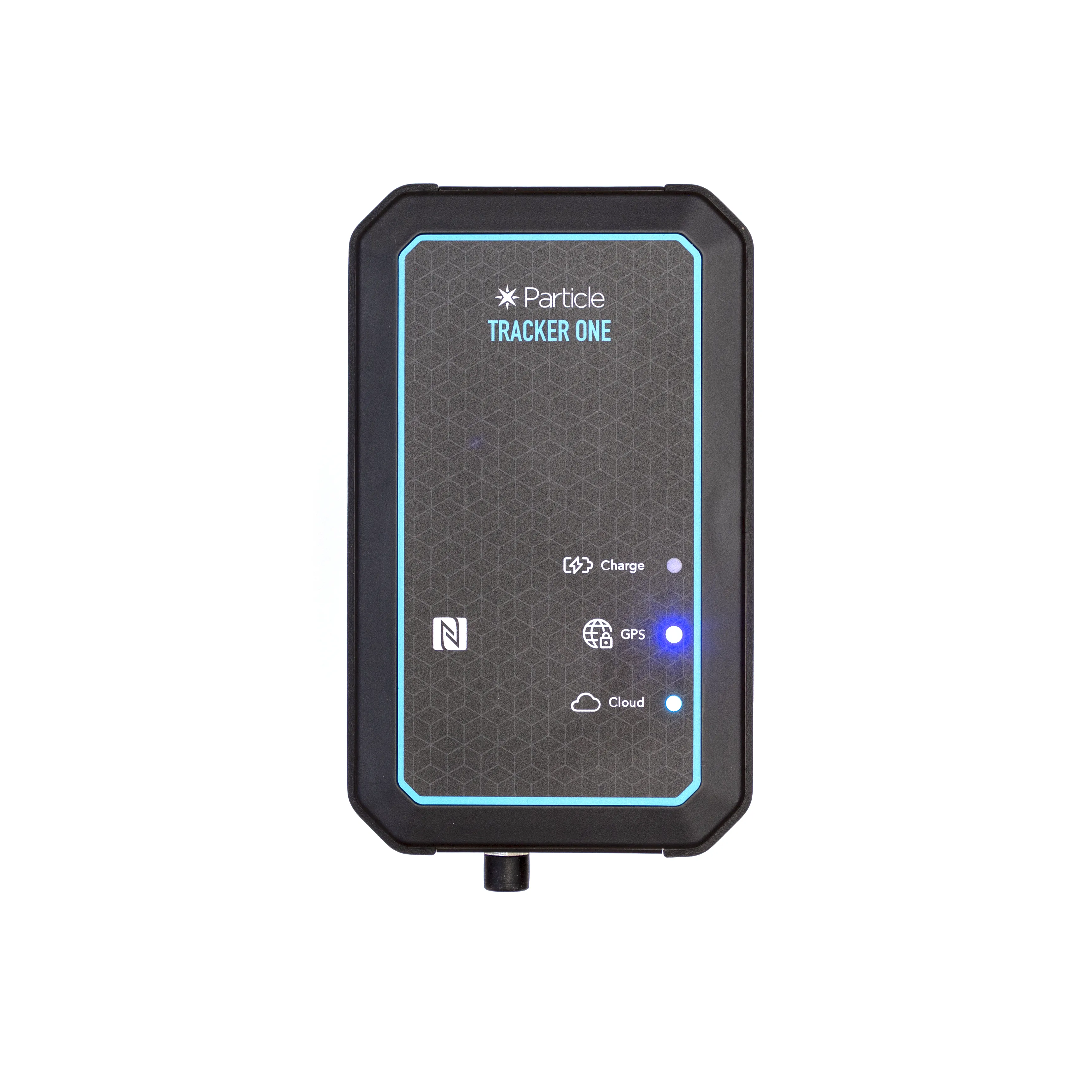

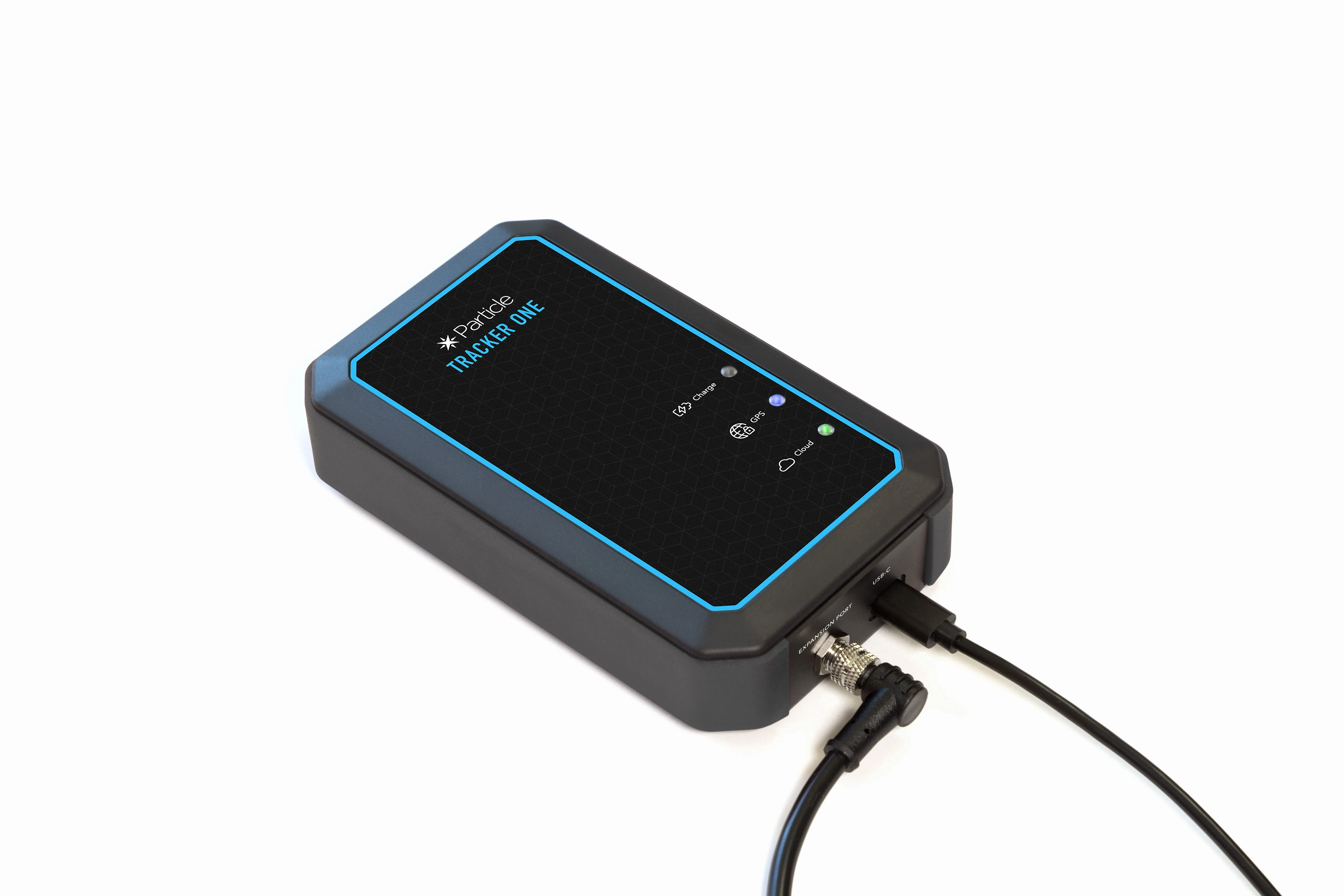

Tracker One: A field-ready reference product

Utilizing Particle Tracking Services and the T SoM as a foundation, Tracker One is a fully-functional and field-ready tracker solution. Tracker One is fully certified, immediately deployable, and requires no additional development.

Tracker One’s hardware design and firmware are open source and can be customized to suit your unique needs or act as a reference design for a fully custom product.

What's included?

• Tracker One
• USB-C cable

Technical Specifications

• Complete enclosed, IP67 rated, asset tracker for immediate use

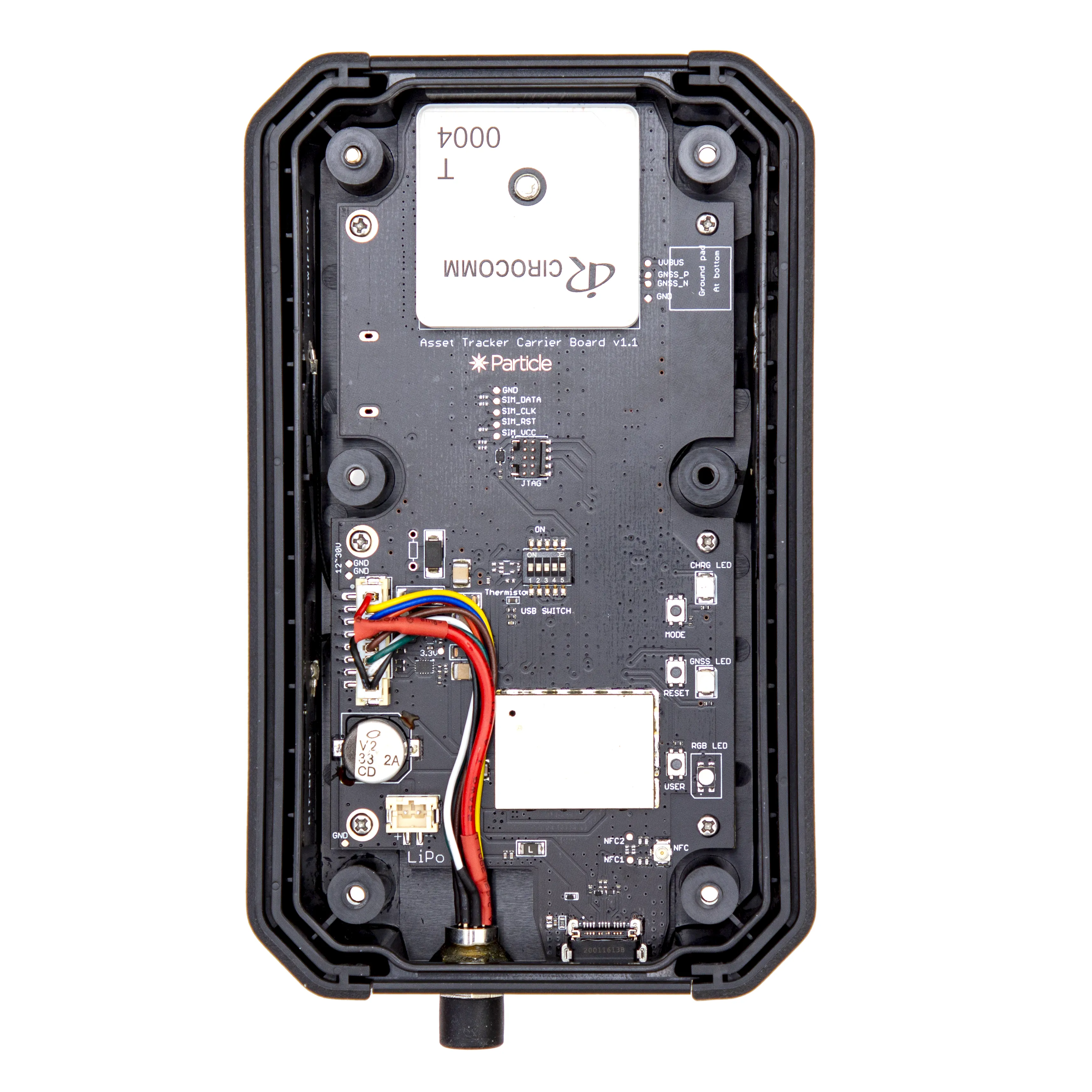

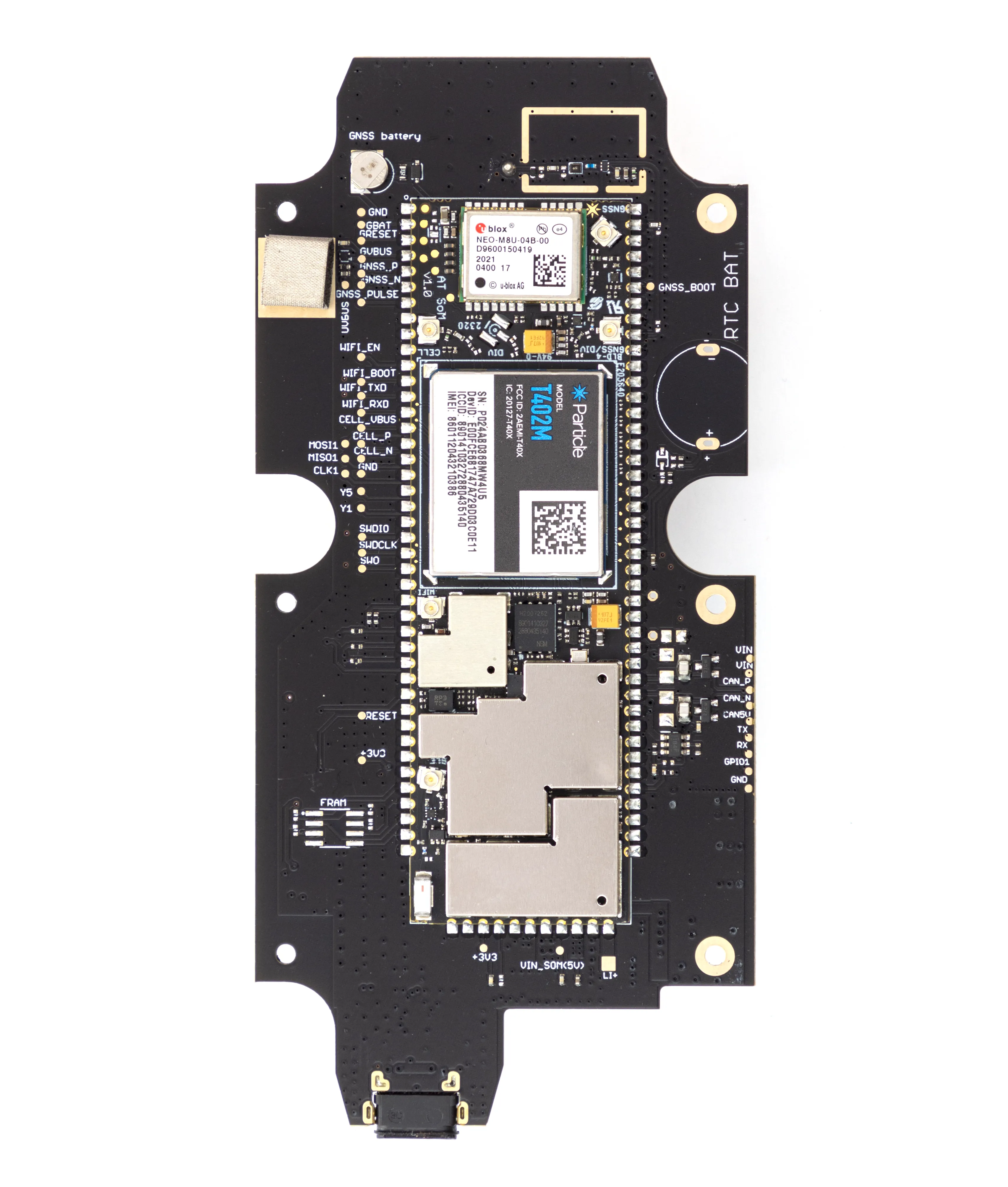

• Includes the Asset Tracker SoM mounted on carrier board and installed in an IP67-rated enclosure

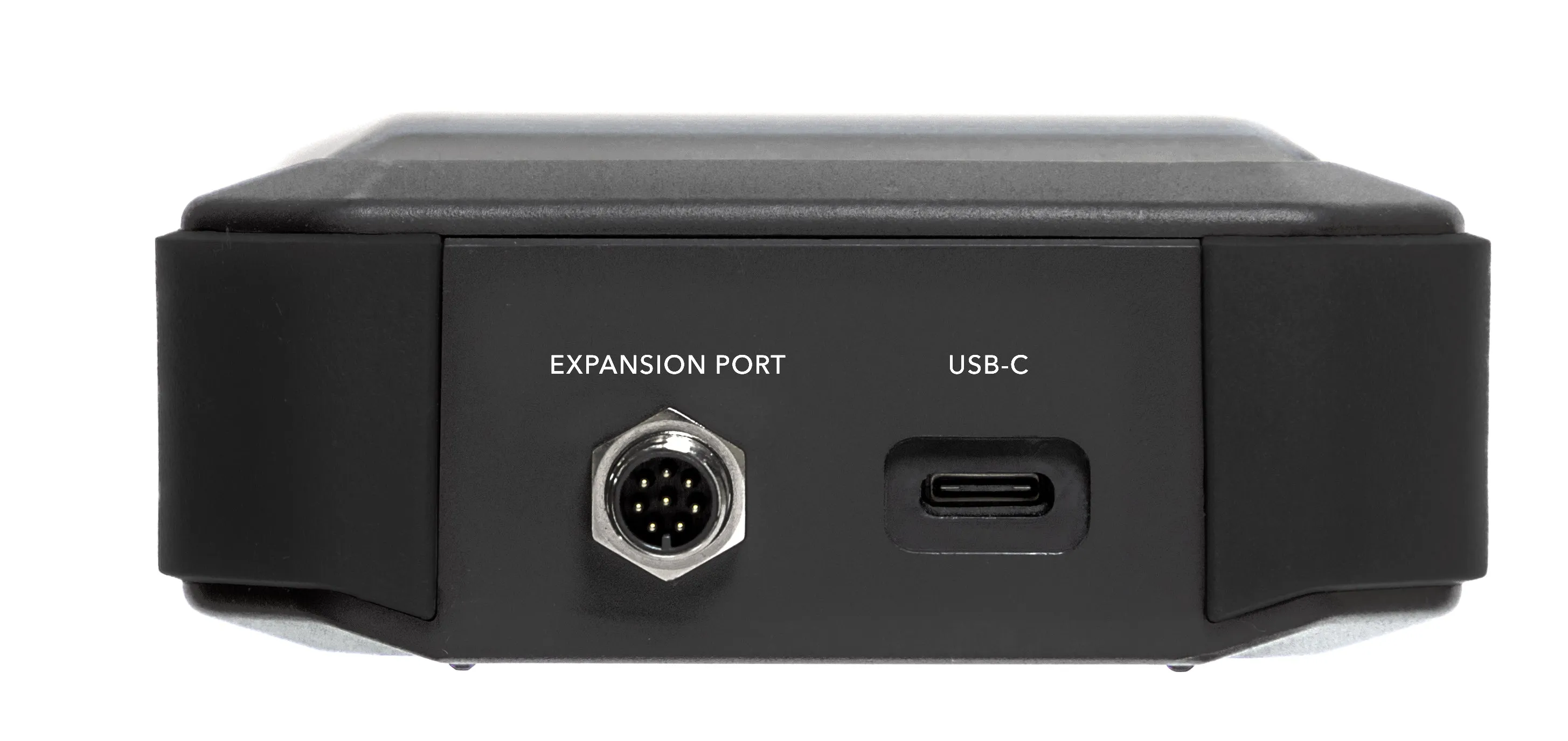

• IP67-rated M8 connector includes CAN Bus, UART, GPIO, and power for simple expansion
• Flexible power supply accepts 4.5-30V power supply (105V may be used if connecting power direct to the carrier board without using the M8 connector). Also accepts 5V supply via USB-C. Switched LiPo battery connector, charge LED, backup battery for GPS and RTC
• High-precision Thermistor: with accuracy to 1%
• USB-C: for flashing, debugging and power with higher charging rates than micro-USB
• RGB LED: for use as both a user-configurable device as well as Particle status information
• Backup Battery: for RTC and GNSS

With now added Verizon support, customers can access all three major US carriers – AT&T, T-Mobile, and Verizon – using this device, making it simpler to deploy connected products anywhere in the US with confidence. Please note that Verizon support is exclusively available to Professional and Enterprise customers. For more information, please reach out to .
