The CS40Pro is a cutting-edge depth camera featuring a 640 x 480 PToF image sensor and a 3D RGBD sensor. Leveraging advanced Phase Time-of-Flight (PToF) technology, the CS40Pro captures detailed 3D spatial information of objects and environments with a wide Field of View (FOV). With Gigabit Ethernet for high-speed data transmission, it delivers precise, real-time 3D perception.

Equipped with a powerful Cortex-A55 Quad-Core hardware processing platform, the CS40Pro enables on-device integration of diverse application algorithms, minimizing reliance on external platforms. It supports CAN, TCP/IP, and RS485 protocols for robust, long-distance data transmission, making it ideal for AI-driven applications requiring high-speed processing and connectivity.

For enhanced AI capabilities, the CS40Pro supports advanced model recognition, identifying a wide range of objects in real-time to streamline tasks in fields such as automation, robotics, and security.

Features
• Gigabit Ethernet transmission, high frame rate, low latency

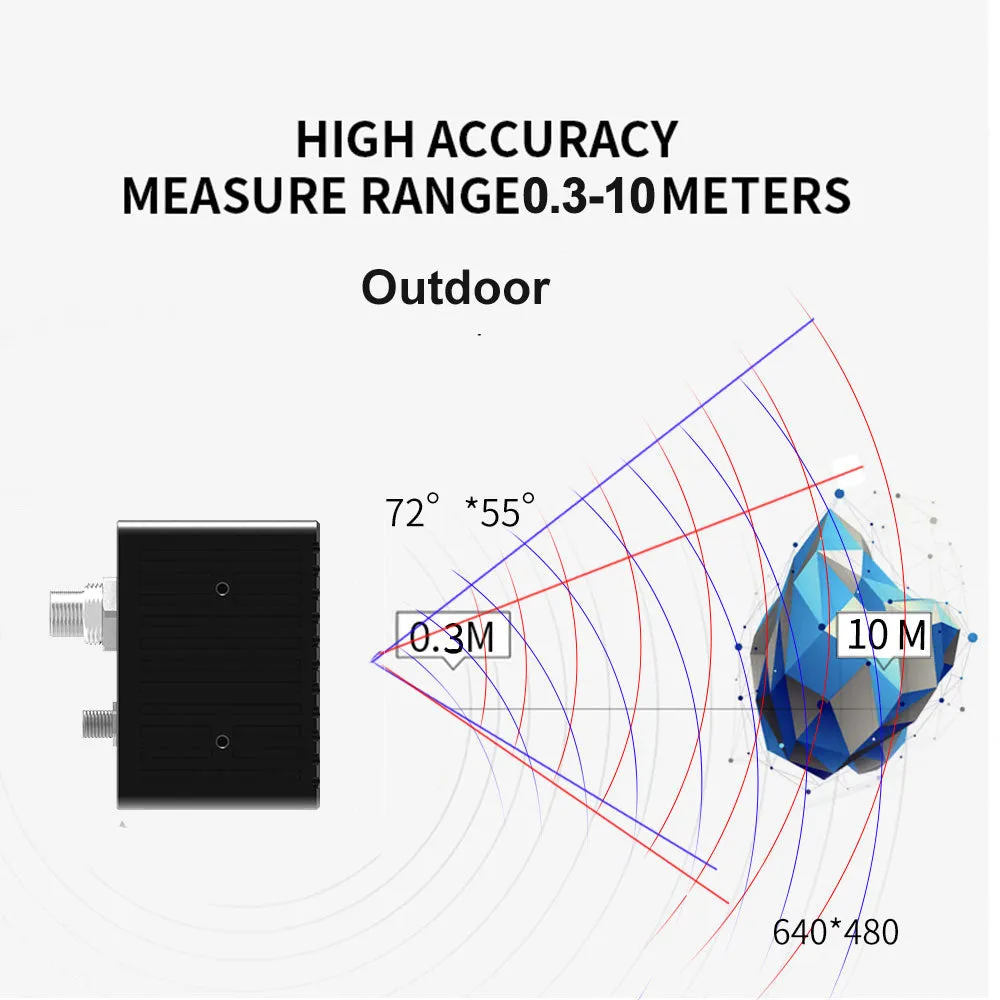

• High dynamic measurement range (0.5~10m@Ref 90%)
• Sunlight resistant (100Klux)

Applicable scenarios
• Outdoor obstacle avoidance
• Security protection
• Industrial visual positioning and guidance
• Route guidance, edge detection

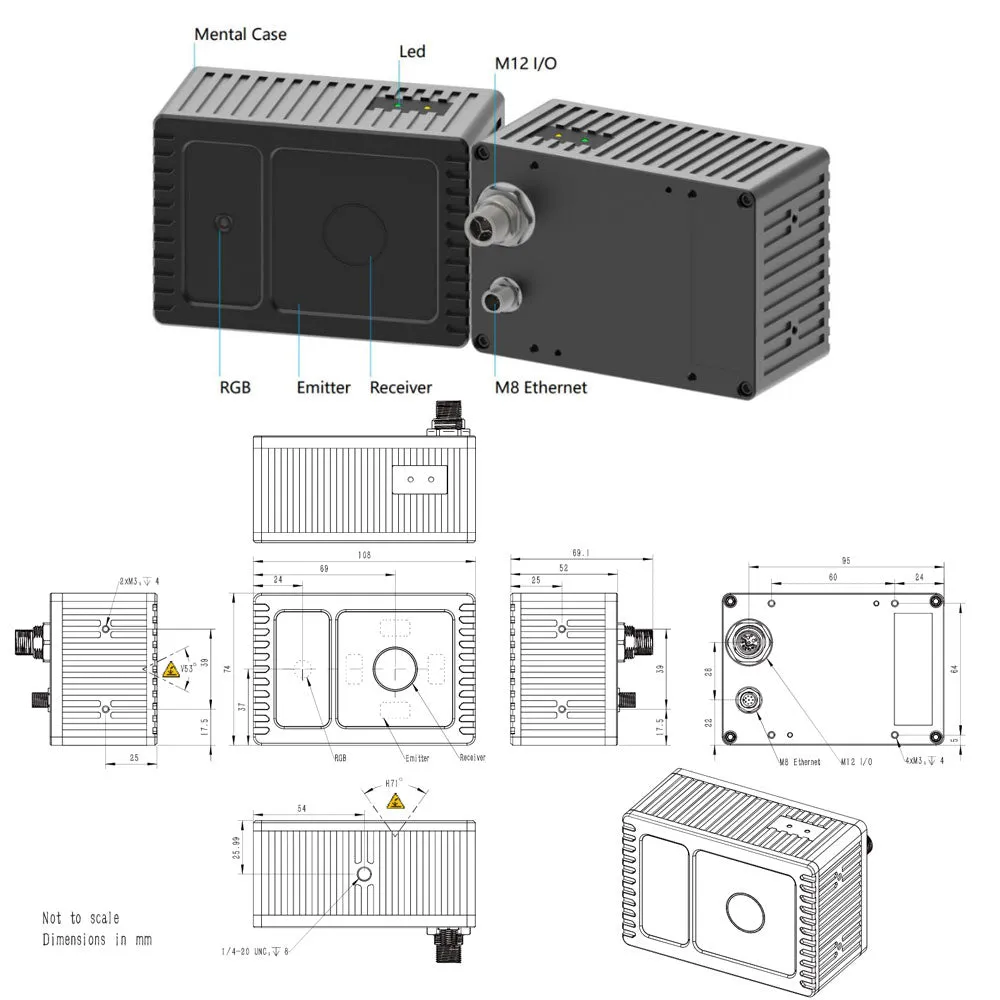

 Mechanical structure

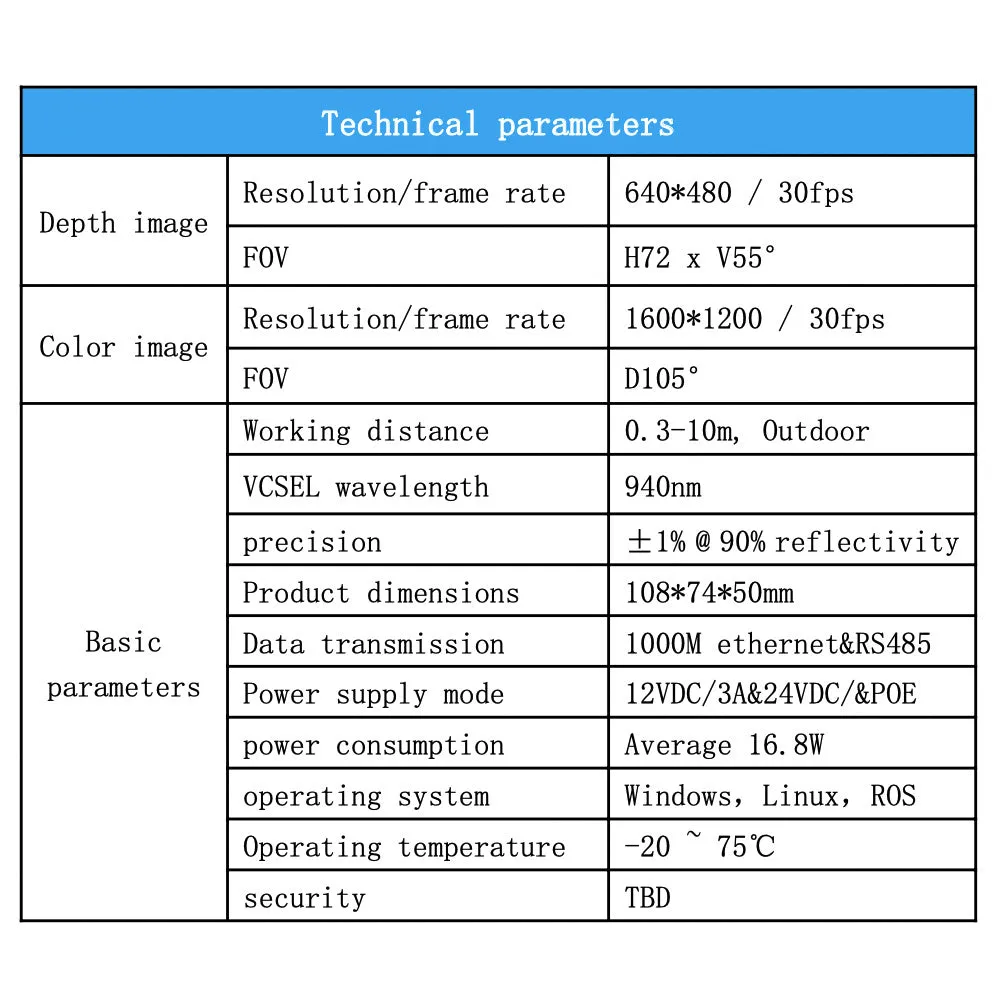

 · Technical Parameter

Resolution/frame rate :1600*1200 / 30fps

0.3-10m, Outdoor

1000M ethernet&RS485

12VDC/3A&24VDC/&POE

Average 16.8W

· Precautions

•  Do not use other heat sources to heat this product;
•  Do not drop, hit, or disassemble this product to prevent damage to internal components and reduced accuracy;
