Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Configuration | Encapsulated |
| Current Rating | 2 A |
| Dimensions | 2.55" L x 4.71" H x 1.29" W |
| Frequency, Switching | 100 kHz (Typ.) |
| Input Voltage | 20-72 VDC |
| Mounting Type | DIN Rail/Panel |
| Number of Outputs | 1 |
| Operating Temperature | -25 to 65 °C |
| Operation | Switching |
| Output | 15VDC@2A |
| Output Power | 30 W |
| Output Voltage | 15 VDC |
| Power Rating | 30 W |
| Primary Type | DC-DC |

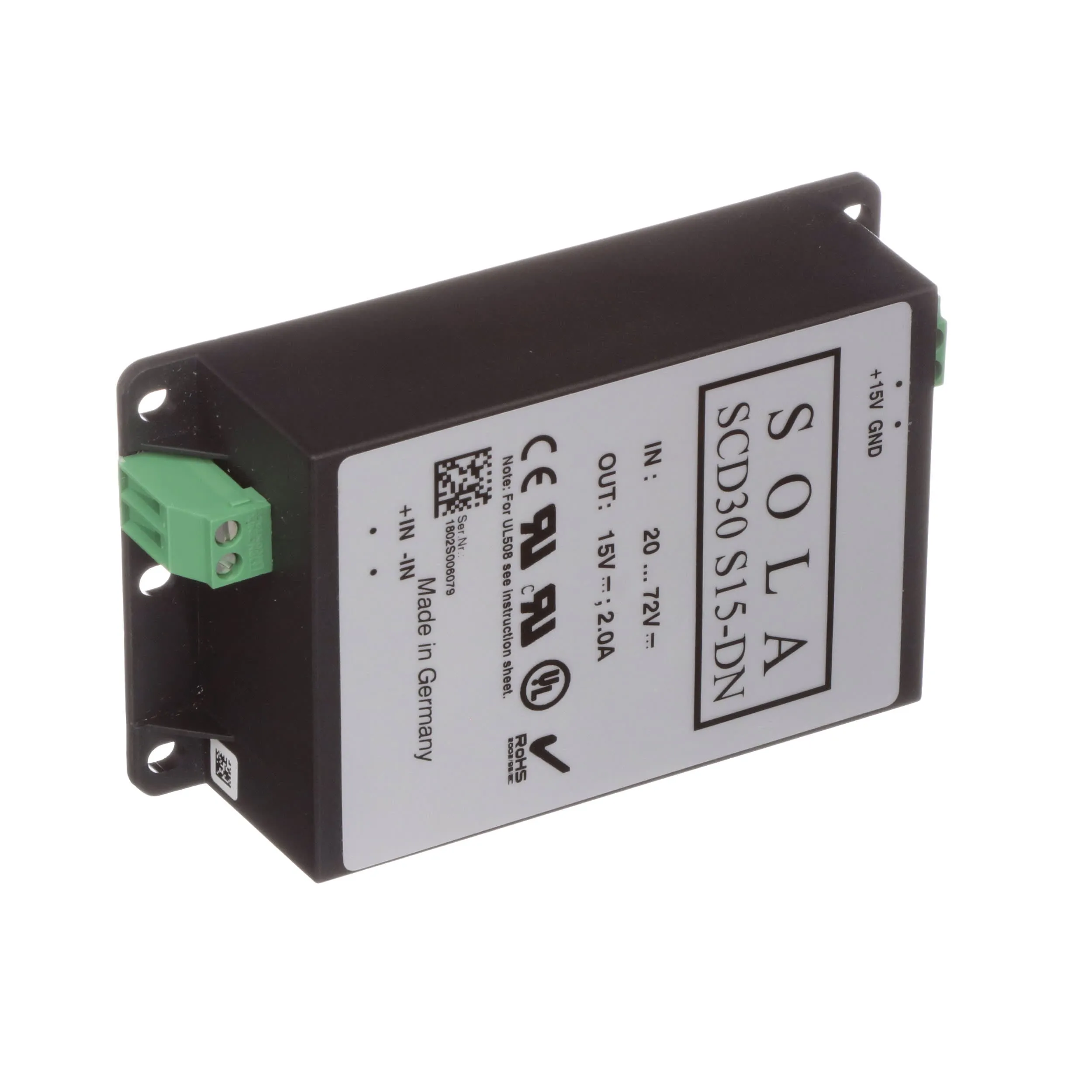

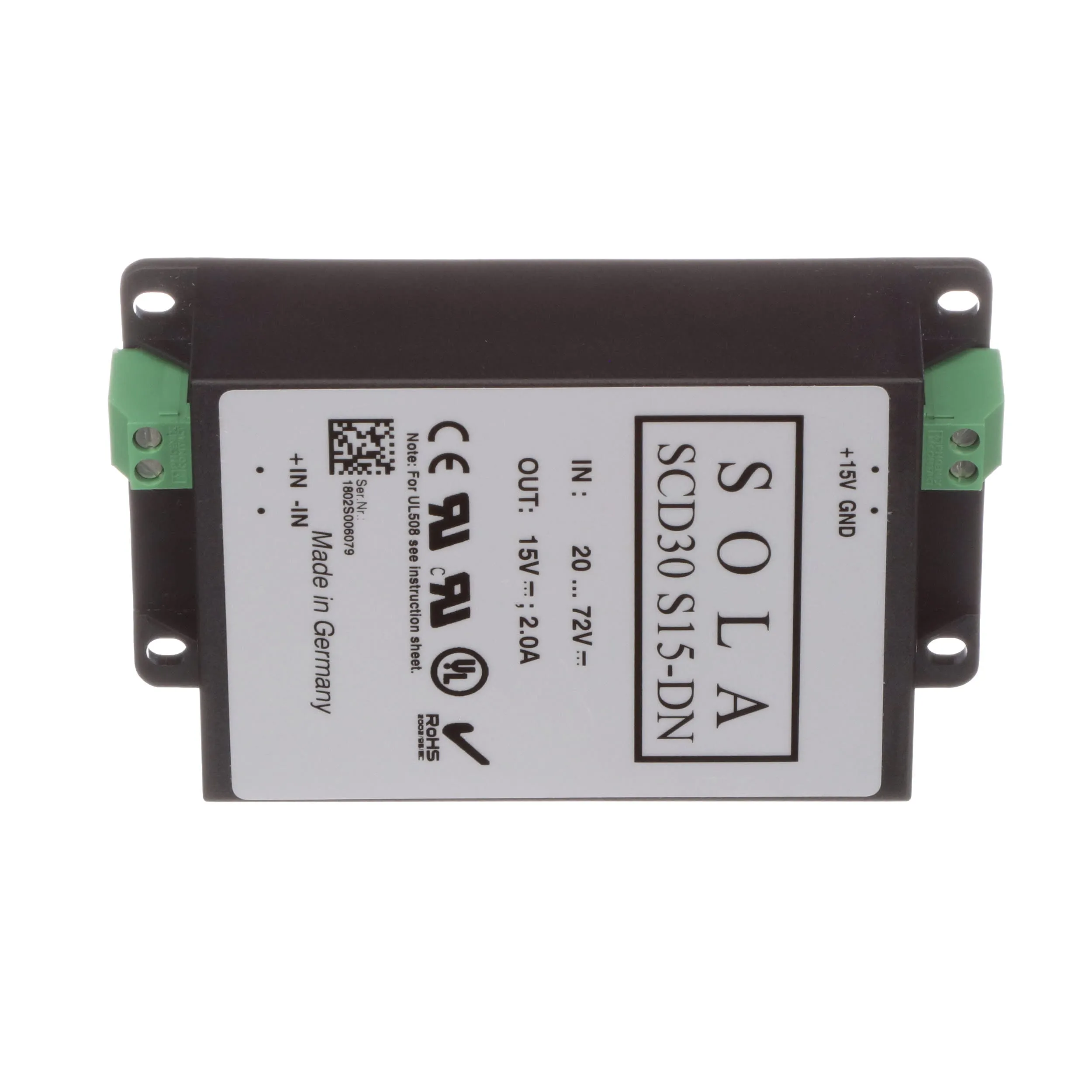

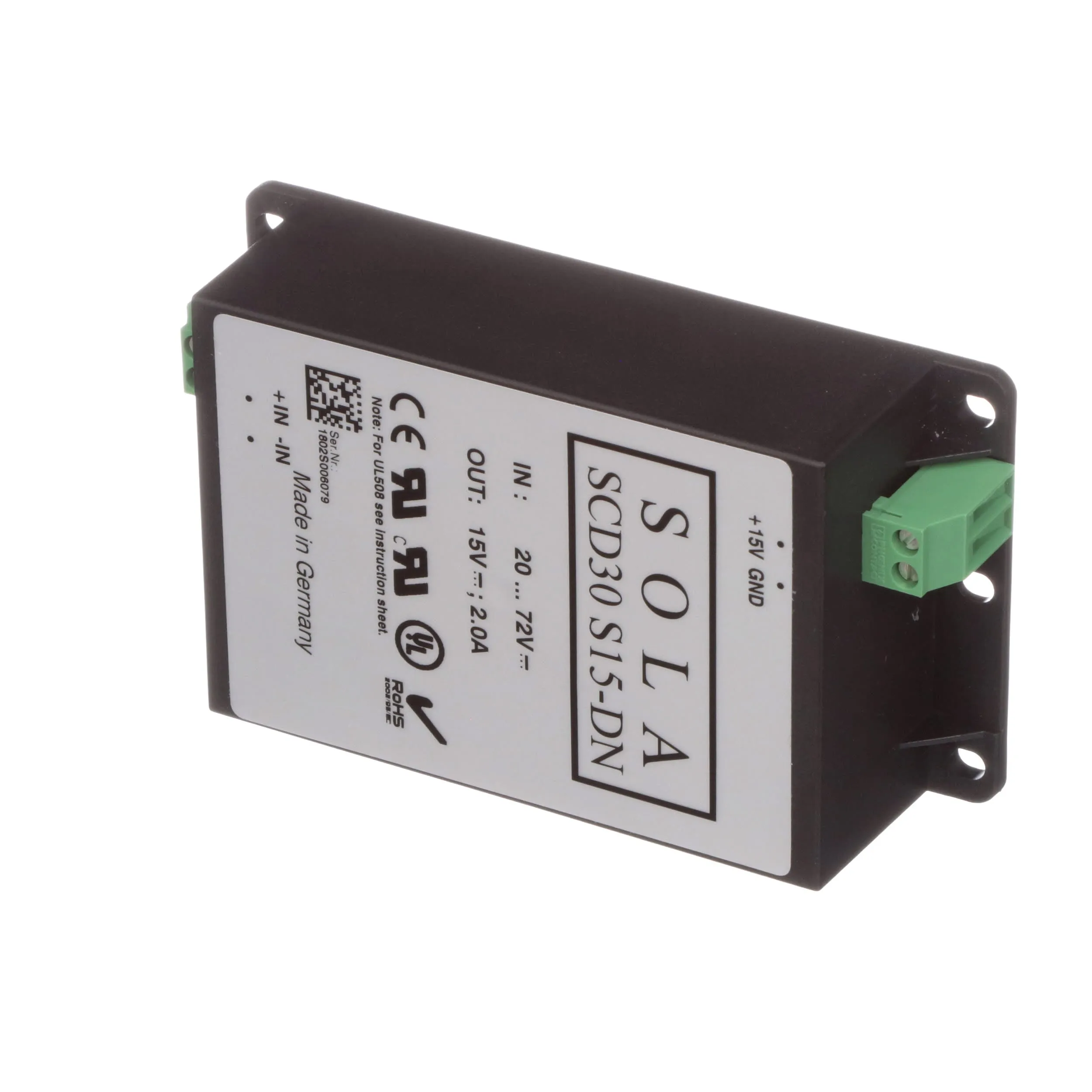

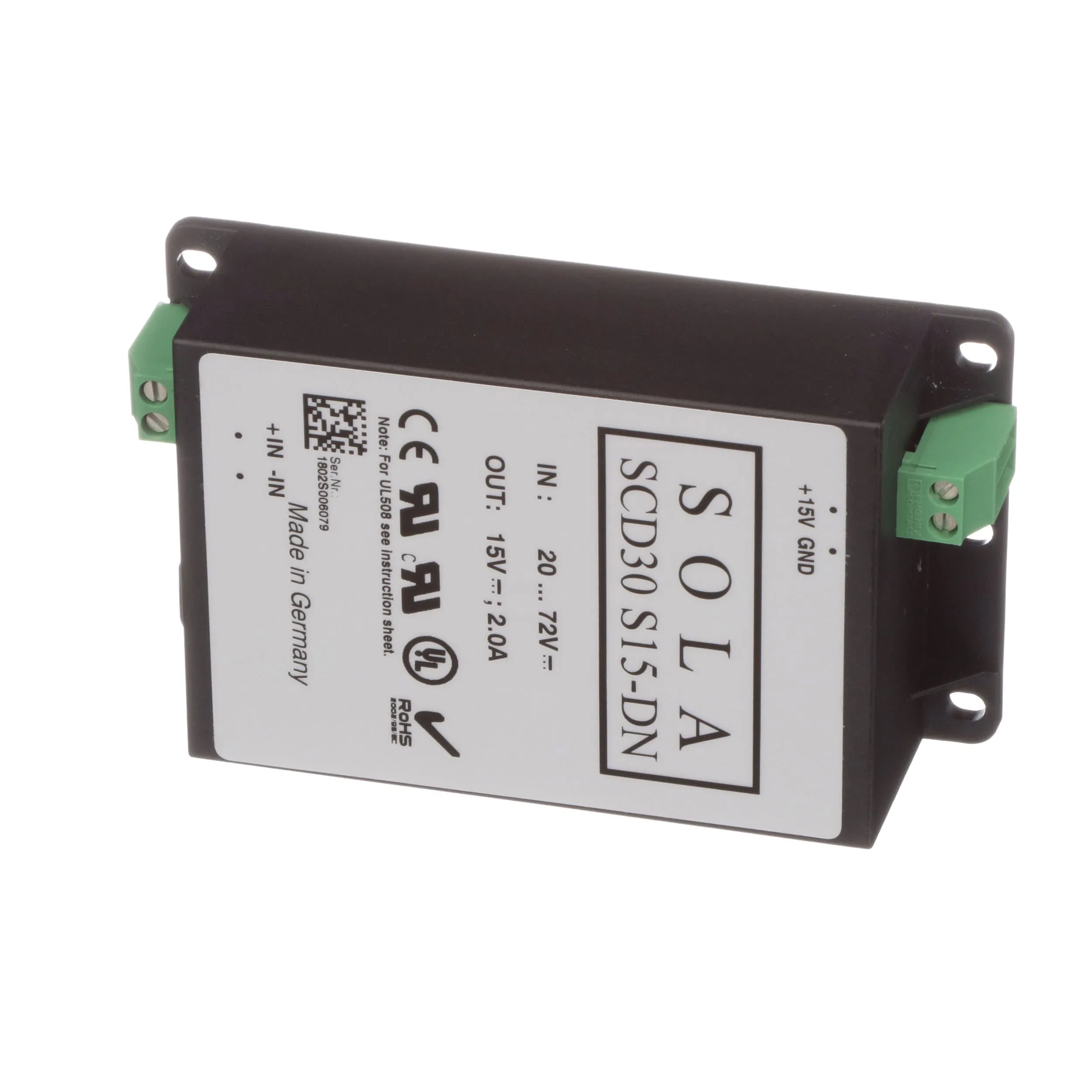

| Product Header | SCD Series Encapsulated Industrial DC to DC Converter |
| Series | |
| Special Features | Compact, High Reliability, Galvanic Isolation, 5-Years Limited Warranty, Overcurrent Protection, IP20 Protection |
| Standards | UL1950, C22.2, CE |
| Temperature Coefficient | 0.01%⁄K |
| Type | Industrial |
| Voltage, Output 1 | 15 VDC |
| Weight | 0.86 lbs. |
Overview
Operating And Storage Temperature -25 to 65°C, Standards UL1950, C22.2, Power Supplies

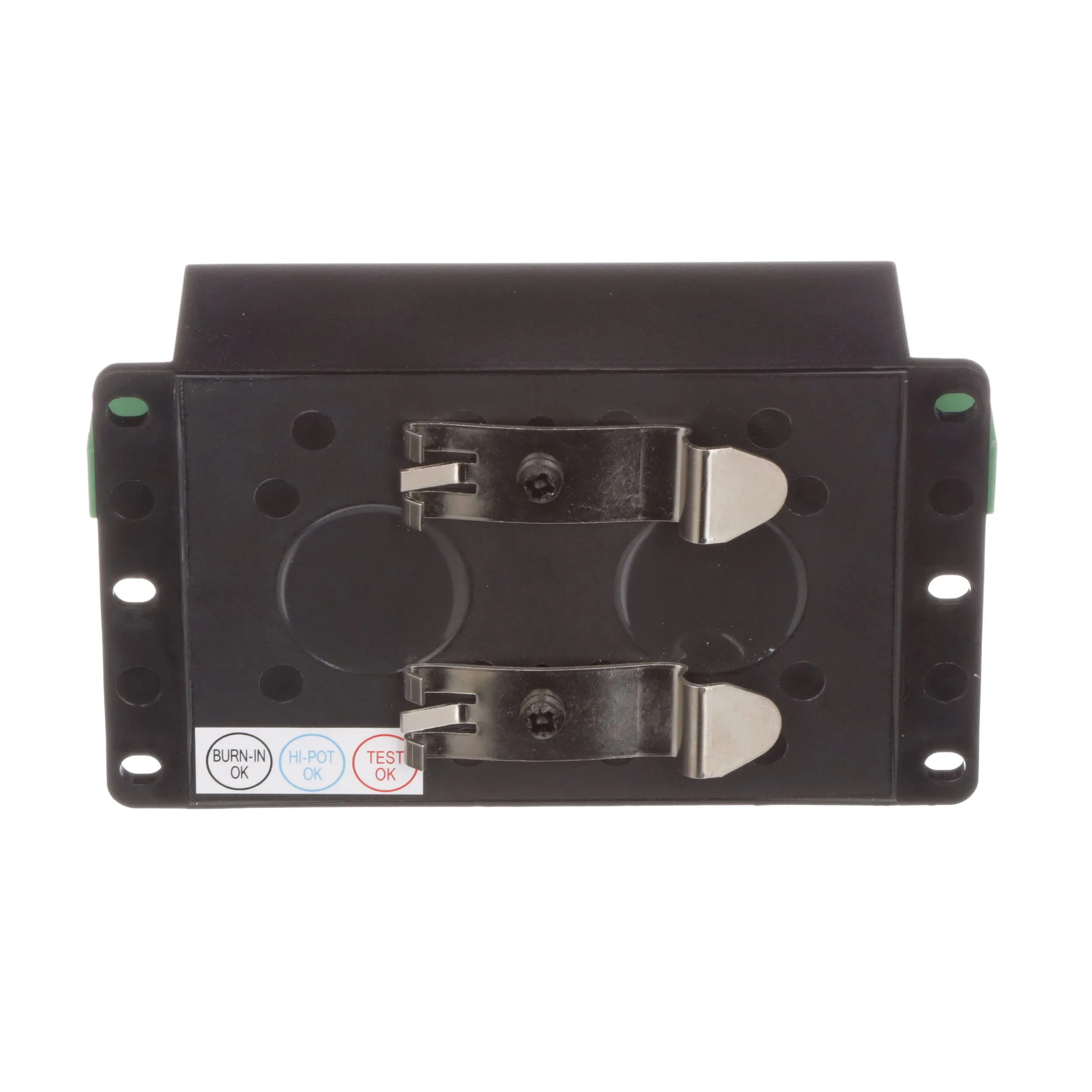

Theses DC to DC converters are compact, rugged power supplies designed to power industrial control instrumentation devices and equipment where AC power is not convenient or accessible. With high reliability and wide input range, these units can operate through the most difficult factory-floor conditions around the globe. "User friendly" applies to these unique power supplies that feature easy-to-install DIN rail and chassis mounting. Terminations are also easy to access (AC and DC terminations are well separated) and simple to wire. Encapsulated design meets IP20 specifications for use in harsh environments.
