Product Details
＋

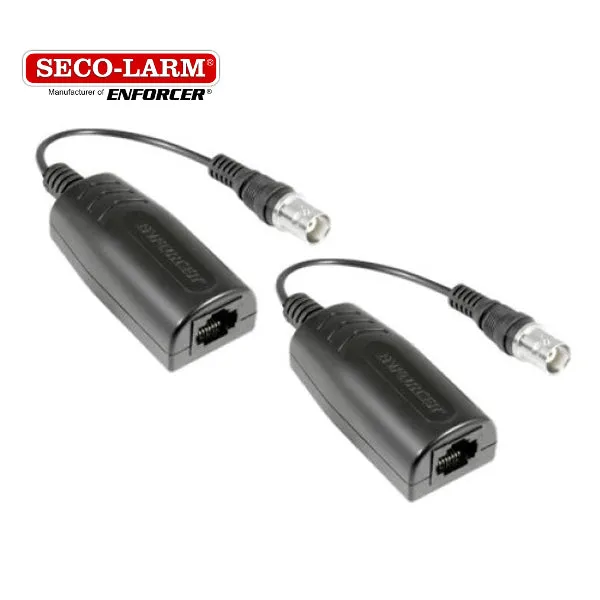

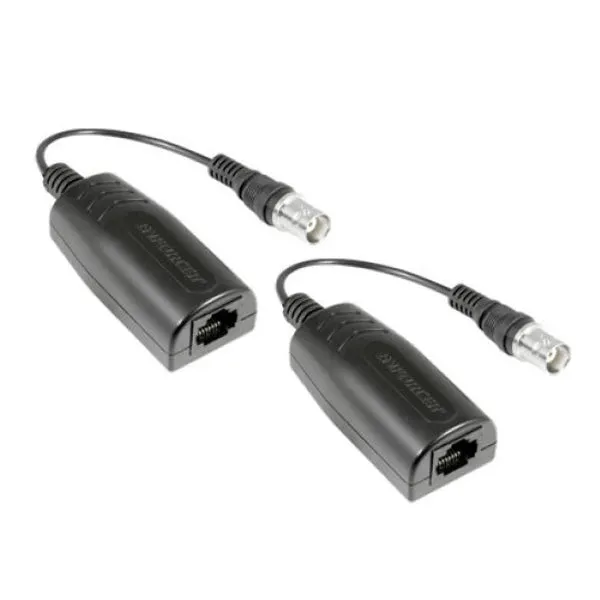

ENFORCER Passive Ethernet Extender over Coax is designed to extend the range of any TCP/IP device beyond the 300ft (100m) limit of Ethernet. The unit does not filter out any protocols, codes, or applications, compatibility with any IP camera and its software.
- 1 Channel Ethernet over coax
- 10/100 Mbps Full duplex*
- Transmission distance:
Up to 650ft (200m)@10Mbps
Up to 325ft (100m)@100Mbps - Passive, no power required
- Built-in surge protection
- Fast and easy to install
- Bidirectional – can operate as transmitter and receiver
Specifications
| Range | 10Mbps Up to 650' (200m), 100Mbps Up to 325' (100m) |
| Input Connector | RJ45 |
| Output Connector | BNC |
| Standard | IEEE802.3 10Base-T/100Base-T |
| Link Cable | RG59/U or better |
| Ethernet Speed | 10/100 Mbps |
| Operating Temperature | -4º~131º F (-20º~55º C) |
| Dimensions | 2-3/8” x 1-1/8” x 13/16” (60 x 29 x 20 mm) |
