Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | Q14P1CXXHG110E |
| Color | Green |
| Current Rating | 6 mA |
| IP Rating | IP67 |
| Lamp Size | 10 mm |
| Lamp Type | LED |
| Length | 1.515" (38.5mm) |
| Life | 100000 hrs. |
| Mounting Hole Size | 0.55 in. |
| Mounting Type | Threaded |
| Shop By | Factory Choice |
| Standards | UL |
| Supply Voltage | 110 VAC |
| Temperature Rating | -40 to 85 C |
| Termination | Solder |
| Type | General Purpose |
| UPC Code | 5056112213390 |
| Voltage Rating | 110 VAC |
| Warranty | 3 Year Warranty |
Overview

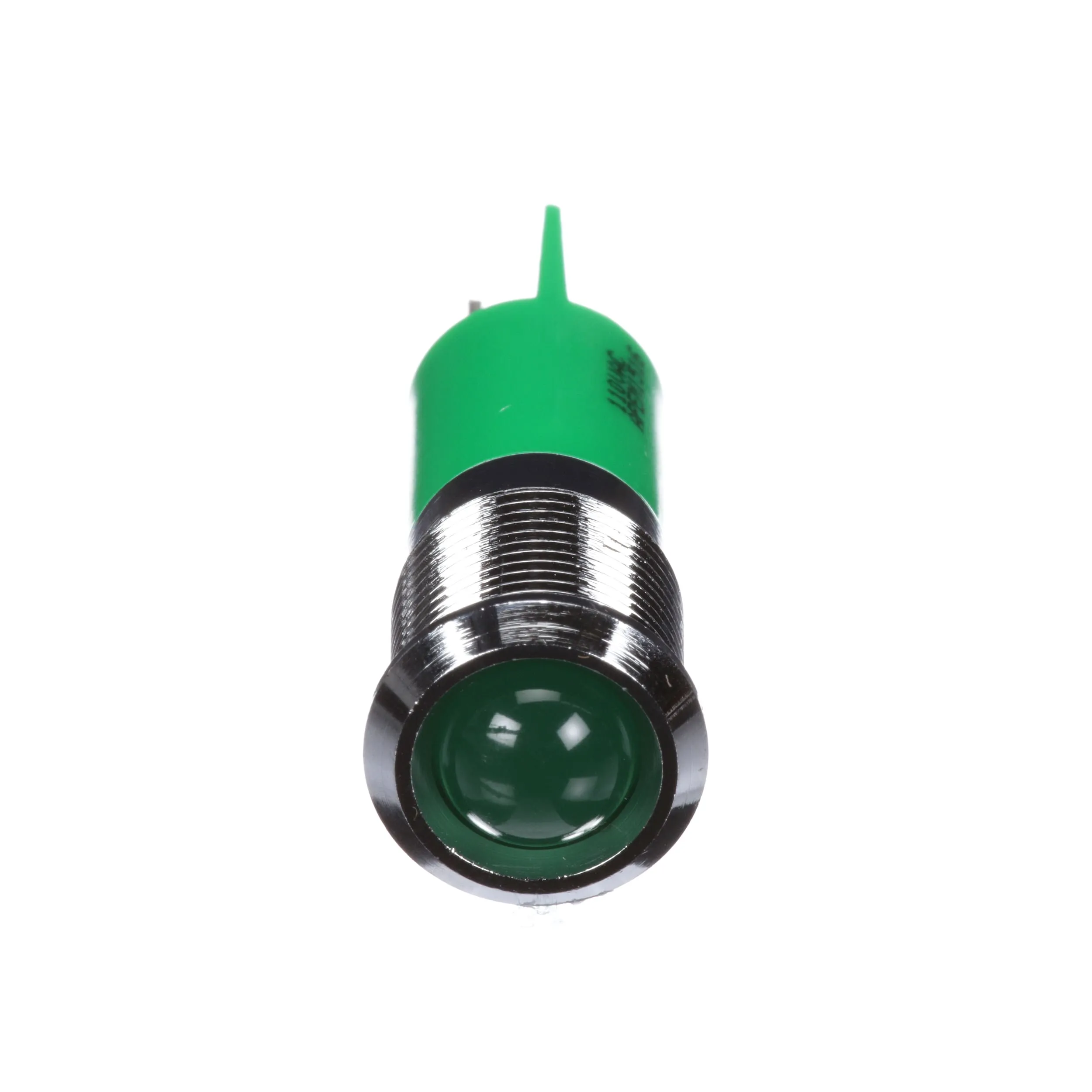

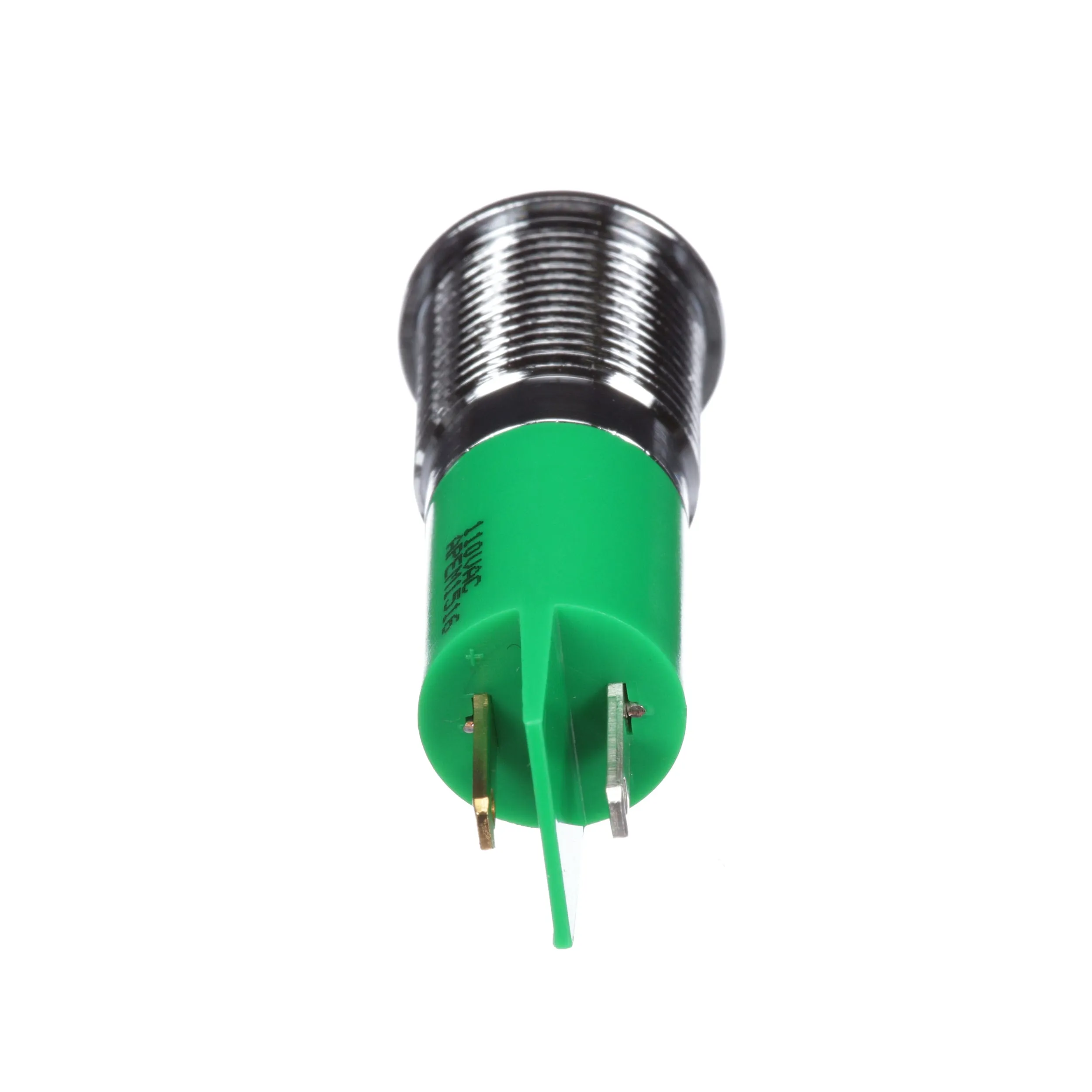

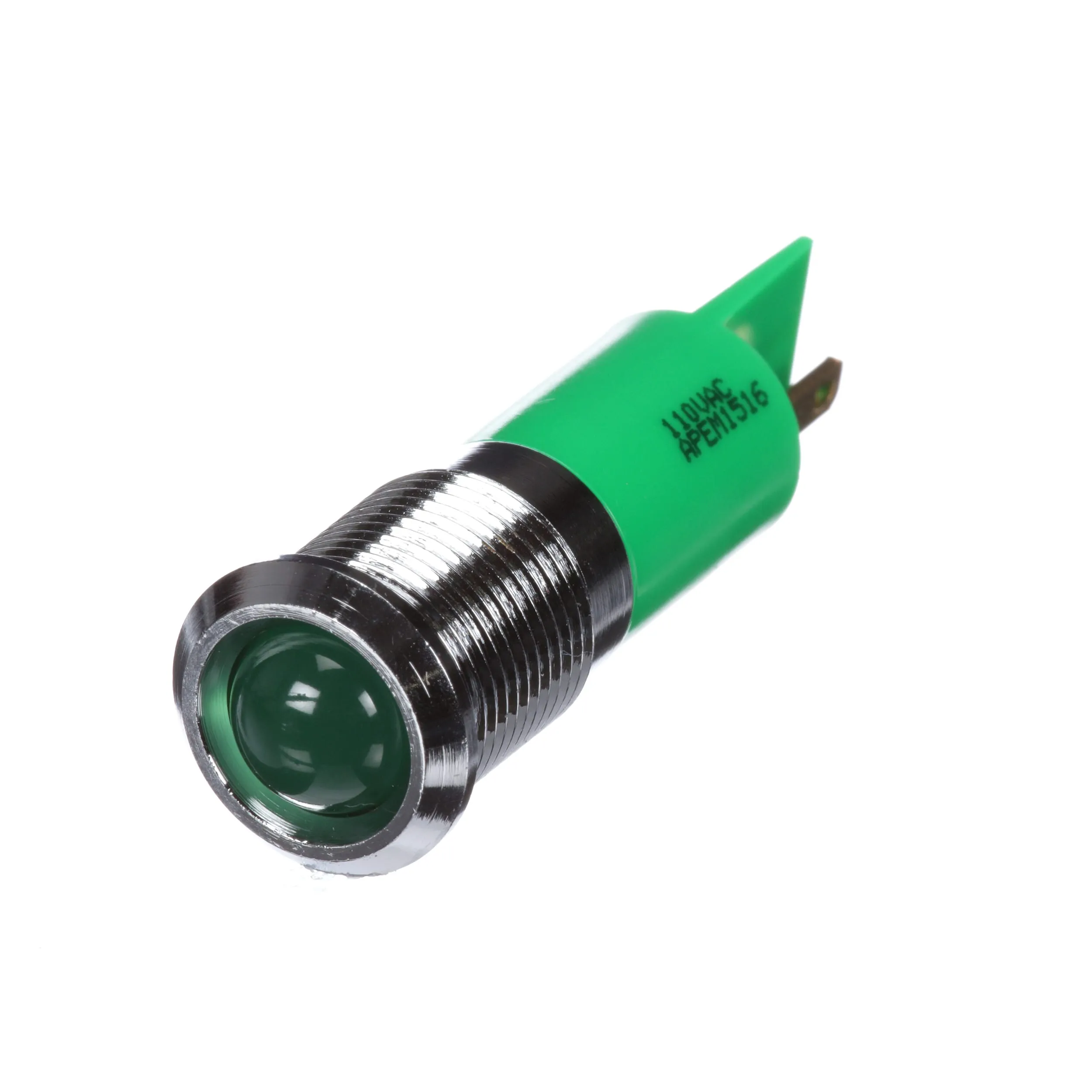

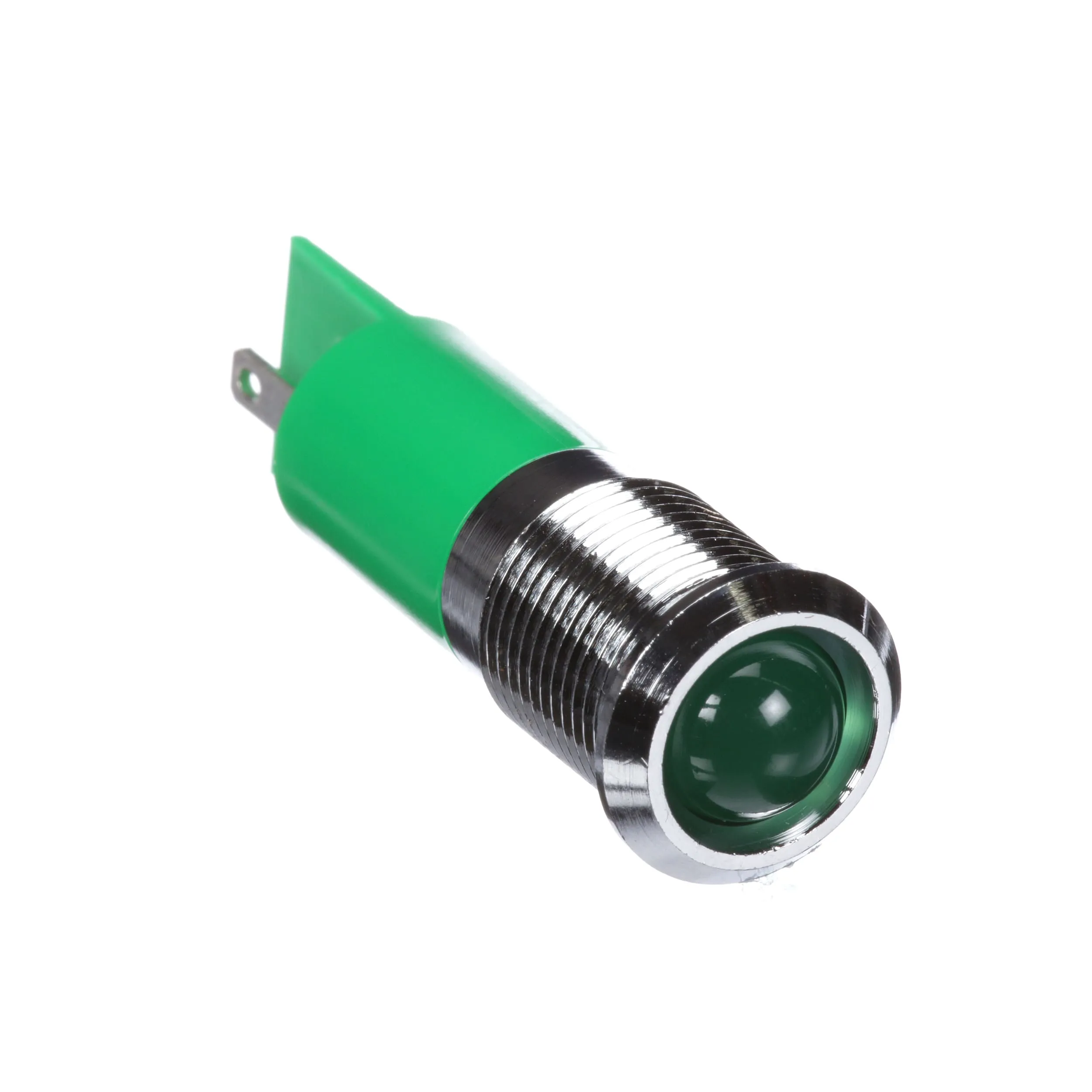

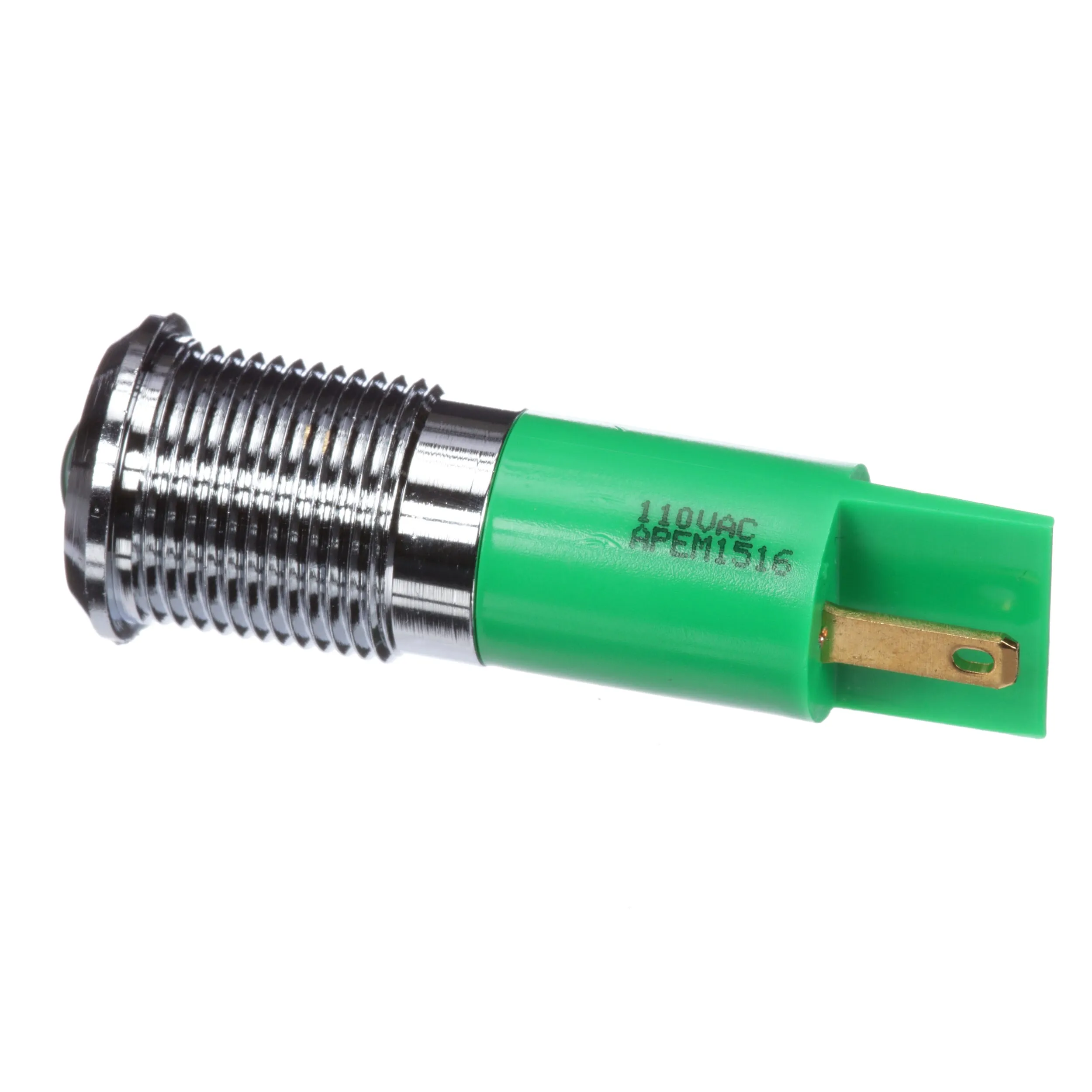

LED Indicators, 14mm Mount, Hyper-Bright, 110V & 230Vac
RS 14mm panel mount hyper bright LED indicators, with 10mm Colored diffused epoxy lens, available in prominent or flush bezel styles. Applications they are typically used in include: process controls, professional electrical appliances, communication, radars, civil engineering vehicles, trucks, diggers, cranes, trains, HVAC, energy management applications, lifts and machine tools.
IP67 sealed
High brightness
Prominent and flush bezel styles
Bright or black chrome bezel finish
