Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | Q8F1CXXHR24E-X0350 |
| Color | Red |
| Current Rating | 20 mA |
| IP Rating | IP67 |
| Lamp Size | 5 mm |
| Lamp Type | LED |
| Length | 1.131" (28.75mm) |
| Life | 100000 hrs. |
| Mounting Hole Size | 8 mm |
| Mounting Type | Threaded |
| Shop By | Factory Choice |
| Standards | UL |
| Supply Voltage | 24 VDC |
| Temperature Rating | -40 to 85 C |
| Termination | Solder |
| Terminator Type | Faston, Solder Lug |
| Type | General Purpose |
| UPC Code | 5056112205593 |
| Warranty | 3 Year Warranty |
Overview
LED Indicators, 8mm Mount, Low Current, Reverse Protection, 12 & 24Vdc

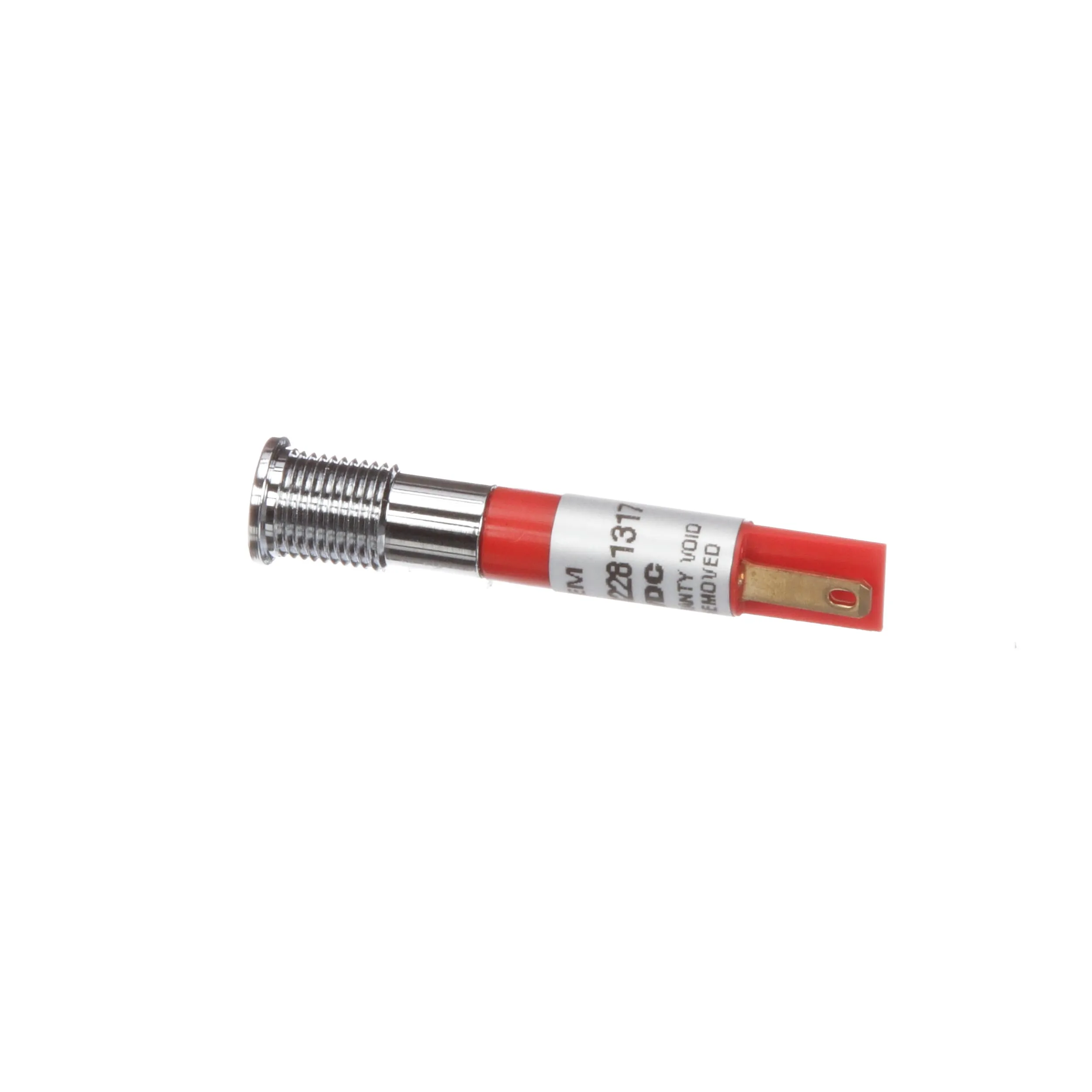

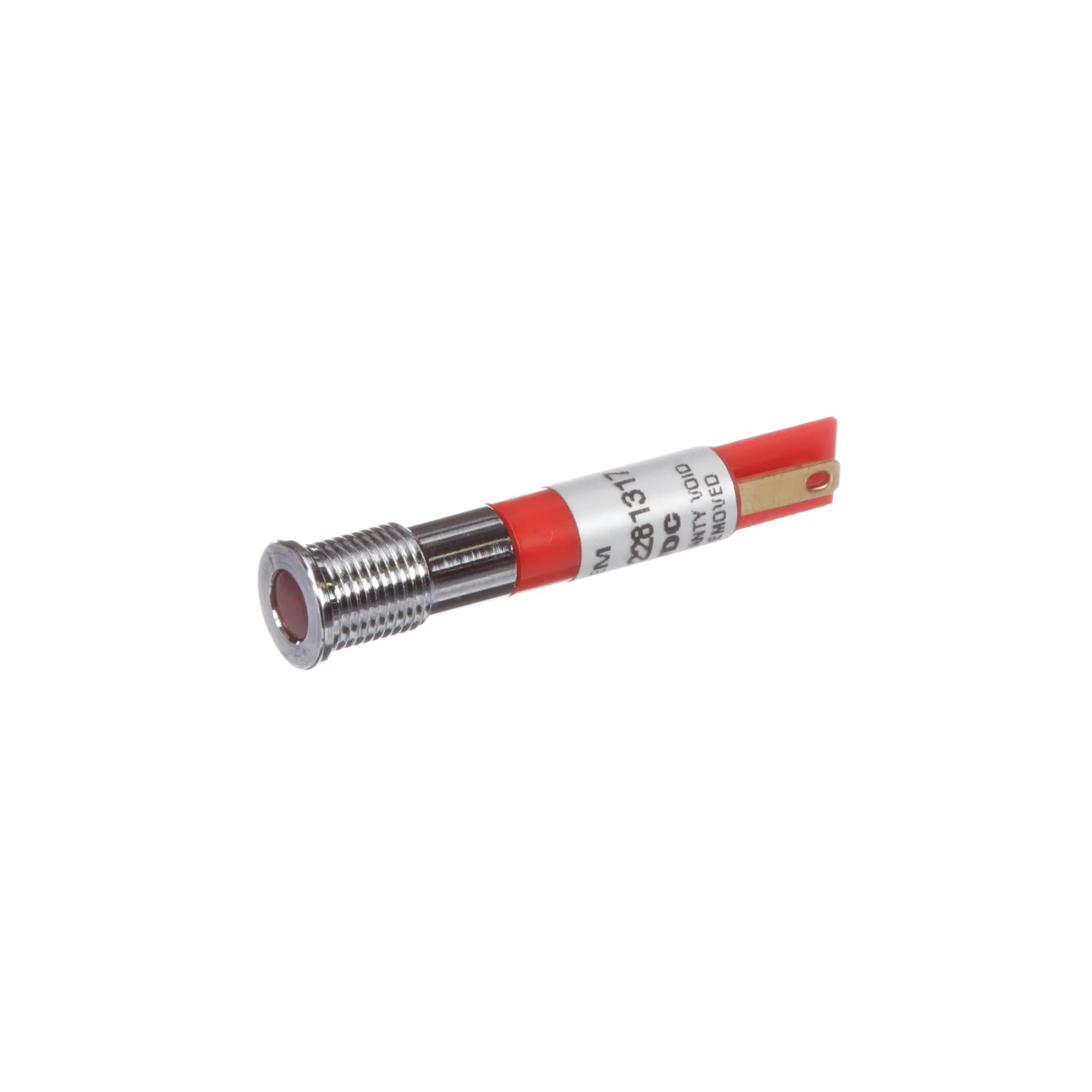

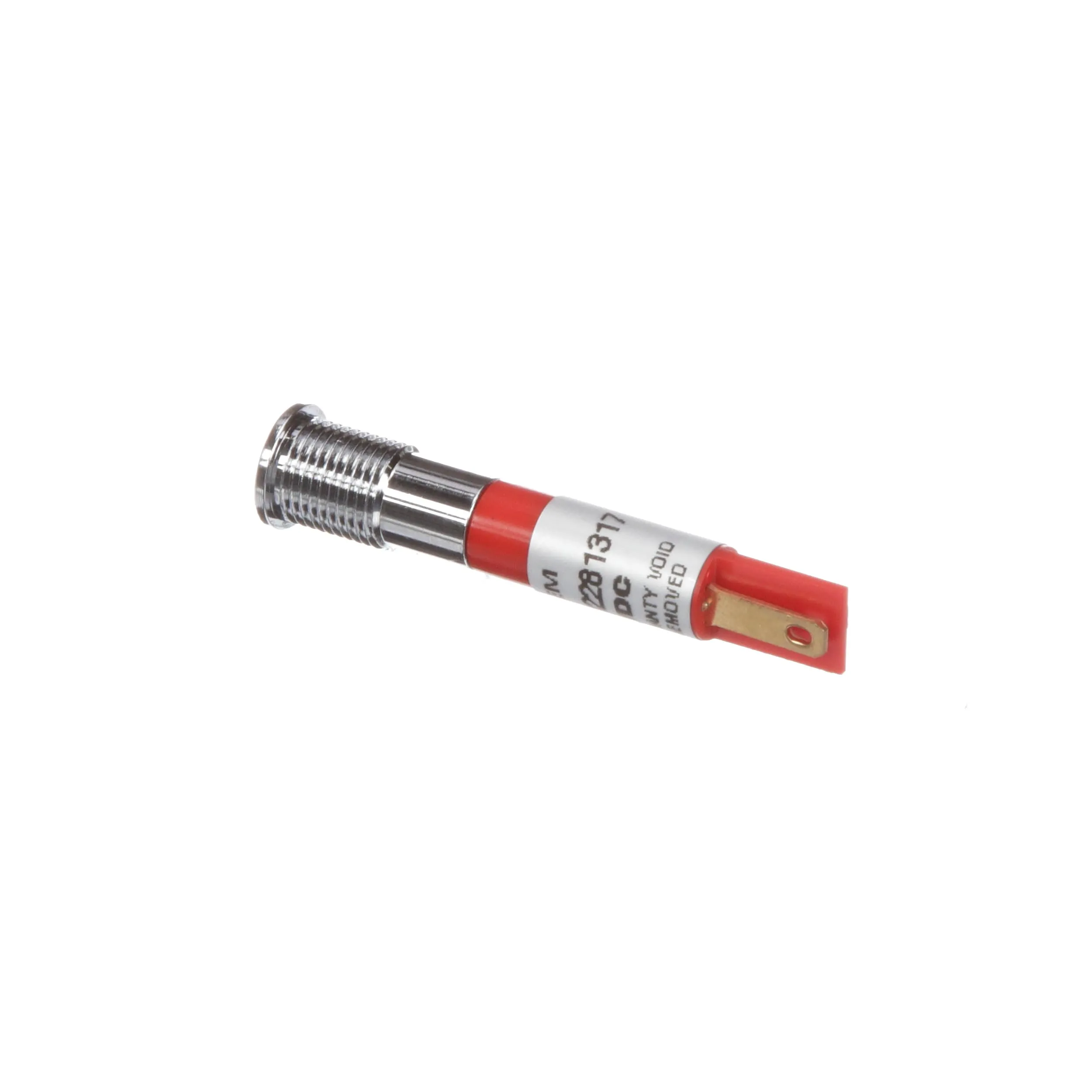

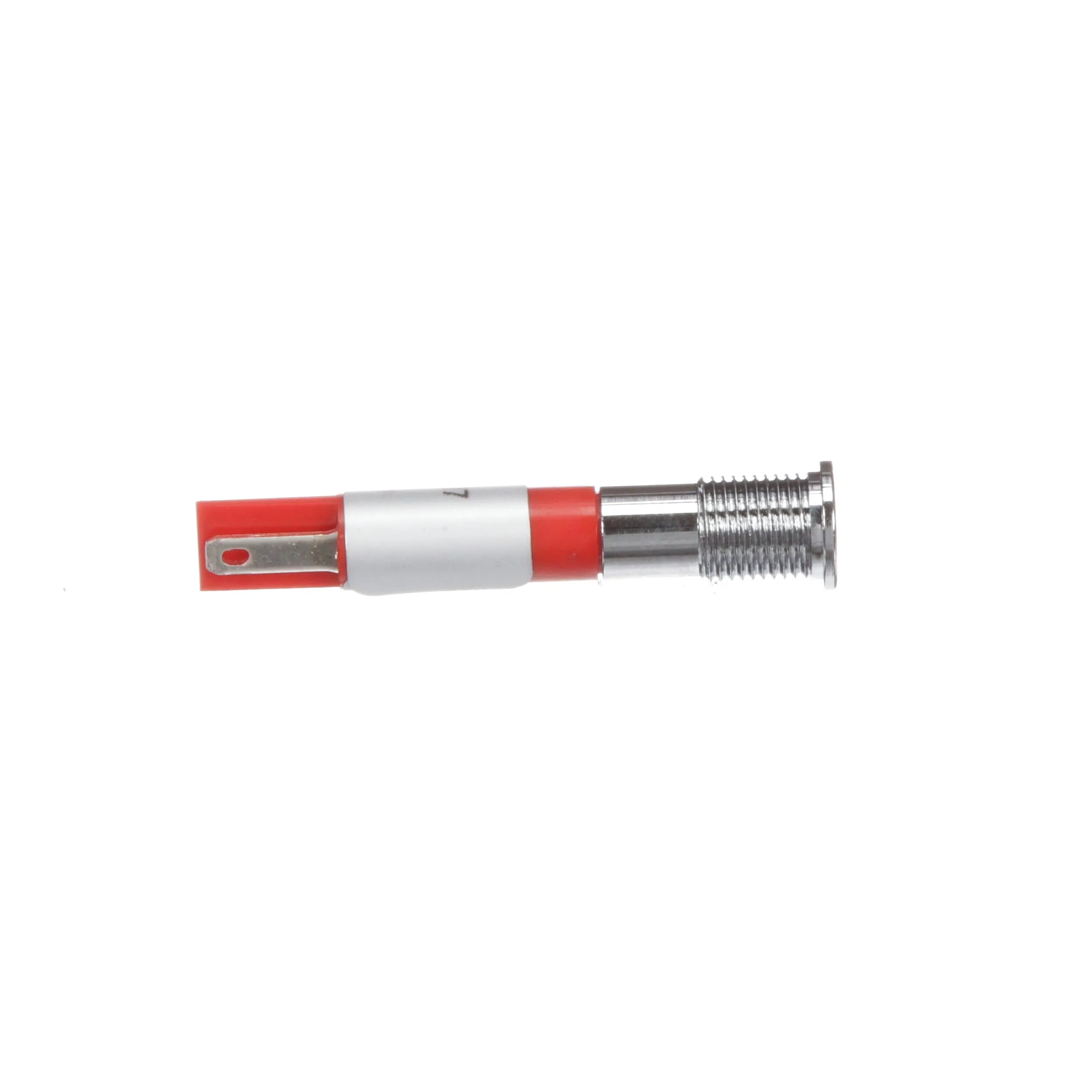

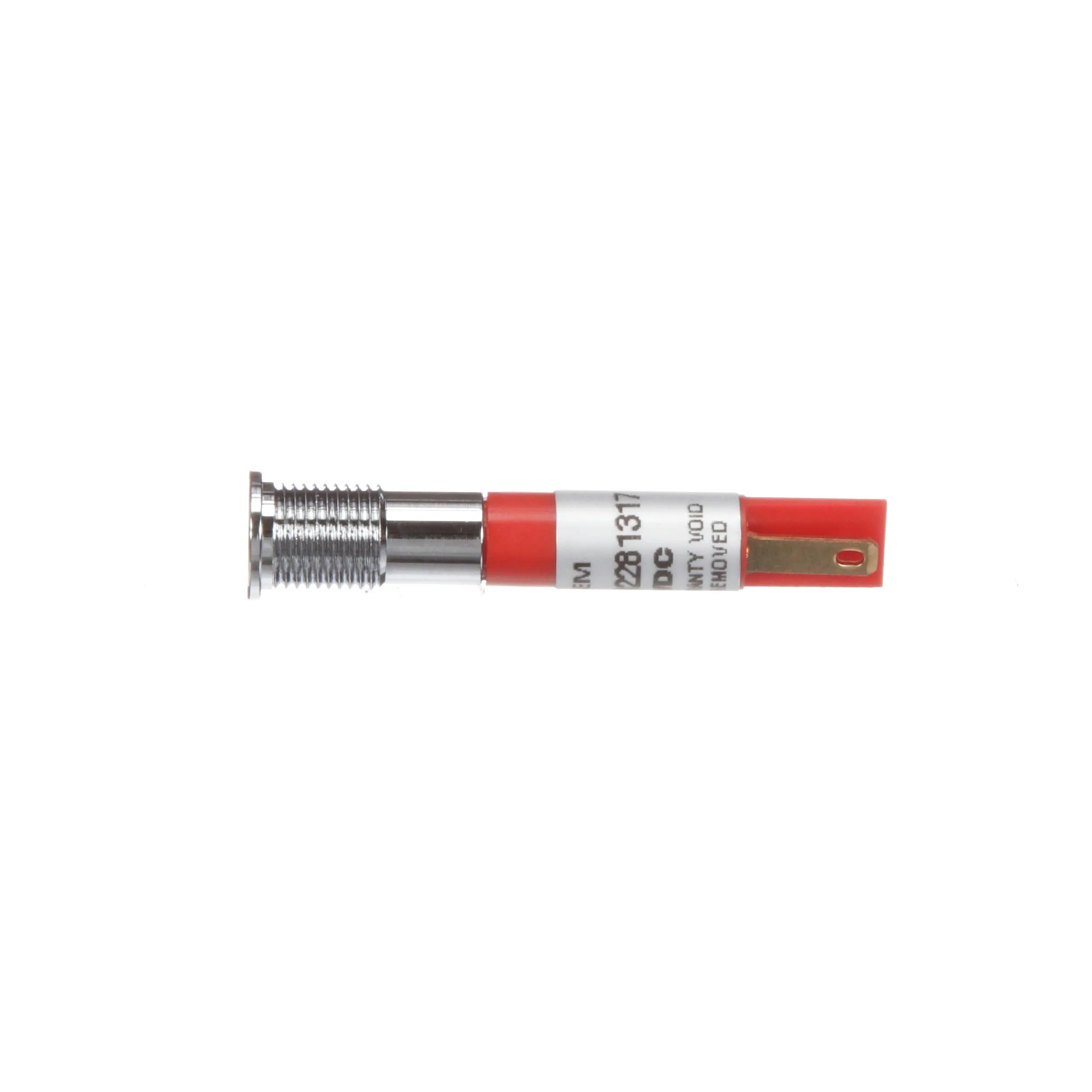

RS 8mm panel mount LED indicators, 5mm Colored diffused epoxy lens, are fitted with a reverse protection diode and flush bright chrome bezel finish. Suitable for a wide variety of applications including medical, telecommunication, engineering, transport systems, special vehicles and agricultural vehicles.
IP67 sealed
Low current: 1mA (approx)
High luminosity
Flush bright chrome bezel
