Name: Red Lion Controls MLPS2000
SKU: 1641731

Product Details ＋

Product Attribute	Attribute Value
For Use With	CUB4, CUB5, DT8 Panel Meters
Includes	High Impact Black Plastic, Mounting Hardware
Maximum Operating Temperature	60°C
Minimum Operating Temperature	0°C
Mounting Type	Panel Mount
Power Source	85 to 250 VAC
Primary Type	AC-DC
Series
Standards	UL Recognized, CSA Certified, IEC Certified
Supply Voltage	24 VDC
Temperature Operating Range	0 to 60°C

Overview

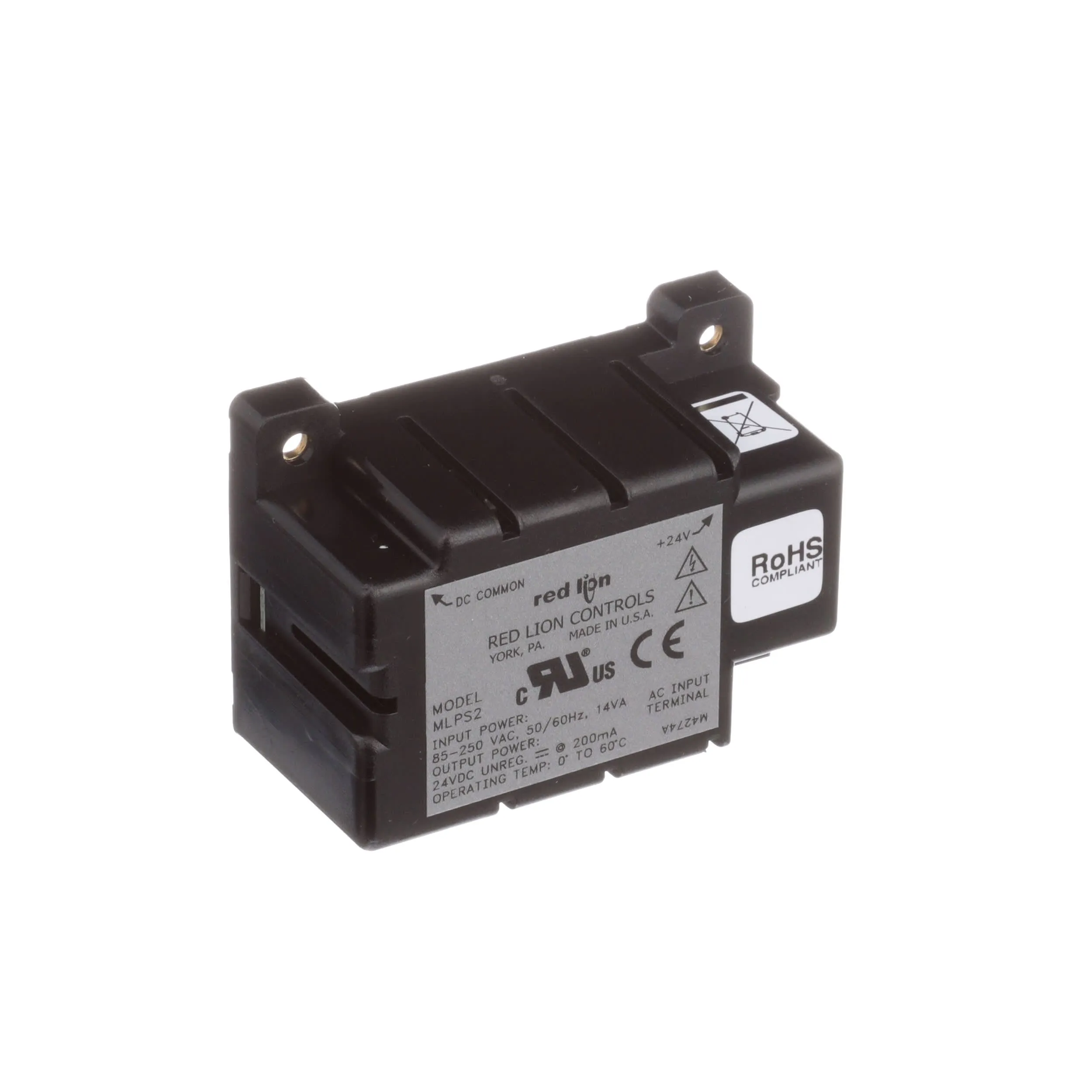

The MLPS is a DC Power Supply for Red Lion miniature panel meters. The supply is designed to attached to the rear of a CUB4, CUB5 or DT8 meter. It will supply power for the meter and if it needs current for sensors that may be connected to the meter. Two versions are available, a 12 VDC model with 400 mA of current and a 24 VDC model with 200 mA.

Specifications:

MLPS1 — 12 VDC @ 400 mA

MLPS2 — 24 VDC @ 200 mA
