Product Details
＋
SpeedyBee Flying Tower F405 V3:
Flight Controller: The F405 likely refers to the STM32F405 microcontroller, a popular choice in flight controllers for drones. It handles sensor data and controls the motors to stabilize the drone.Version 3 (V3): Indicates a specific version of the flight controller. Newer versions may bring improvements or additional features over previous ones.
Integrated Design: "Flying Tower" usually suggests an integrated design, possibly combining the flight controller with other components for a cleaner and more compact setup.
50A F4 Flying Tower Flight Control ESC:
ESC (Electronic Speed Controller): Controls the speed of the motors by regulating the electrical current to them. The "50A" rating indicates its maximum current-handling capacity, suitable for drones with higher power requirements.F4: Suggest the use of an F4 microcontroller, similar to the flight controller, for efficient processing.
Bluetooth Adjustment: This feature allows you to adjust settings on the flight controller or ESC wirelessly using Bluetooth. It can be a convenient way to make changes to your drone's configuration without needing a direct physical connection.
FPV Traveling Drone: The setup is designed for First Person View (FPV) flying, where a camera on the drone provides a live video feed to the pilot. FPV flying is popular for a more immersive and dynamic flying experience.
Technical Details
- Power supply:LP2985-3.3.
- Port: MUX (UART0, UART2, mnnI2, and OSD are optional, OSD is the defaulted output).
- Input Voltage (V):12~16 VDC
- Sensors:3-Axis Gyrometer, Accelerometer, High-performance Barometer
- Processor:ATMEGA2560 and ATMEGA32U-2
- Micro-SD Card Slot: No
Features
- F405 V3 Flight Controller
- Built-in Barometer
- Micro SD Card Slot for Blackbox
- Onboard LED battery indicator
- 4 x full UARTs 1 x half UART (RX4)
- 8 Motor outputs (ESC signals)
- Dedicated DJI Air Unit JST connector
- Built-in Bluetooth for wireless configuration via the Speedybee App 50A 4-in-1 ESC
- Large motor pads for easy soldering
- Smooth flight experience
- 1500uF ESR Capacitator
- TVS diode

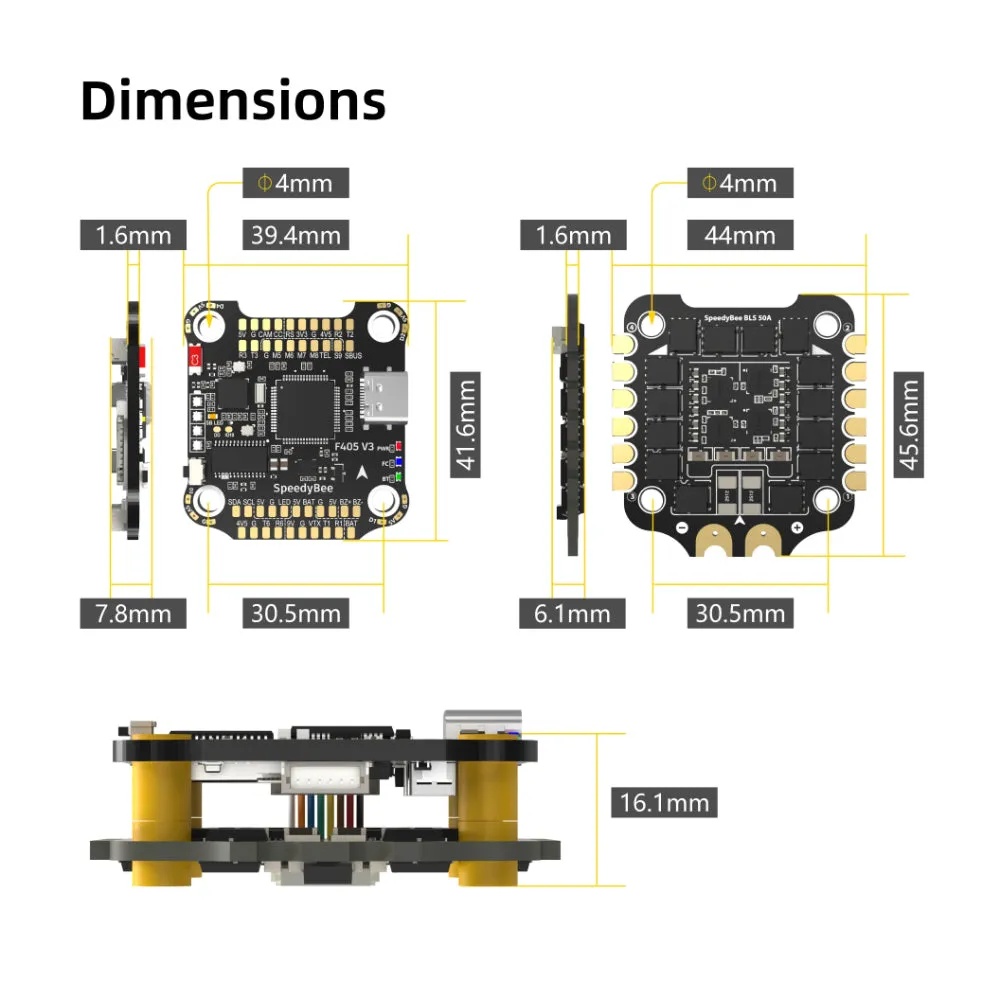

Physical Attributes
- Dimensions (mm) LxWxH: 70 x 45 x 15
- Weight (gm): 91
Product Video

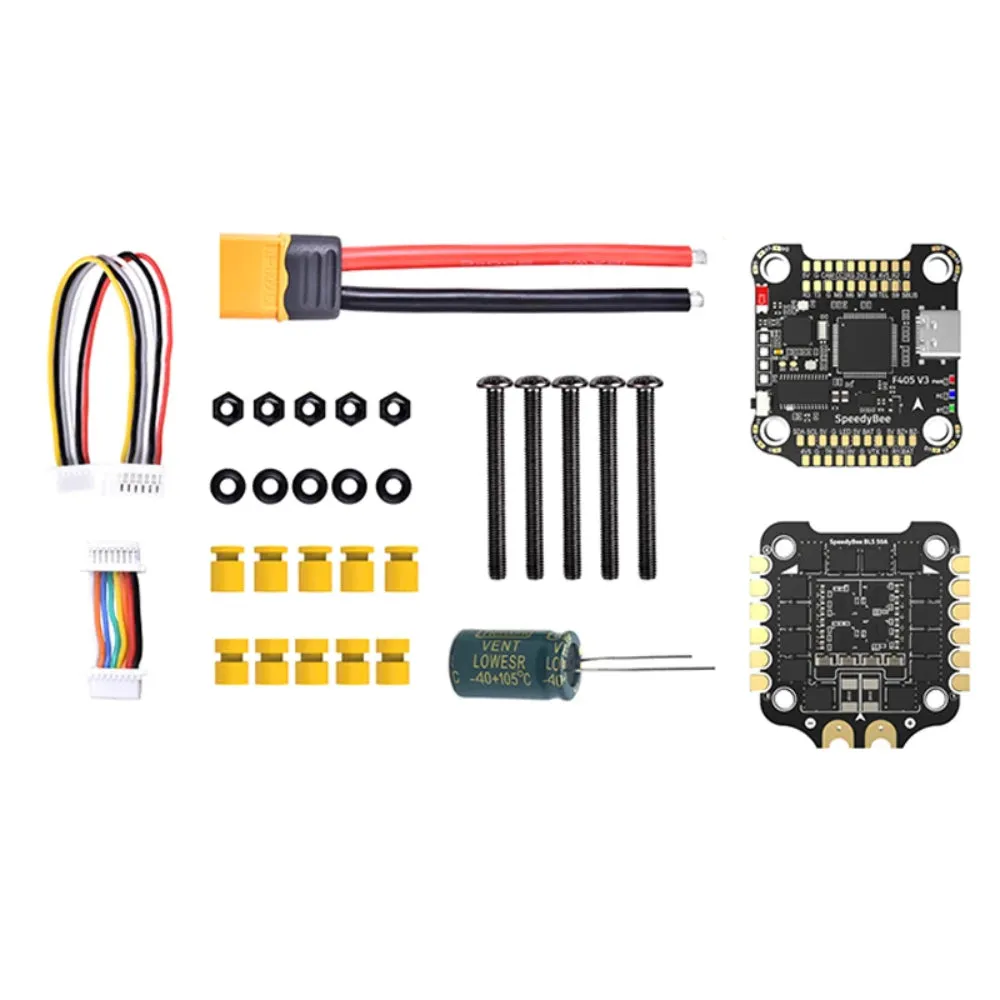

Package Includes
- 1x Speedybee F405 V3 FC
- 1x 50A BLHeli_S 4in1 ESC
- 5x M3 30mm steel hex screws
- 5x M3x8mm Silicone Grommets(for FC)
- 5x M3x8.1mm Silicone Grommets(for ESC)
- 5x M3 Silicone O Ring
- 1x SH 1.0mm 30mm-length 8pin cable (for FC-ESC connection)
- 1x 6pin cable(80mm) for DJI Air Unit / Vista
- 1x 35V 1500uF Low ESR Capacitor
- 1x XT60 Power Cable(70mm)
