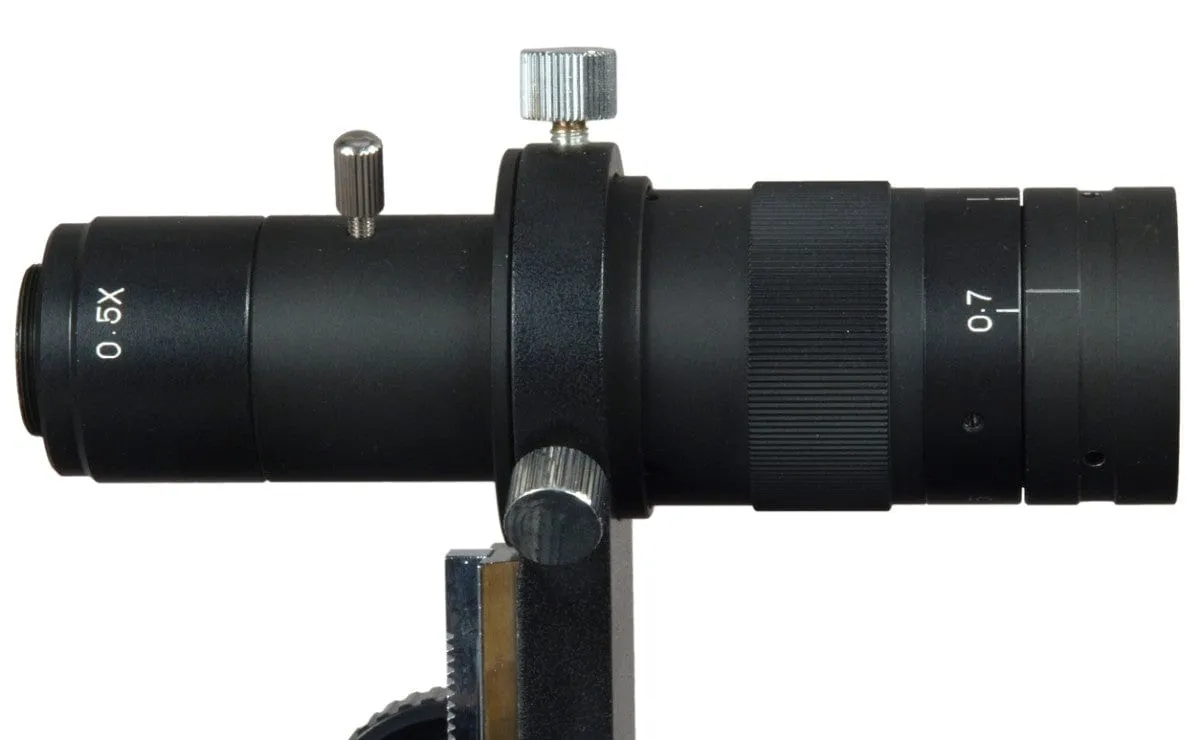

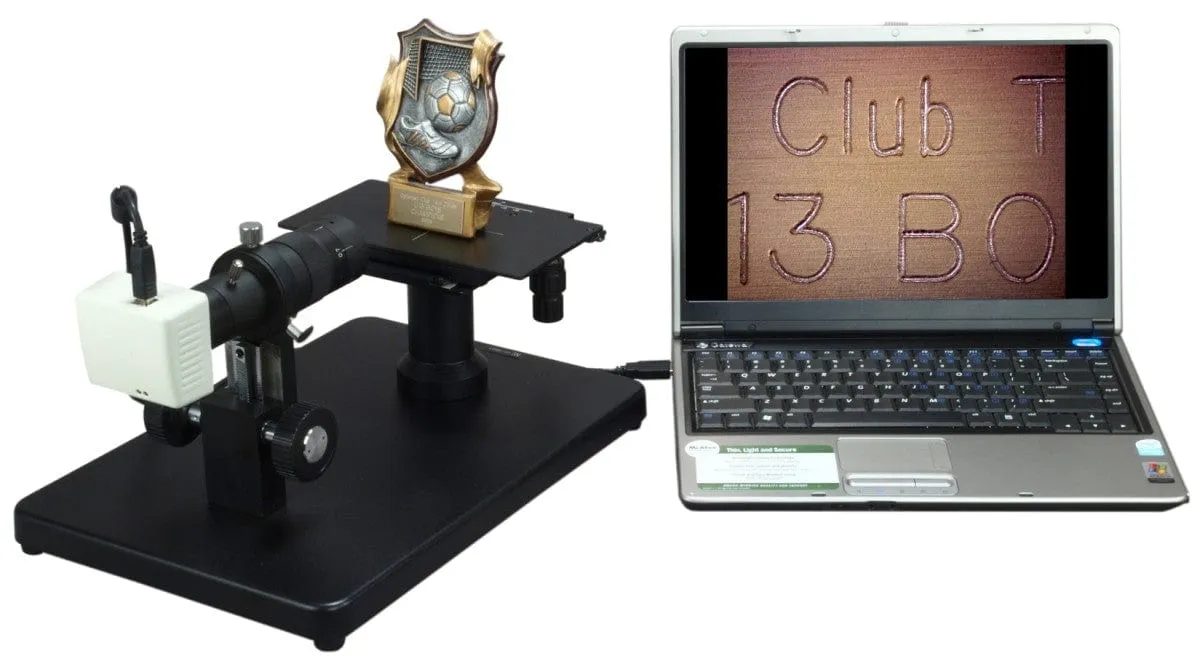

The H745L provides a unique solution for inspection applications which require a different view. The 0.7X-4.5X zoom objective lens is mounted horizontally to view objects which cannot be laid flat, or would simply benefit from being viewed laterally. The microscope is designed for use with C-mount cameras, making it perfect for capturing photos or videos using our wide range of microscopy cameras. A built-in 0.5X reduction lens optimizes the field of view for 1/2” format cameras.

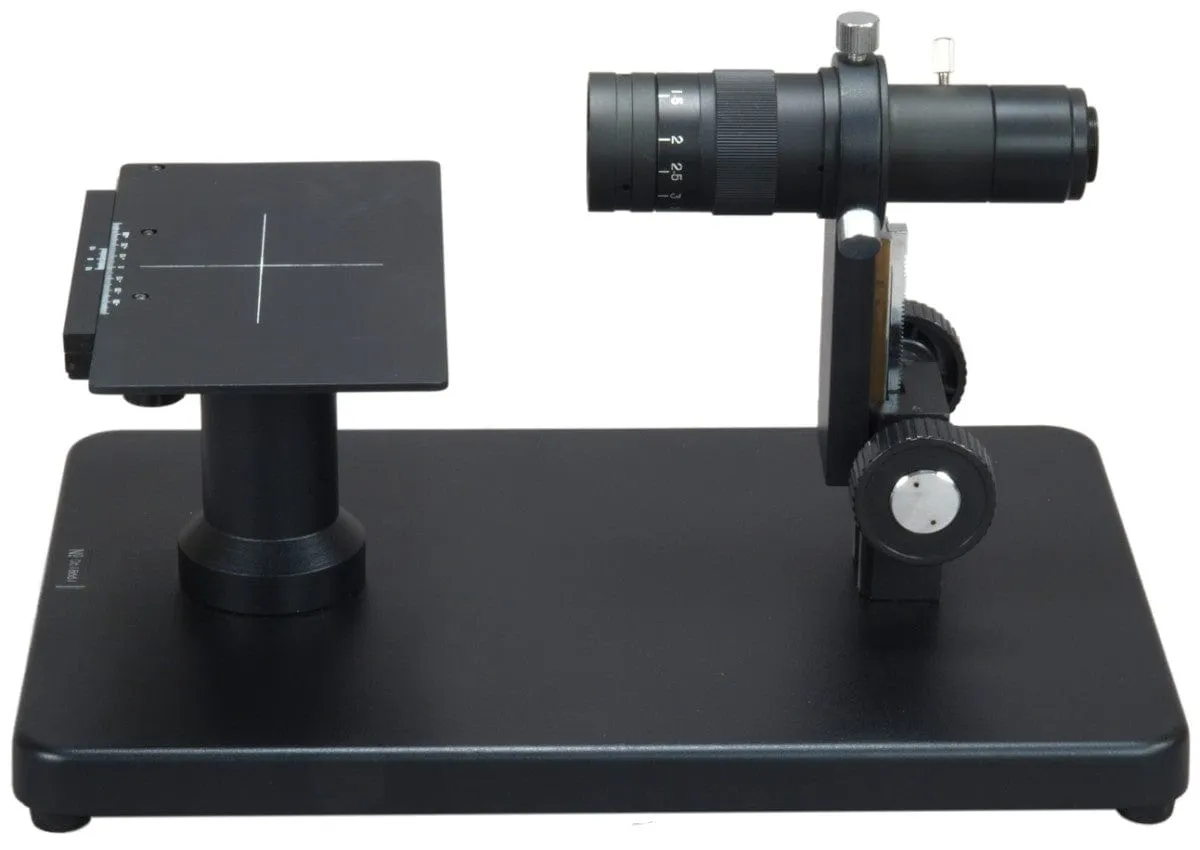

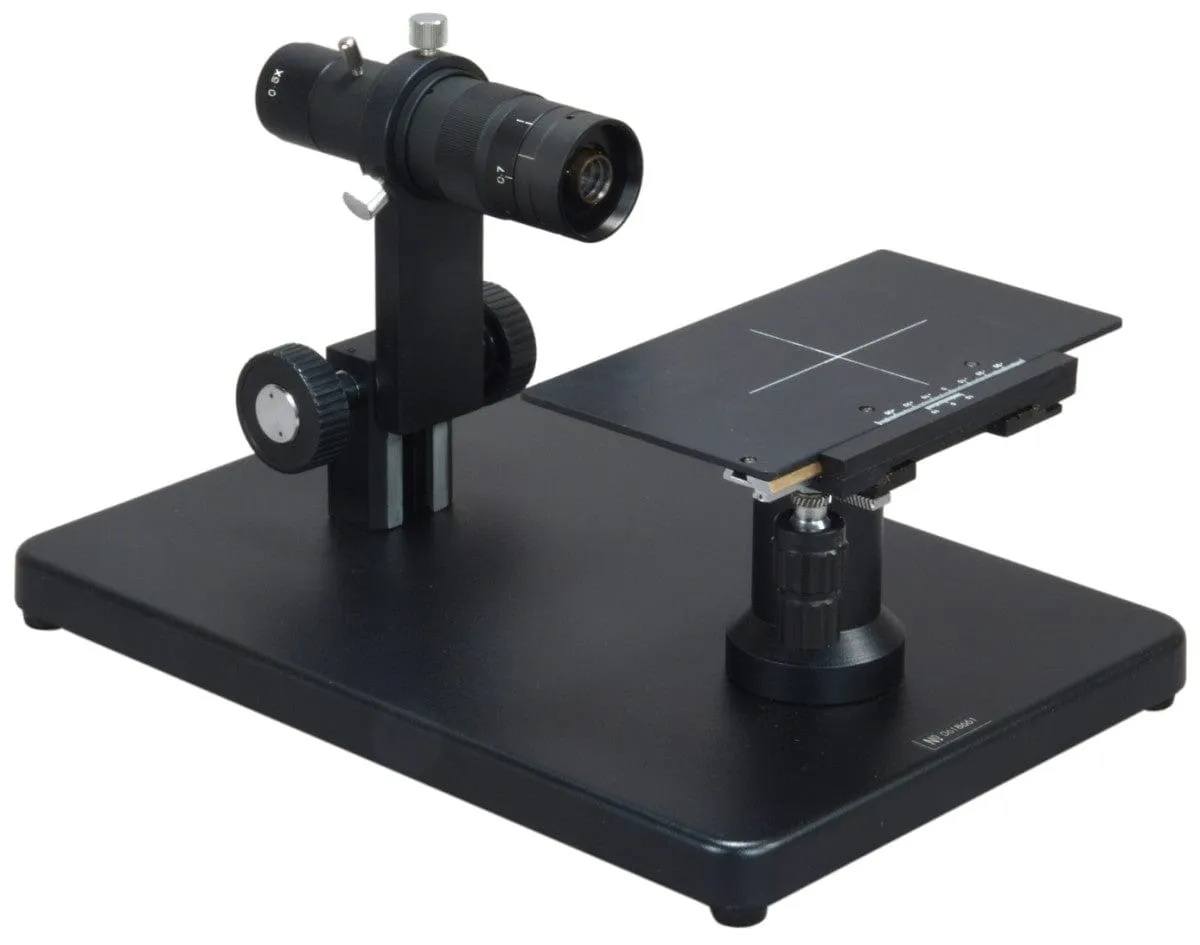

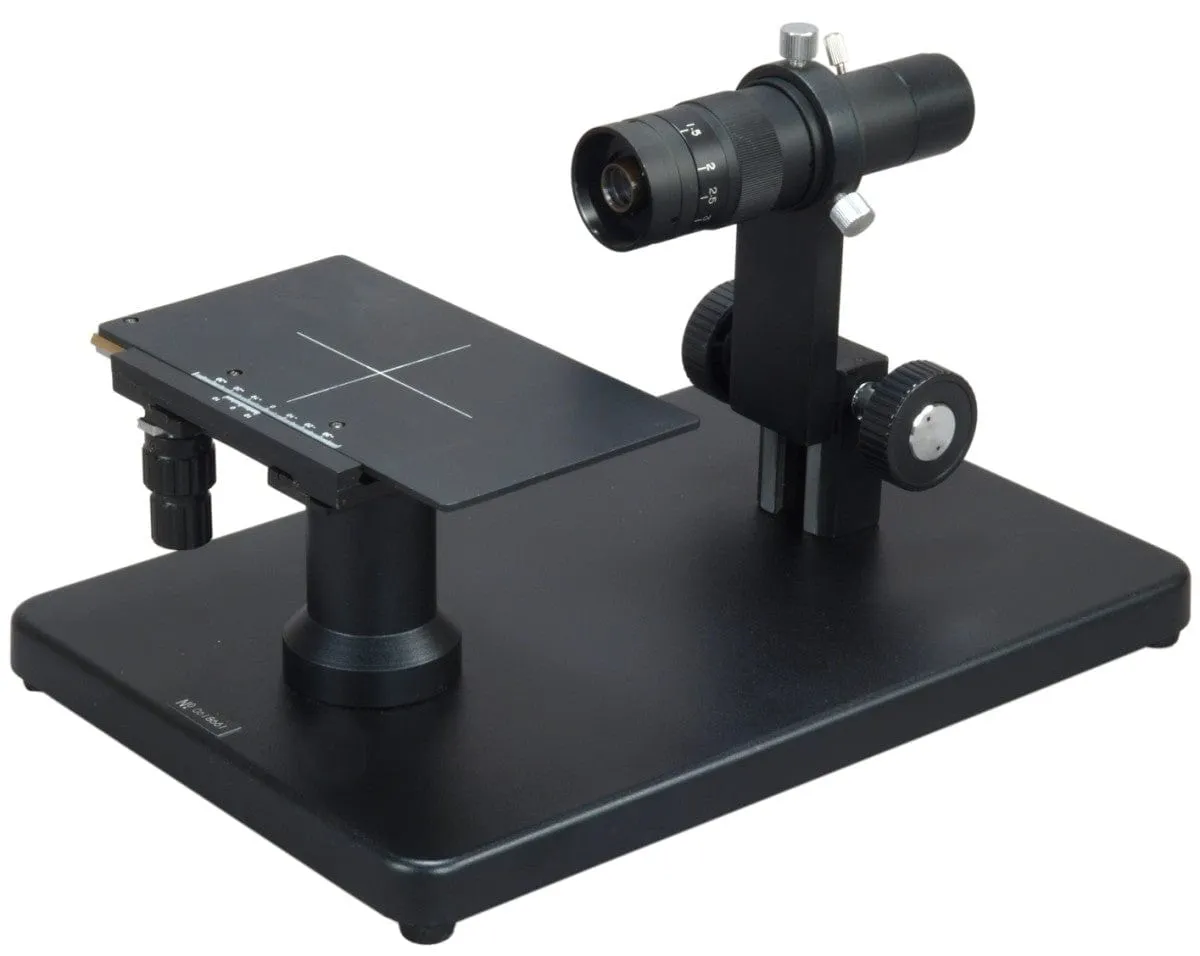

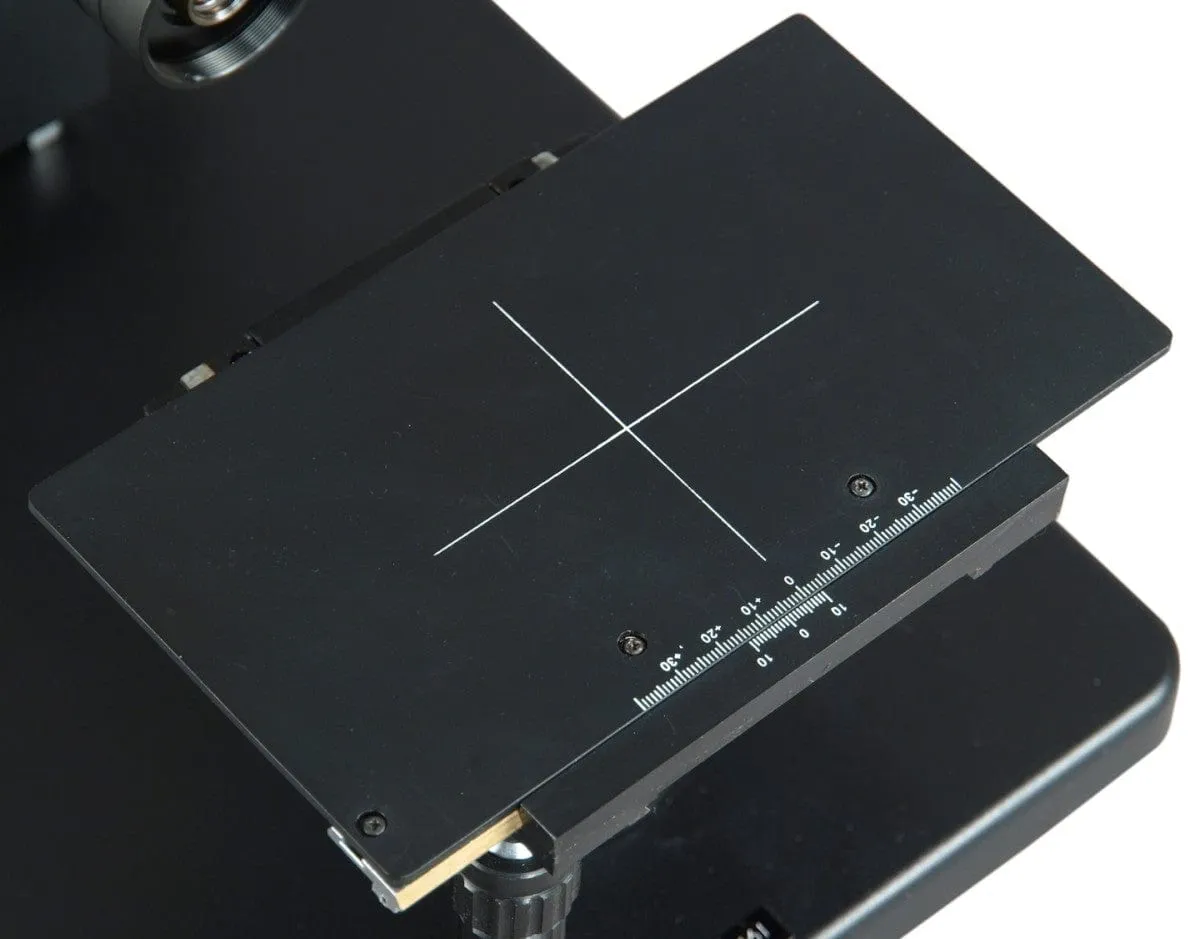

To complement the precision optics, mechanical movement allows for precision positioning of the lens and the subject. Symmetrical knobs allow you to adjust the height of the lens, and a 2-layer mechanical stage provides precision control over the subject’s position.
The unique orientation of the lens and stage allow for virtually any lighting scenario. Illuminators can be used from the front, rear, or any side to provide optimal lighting to bring out the necessary details.
Specifications
| Optical System | Finite-conjugate |
| Working Distance | 95mm |
| Objective | 0.7X-4.5X continuous zoom |
| Camera Mount | C-mount, 0.5X integrated reduction |
| Stage Design | Double-layer mechanical |
| X-Y Translation Range | 70mm x 32mm |
| Stand Base Dimensions | 38cm x 26cm |
