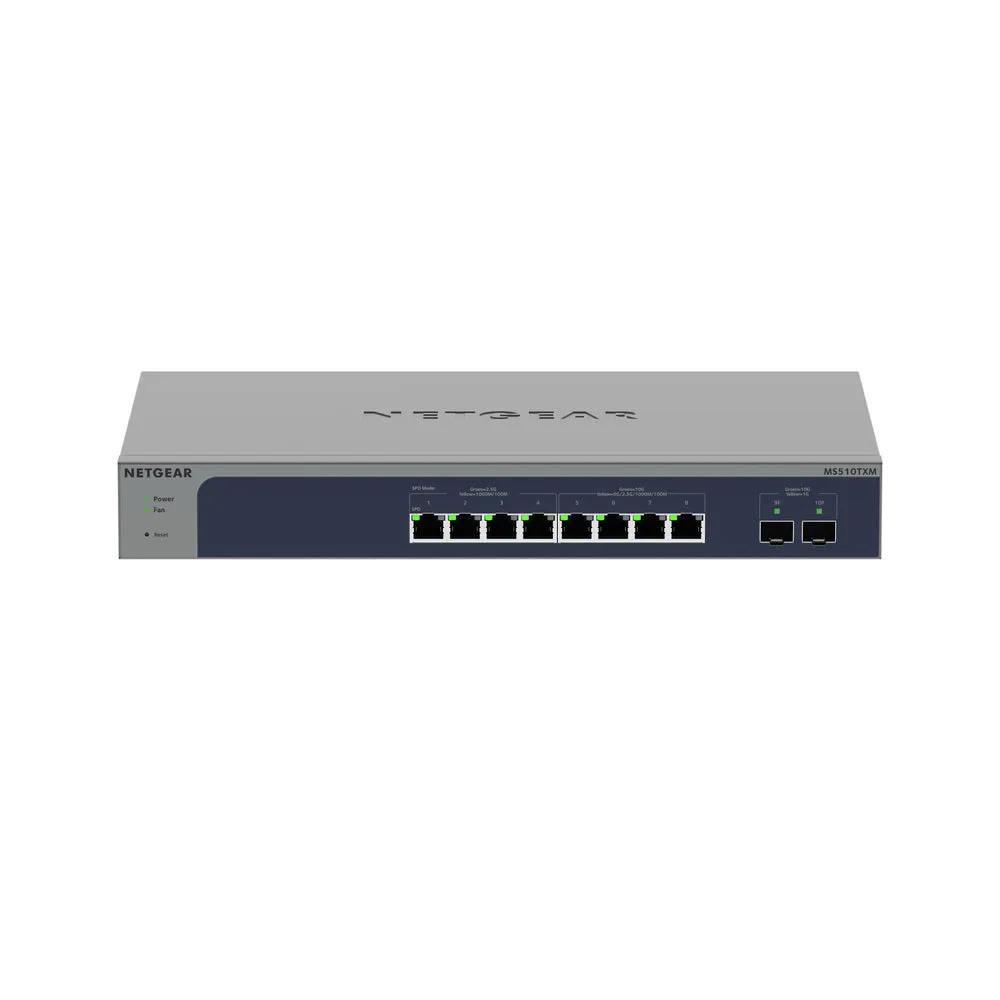

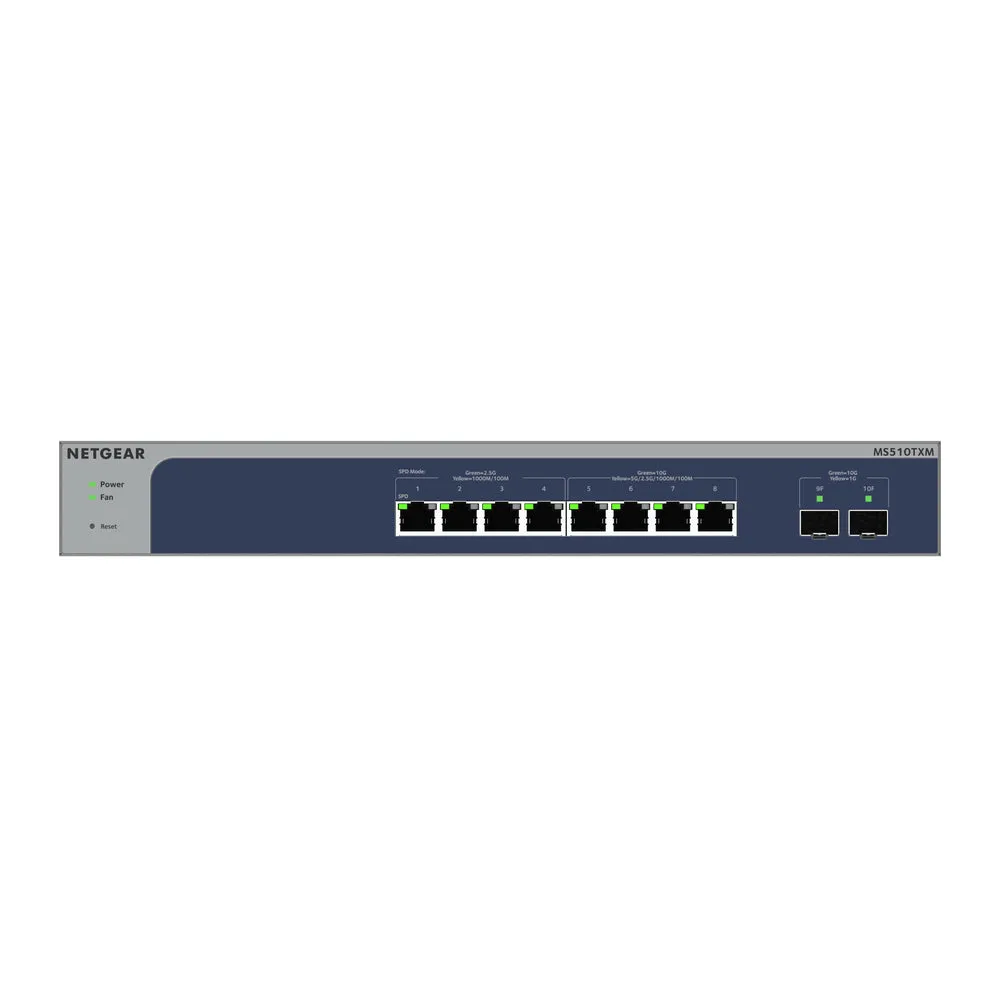

Netgear MS510TXM-100NAS Business Class Ms510Txm Ethernet Switch 8 Ports

The NETGEAR MS510TXM Managed L2 10G Ethernet Switch offers 8 ports, including 4 multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices, 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance, and mobility, and 2-port 10G SFP Fiber uplinks. It also features Layer 3 static routing with 32 routes (IPv4 and IPv6), easy-to-use Web browser-based management GUI, and Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings. The switch can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.

Features

• Operating relative humidity (H-H): 0 - 95
• Storage temperature (T-T): -20 - 70
• Operating temperature (T-T): 0 - 50
• Storage relative humidity (H-H): 0 - 95
• Networking standards: IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
• Jumbo frames support: Y
• Installed SFP modules quantity: 2
• Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
• Basic switching RJ-45 Ethernet ports quantity: 8
• Packet buffer memory: 2
• Password protection: Y
• Jumbo frames: 10000
• Firmware upgradeable: Y
• VLAN support: Y
• Rack mounting: Y
• Heat dissipation: 160.458
• Cables included: AC
• LED indicators: Activity, Fan fail, Link, Power, Speed
• Manual: Y
• Quick start guide: Y
• Flash memory: 64
• Mean time between failures (MTBF): 1059519
• Number of fans: 2
• MAC address table: 32000
• Web-based management: Y
• Switching capacity: 140
• Number of VLANs: 256
• Switch layer: L2
• Quality of Service (QoS) support: Y
• Port mirroring: Y
• Multicast support: Y
• Broadcast storm control: Y
• Number of queues: 8
• Access Control List (ACL): Y
• System event log: Y
• Switch type: Managed
• IGMP snooping: Y
• Certification: CE mark, commercial, FCC Part 15 class B, CE/EN55032/24, VCCI, ACMA, CSA safety, KC, BSMI
• Cloud-managed: Y
• Product color: Grey
• Built-in processor: Y
• Processor frequency: 1000
• 10G support: Y
• Internal memory: 256
• Noise level: 25
• Power supply included: Y
• Power consumption (max): 47
• DHCP features: DHCPv6 snooping
• Operating altitude: 0 - 3000
• Non-operating altitude: 0 - 3000
• Width: 330
• Depth: 206
• Height: 43
• Weight: 2080
• Queue scheduling algorithms: WRR SP
• Rack rails: Y
• User guide: Y
