Additional Features:

• Frequency Range: 50 MHz-18 GHz
• Dynamic Range (dBm): -60 to 20 CW Mode
• SWR: <1.17; 50-150 MHz, <1.12; 0.15-2.5 GHz, <1.22; 2.5-12.4 GHz, <1.25; 12.4-18 GHz
• Rise Time: <18 ns
• Sensor Linearity: <7% 50 to 300 MHz; <3.5% 0.3 to 18 GHz
• RF Connector: N(m)

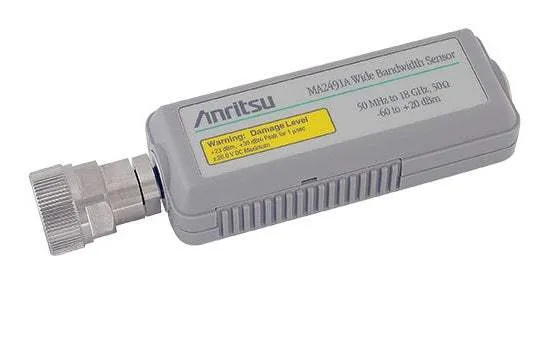

The Anritsu MA2491A wideband power sensors are designed for use with the ML2480 and ML2490 series power meters. These sensors provide peak, crest factor, average power, rise time, fall time, maximum power, minimum power and statistical data of wideband signals.
