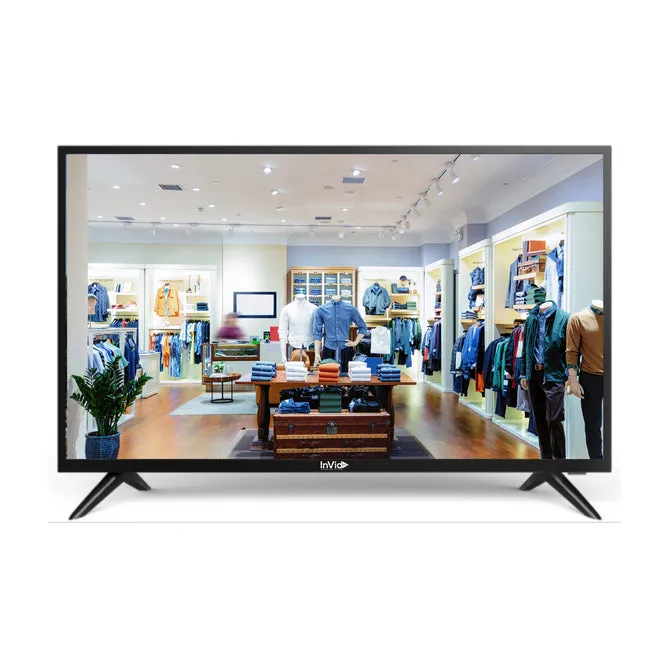

32” LED Monitor, 1920 x 1080, HDMI 2.0, VGA, Looping BNC Inputs & Outputs
Features
- Suitable for All Video Surveillance and Security applications
- Commercial Grade - Designed for 24/7 Operation
- Full High Definition Quality: 1920 x1080
- Bright LED Illuminated Panel
- Inputs: HDMI 2.0 , VGA, BNC
- Outputs: BNC
- Built-in Speaker
-
VESA Mount 200 x 100
Model Name |
IMHD-32HVBN |
|
Display Characteristics |
|
|
Screen Size |
32” |
|
Active Display Area (W x H) |
697.6845 × 392.256 mm |
|
Display Mode |
16:9 |
|
LED Type |
TFT-LED |
|
Resolution |
1920 × 1080 |
|
Display Color |
1.073G |
|
Pixel Pitch ( H x V) |
0.294 × 0.294 |
|
Brightness(nits) |
350cd/m 2 |
|
Contrast Ratio |
1000:1 |
|
Viewing Angle ( H/V) |
178/178 |
|
Response Time |
5ms |
|
Backlight |
LED |
Input & Output |
|
|
HDMI 2.0 |
1 |
|
VGA |
1 |
|
BNC input |
2 |
|
BNC output |
1 |
|
Speaker |
2x3W(Stereo) |
Video |
|
|
Color System |
PAL/NTSC/SECAM |
|
OSD Control |
Auto adjust, Brightness, Contrast, Hori. / Vert. Position, Clock, phase, Color, Language.. |
|
3D comb filter |
YES |
|
Video Noise Reduction |
YES |
Power & Mount Way |
|
|
Power |
AC100V~240V,50/60Hz |
|
Working Temperature |
-22°F ~ 185°F (-30°C ~ 85°C) |
|
Power Consumption |
<35W |
|
Menu |
Chinese/English (other languages supported) |
|
Mounting |
Stand mount, VESA mount 200 x 100 |
|
MTBF |
50000Hours |
|
Dimension size |
29.1 x 18.8 x 3.6 in (738*478*92mm) |
Accessories |
|
|
Included Accessories |
Industrial PSU,Screw, Cable holder, Quick start guide |
