The real-time images generated with this camera provide excellent color rendering with frame speeds.
COMPUTER-CONTROLLED VERSUS STAND-ALONE

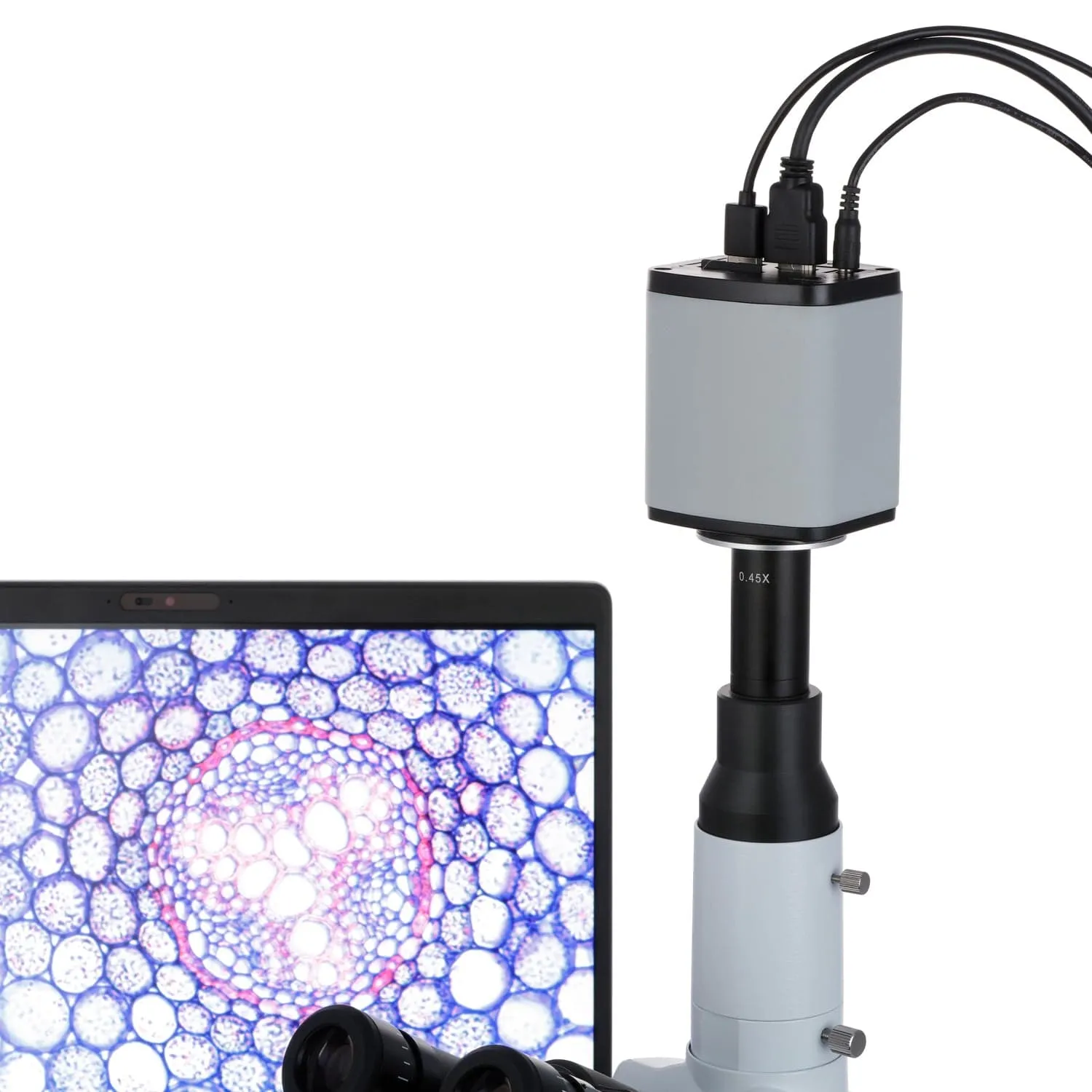

There are two ways to use the HD-Lite (ref. EVC-3031 - EVC-3031-HDS) camera, computer-controlled or as a standalone system.
STAND-ALONE
No need to open or start a computer or any computer knowledge to use these cameras. Most camera settings are done automatically and therefore these cameras are very user-friendly. This results in faster, more flexible, and compact working conditions
Simply connect the camera to a high-definition HD screen, TV-HD, or HD beamer with an HDMI input and the system is ready to go. The mouse-driven built-in software of the camera enables capturing 2592 x 1944 pixels JPG images or recording 1080p video’s on the integrated SD memory card. The captured images or recorded videos can be very easily reviewed or replayed on the HD screen.
The embedded software of the camera features functions like Digital Zoom in/out, Horizontal Flip, Vertical Flip, Auto-Exposure and Manual Exposure Time (0-10 sec), Gain, RGB, White balance, Gamma, Sharpness, Saturation and Contrast, and Grids.
These key properties make the cameras ideal for Life-, Materials Sciences applications, industry, education, and live demonstrations.
COMPUTER-CONTROLLED
Users who want more camera controls and more functions, can also connect the camera to a computer and take benefit of the power of the Euromex ImageFocus Plus software. It runs on Windows 10/11, both 32 and 64 bits, and Capture software (Mac). The software can be installed in one of the 6 different languages (English, French, German, Dutch, Spanish, and Russian. Euromex supplies free updates on www.euromex.com
Besides extended camera settings, the software can save images in JPG, TIFF, or BMP formats or record videos in .avi format on the hard disk of the computer. The software offers full control over the camera parameters. Specific functions for fluorescence like histogram adjustments and combining captured fluorescence images are also available with the ImageFocus Plus software.
SPECIFICATIONS
| Sensor Specifications | |
| Model | HDMI 5.0 Mega pixels high sensitive sensor (Sony) |
| Sensor Type | CMOS |
| Sensor Optical Format | 1/2.5", HDTV 1080p (50/60 Hz) |
| Pixel Size | 2.2µm x 2.2µm |
| Sensitivity | 1000mV |
| White Balance | Auto/Manual |
| Dynamic Range | 60 db |
| S/N Max | 40.5 db |
| Other Camera Specifications | |
| Video Preview Resolution (HDMI) | 1920 x 1080 pixels |
| Video Preview Framerate (HDMI) | HDMI 60 fps, USB 30 fps |
| Video Capture Resolution | 1080p pixels |
| Video Capture Framerate | HDMI 60 fps, USB 30 fps |
| Photo Capture Resolution | 3264 x 1836 pixels (capture mode) |
| Internal Photo Capture Format | JPG |
| Recording Media | SecureDigital card |

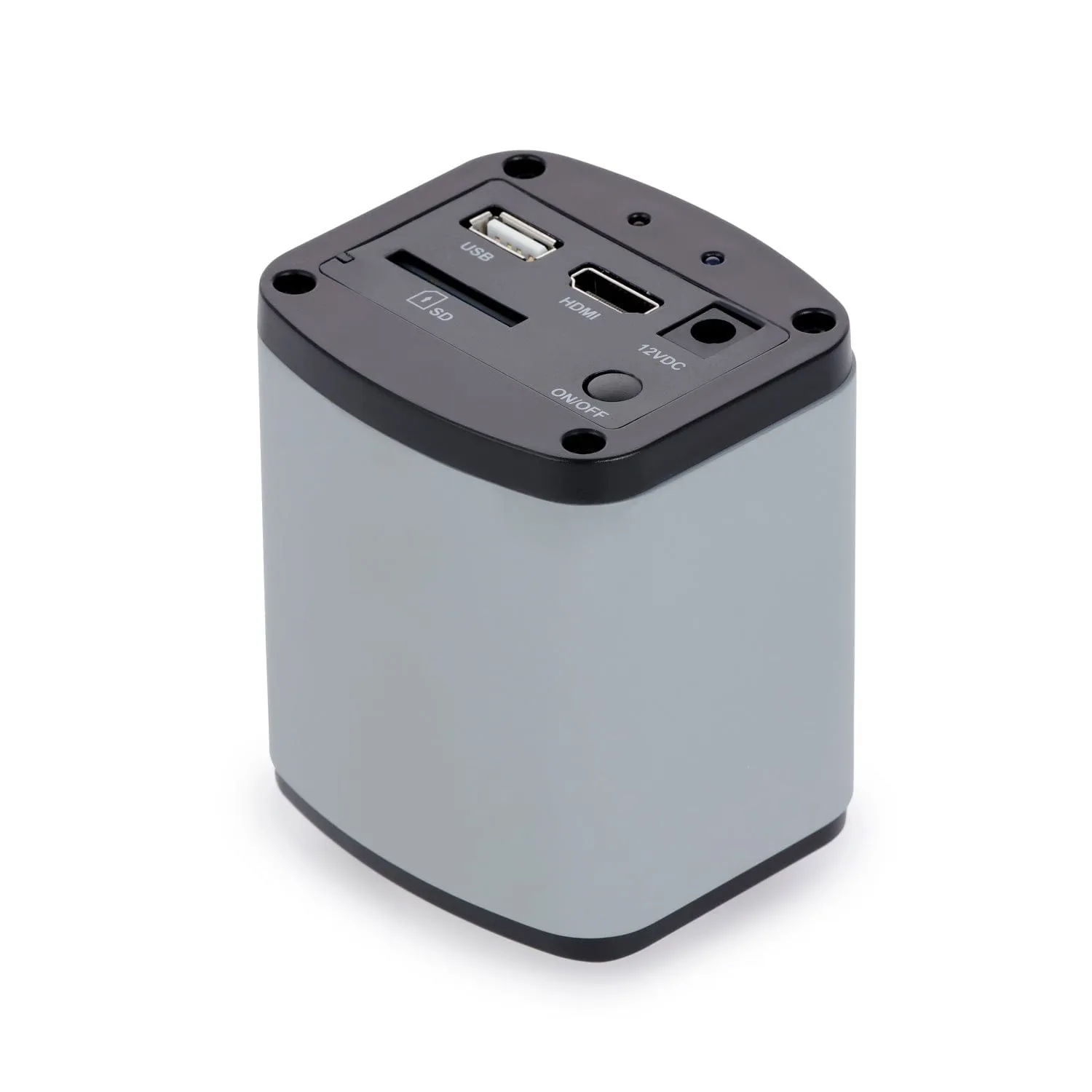

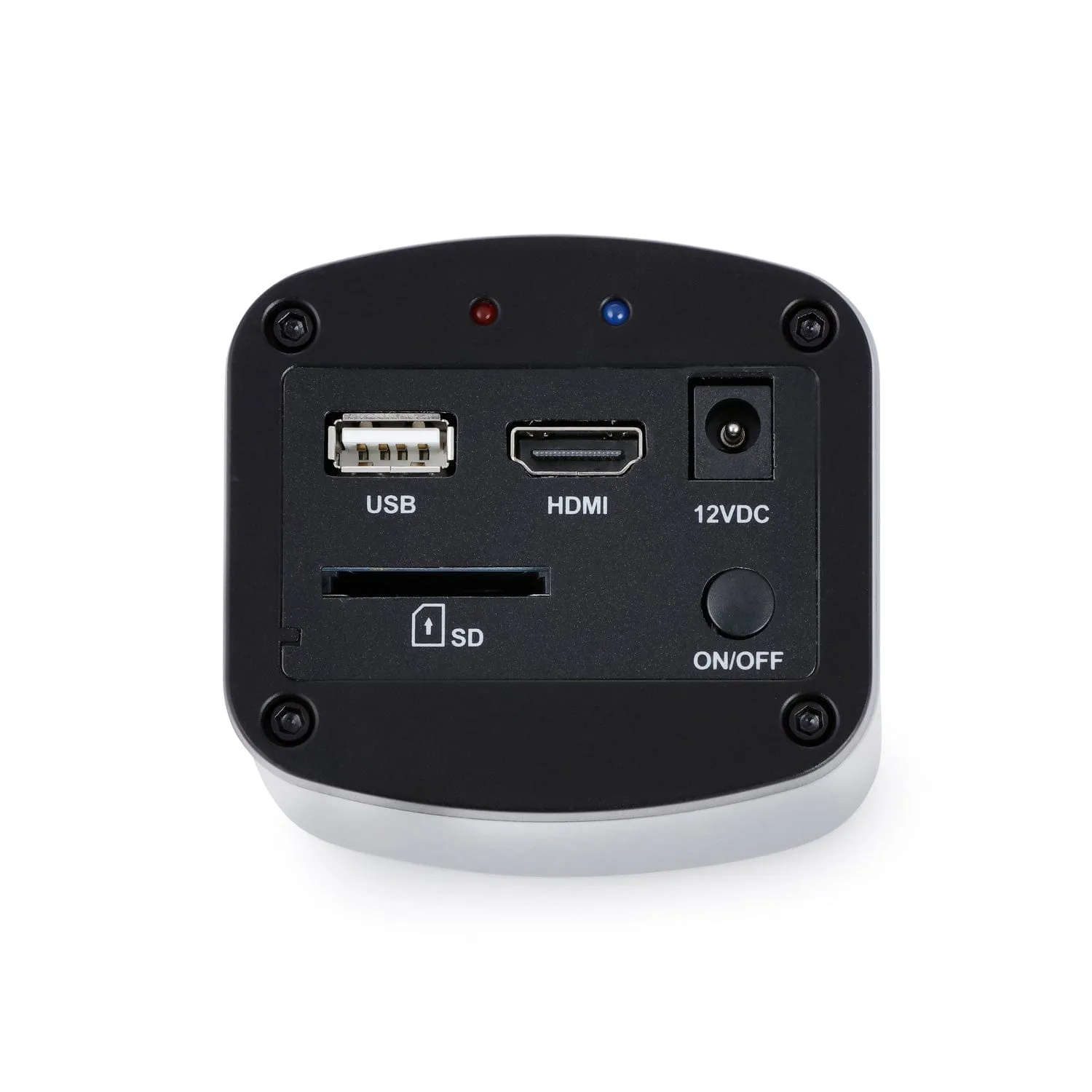

| Connectivity | HDMI, USB 2.0 |

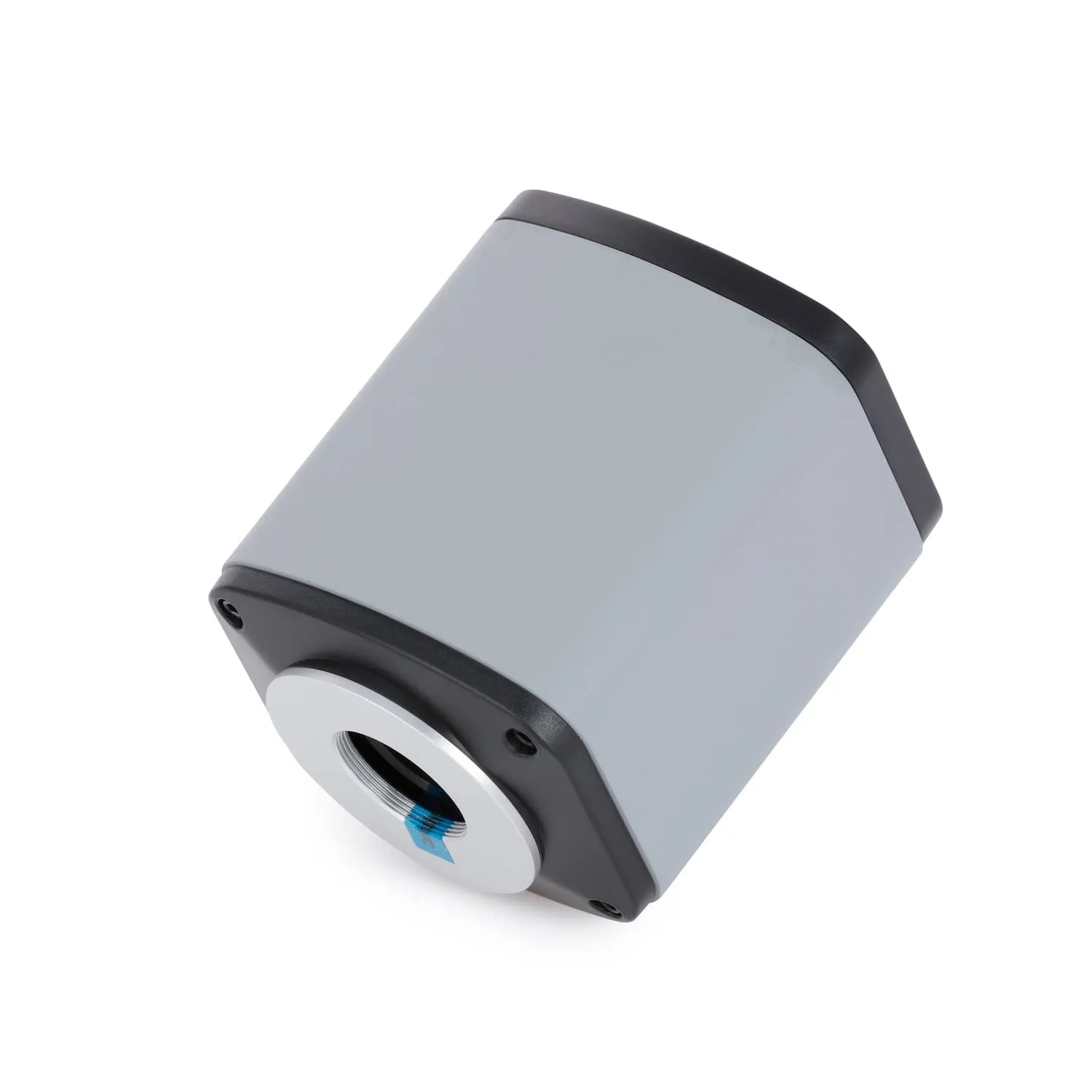

| Lens-mount | C-mount |
| Compensating Lens | 0.37X |
| Power | 12VDC 2A |
| Operating Temperature | 0-60°C |
| Operating Humidity | 45-85% |
SOFTWARE
| OS Requirements | Windows (32/64 bit) XP/Vista/7/8/10/11, Mac OS 10.8 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 4GB RAM | ||||||||||
| Features |
|
||||||||||
| Supported File Formats (Photo) | JPG,JP2,PNG,TFT,TIF,WEBP | ||||||||||
| Supported File Formats (Video) | MP4, WMV (Windows) |
PACKAGING
The HD-Lite camera (ref. EVC-3031) is supplied with USB-2 (A-A type) cable, a C-mount adapter with 0.45x objective*, an 8 GB SD-card, USB-2 mouse, 30.0 and 30.5 mm to 23.2 mm conversion adapters for use with stereo microscopes, 1mm/100 (10μm/division) calibration slide and external 12V 2A power supply.
* For microscopes with a standard 23.2 mm tube
