Features:

• Bandwidth: 100 MHz
• Rise time: ≤ 3.5ns
• Continuous max input range: 30Arms
• Max peak current value: 50Apk
• High accuracy current measurements and wide bandwidth
• DC/AC measuring capabilities
• Over-current protection with dual indicators (buzzer and LED)
• Degaussing and automatic zero setting
• Digital set by panel soft push keystroke for a longer service life
• The certificate does not have a traceability statement.

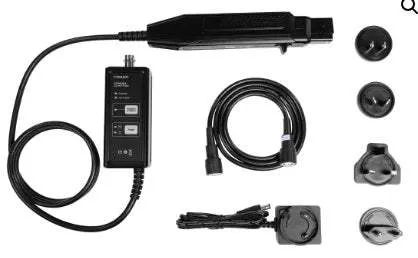

The CP6000 series current probes are wide band width DC / AC active current probes, featuring high bandwidth, fast and accurate capture the current wave, accuracy up to 1% and low circuit insertion loss. This probe can be used with any oscilloscope having a high-impedance BNC input.

CP6000 series has standard BNC interface can be applied to the oscilloscope of any brand. It is powered by standard adapter, independent of oscilloscope power, so it is very easy to use.
