Product Details
＋

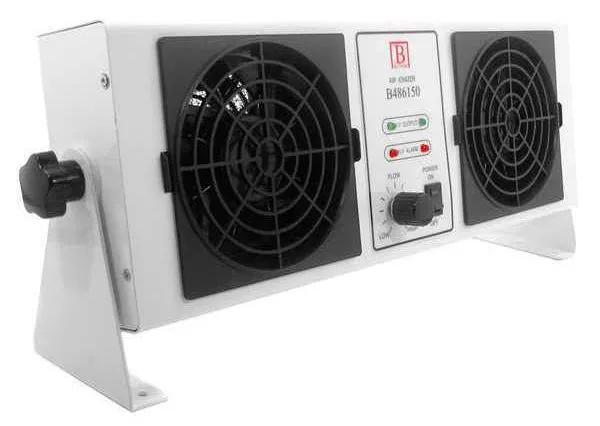

Botron's B486150 air ionizer is a high frequency unit that provides both reliability and performance. It's light weight and compact design combined with an adjustable blowing angle makes it a versatile bench top application. Standard equipment comes built with an on and off switch along with an auto ion balance and abnormal HV monitoring system.
Key Features
- Adjustable Blowing Angle
- Quick Access Clip Design
- Green and Red LED Indicators
- Abnormal HV alarm
Applications
As with all of Botron's ionization units the B486150 is designed to neutralize electrostatic charge in personal bench top environments, sensitive materials assembly, packaging, cleanroom and laboratories.
Operation
Power on unit and adjust air flow for maximum neutralization. Aim unit at the area or items to be neutralized.
Performance
- Ion balance /- 5v
- Positive decay times from (sec) 0.9 at 300mm to 2.5 at 900mm
- Negative decay times from (sec) 1.1 at 300mm to 3.6 at 900mm
- *All results are based according to EOS/ESD-STM 3.1-2000.
- *Results may vary based on test conditions.
Detailed Info
- Power supply: DC24VA
- Capacity: 24VA
- Output HV: AC2200V
- Air volume: 2.6 - 6.5m3/min cfm
- Temperature: 68-104° F/0-40° C
- Humidity: 25-70% RH (no drops)
- Ozone: < 0.007 ppm
- Indicators: Green LED, Red LED
- Controls: Fan speed control, Power On/Off
- Mounting: Adjustable stand/bracket
- Emitter: Tungsten Alloy
- Dimensions: 7.0"H x 18"W x 3.5"D
