Product Details
＋

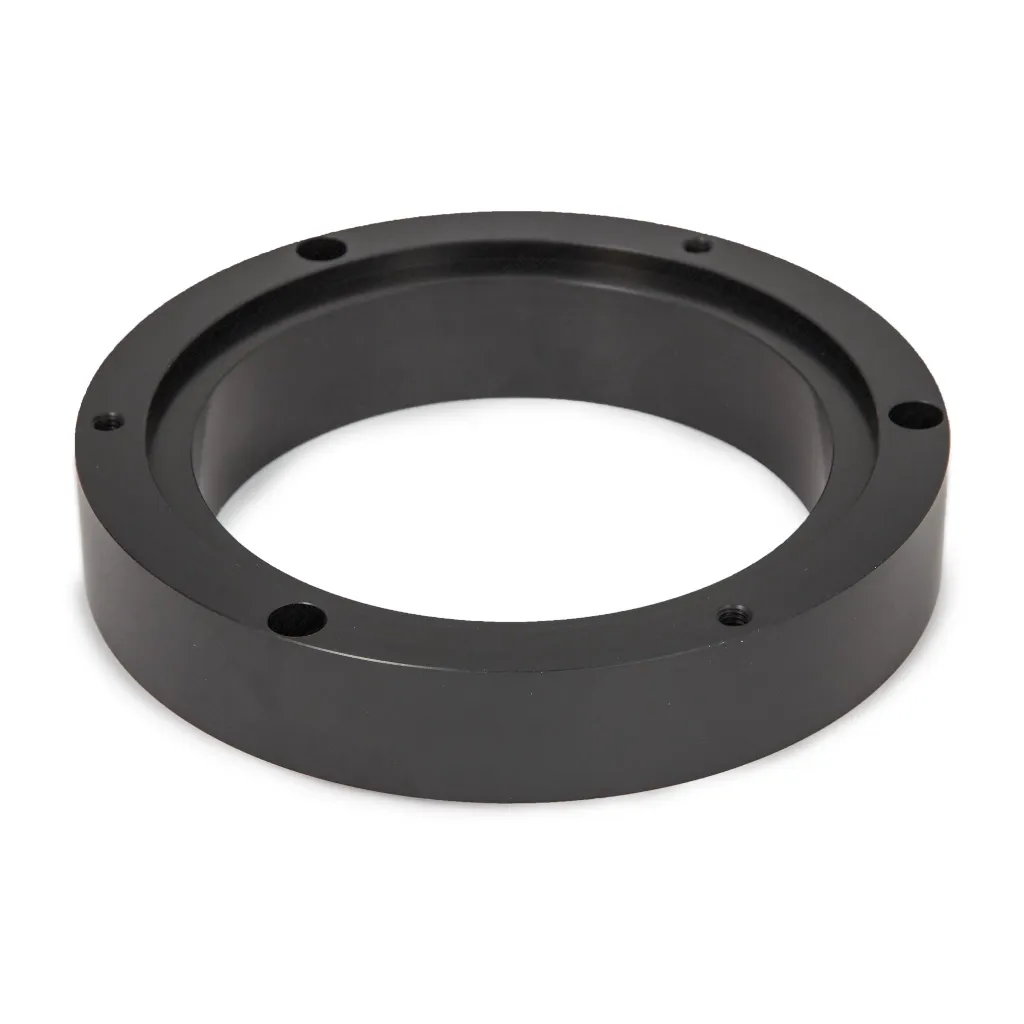

Baader IMP85 Extension IR90 37mm
37.5 mm Extension for the IR90 - Integrated Rotating Focuser from PlaneWave to the telescope to gain more back focus for the Instrument
A variety of adaptations are possible. The IMP85 is delivered without adapters. A variety of telescope-side and camera-side adapters are available from stock. For custom applications, we provide the design for the flange on request.
- 37.5 mm Extension for the IR90 - Integrated Rotating Focuser from PlaneWave to the telescope to gain more back focus for the Instrument Multi Port IMP85 (#2451300)
- Developed and manufactured in Germany
- Connections on telescope side: PW focuser LK200 5/16 pitch18 UNC
- Optical length: 37.5mm
- Inner and outer diameter: 215 mm x 43 mm
Technical Specifications
| MANUFACTURER | Baader Planetarium |
| SKU (#) | 2451320 |
| EAN CODE | 4047825044532 |
| NET WEIGHT (KG) | 0.625 |
| OPTICAL LENGTH (MM) | 37.5 mm |
| CLAMPING SYSTEM | Dovetail clamp |
| BACK FOCUS USAGE | Port 1: 90 mm, Port 2: 110.5 mm, Port 3: 110.5 mm |
| OPTIONAL ACCESSORIES | Available Telescope-Adapters Hedrick Focuser, IR90, Alluna, GO1, AZ5000 and various others; proper adapters for various cameras are available on demand. |
| INCLUDED ACCESSORIES | 3m Ethernet cable, 12V power supply (US, UK and EU adapter included), six M5 set srews |
| OUTER DIAMETER | 43 |
In the Box
Baader IMP85 Extension IR90 37mm
