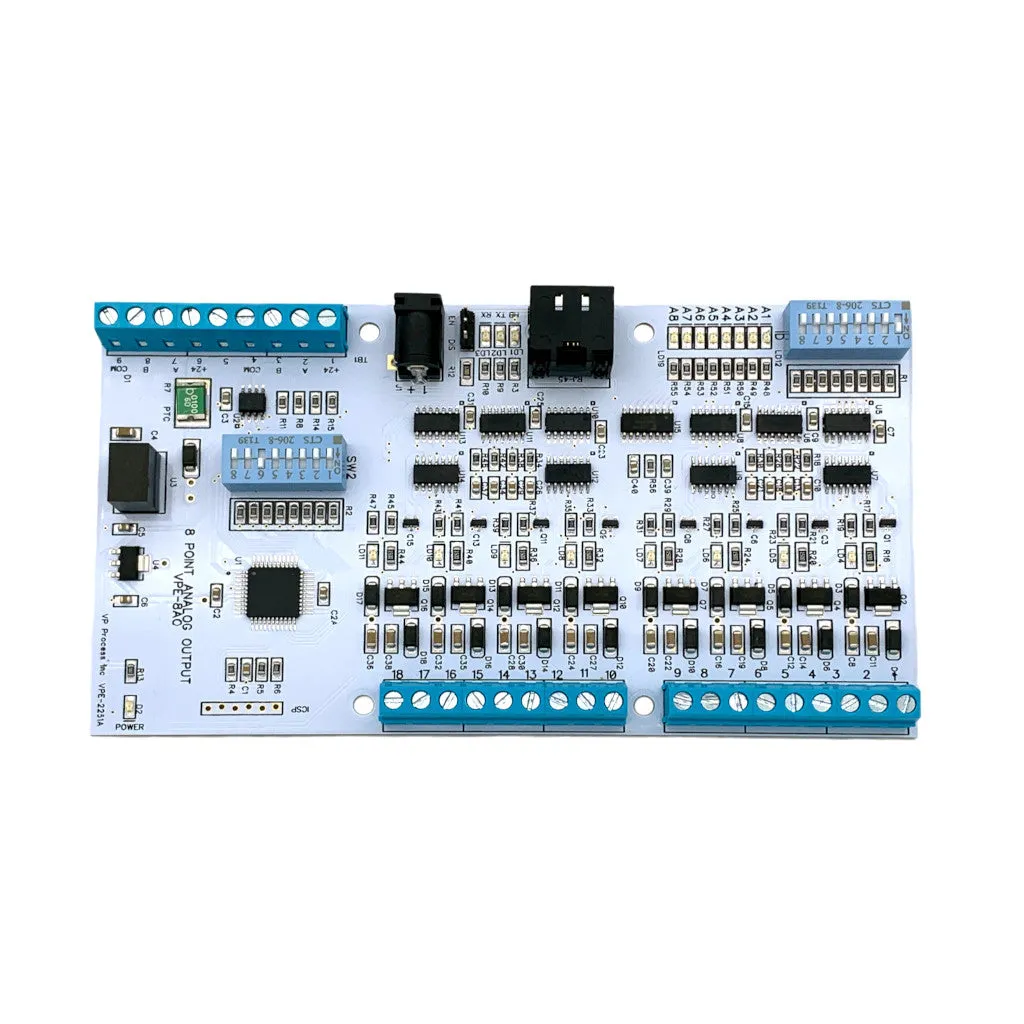

8 Point Analog Output I/O Module, 4-20 mA, RS485 Modbus RTU Interface

Specifications:

• Power: 24 VDC
• RS485  Switch Selectable 9600 or 19.2K Baud, N81
• Modbus RTU Protocol
• Modbus ID: Dipswitch Selectable
• Analog Outputs: 4-20 mA into 1000 Ohm load @ 24 VDC
• Resolution: 12 Bit DAC (MCP4922 Dual 12 bit DAC with SPI Interface)
• Calibration: Simple calibration via jumpers

Processor:

• PIC18F45K20, c/w ICSP Port
• Can be used as an Analog Output Development Platform

Indicators:

• Power On: BLUE LED
• Analog Output: 1 thru 8: GREEN LED ON when input above 2mA
• Analog Output: Amber LED in series with output to show signal strength
• Heart Beat: AMBER LED (Flashes to indicate proper operation)
• RS485: GREEN LED Rx, RED LED Tx.

Options:

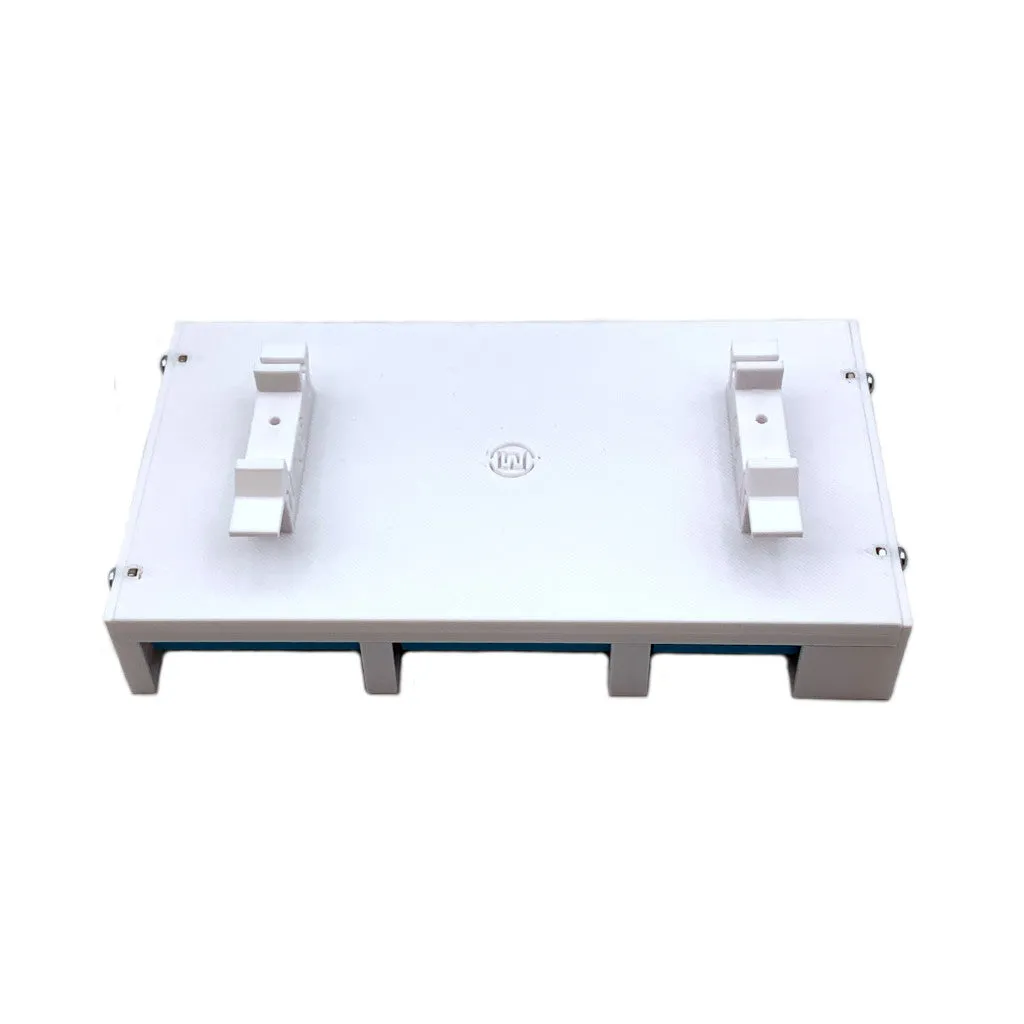

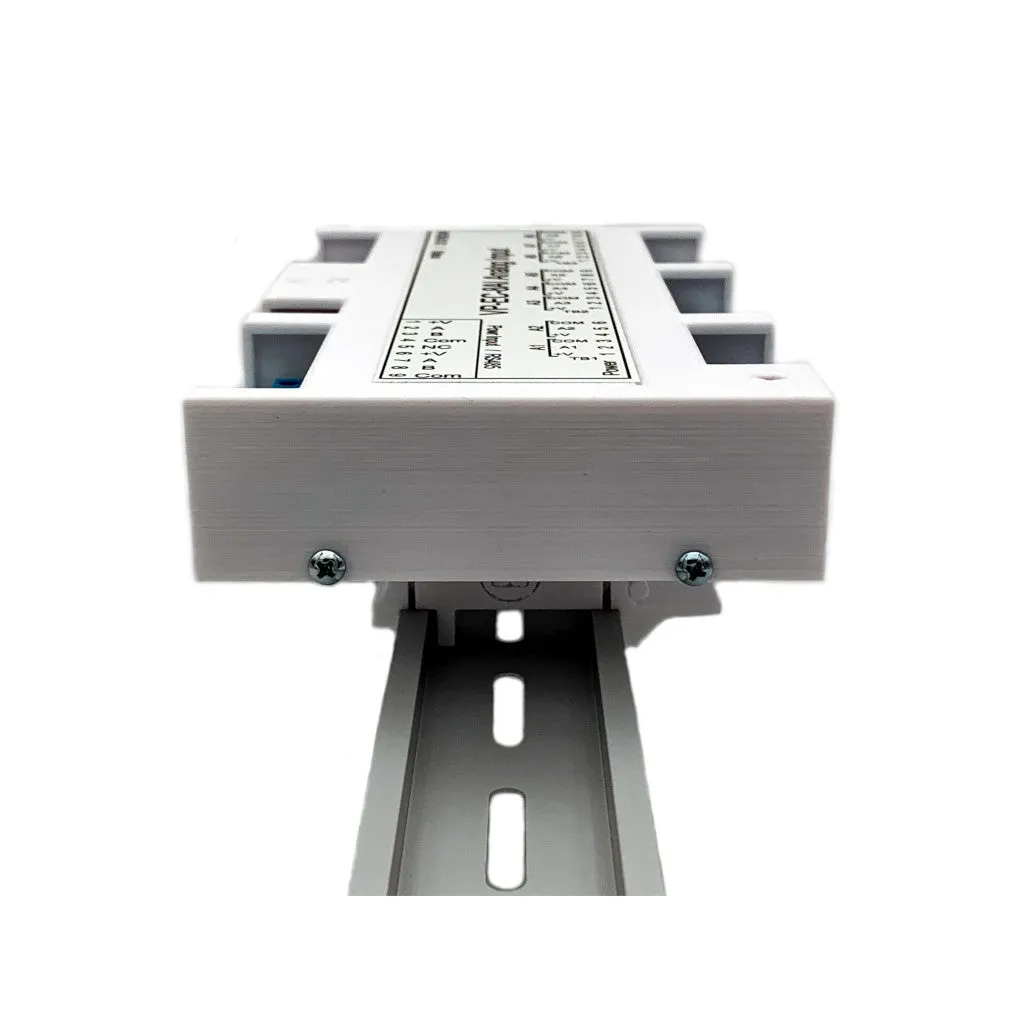

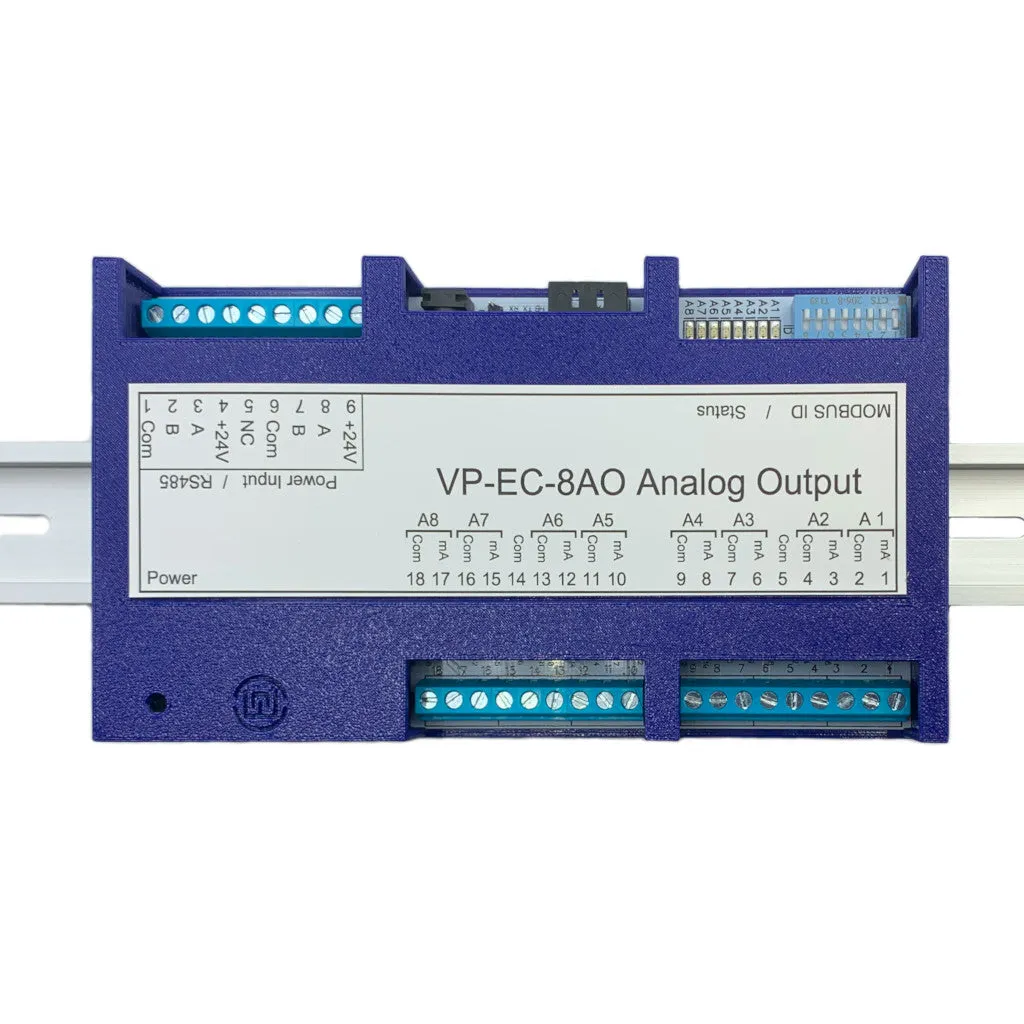

• DIN Rail Enclosure 6.5" Long x 3.5" Wide x 1" High

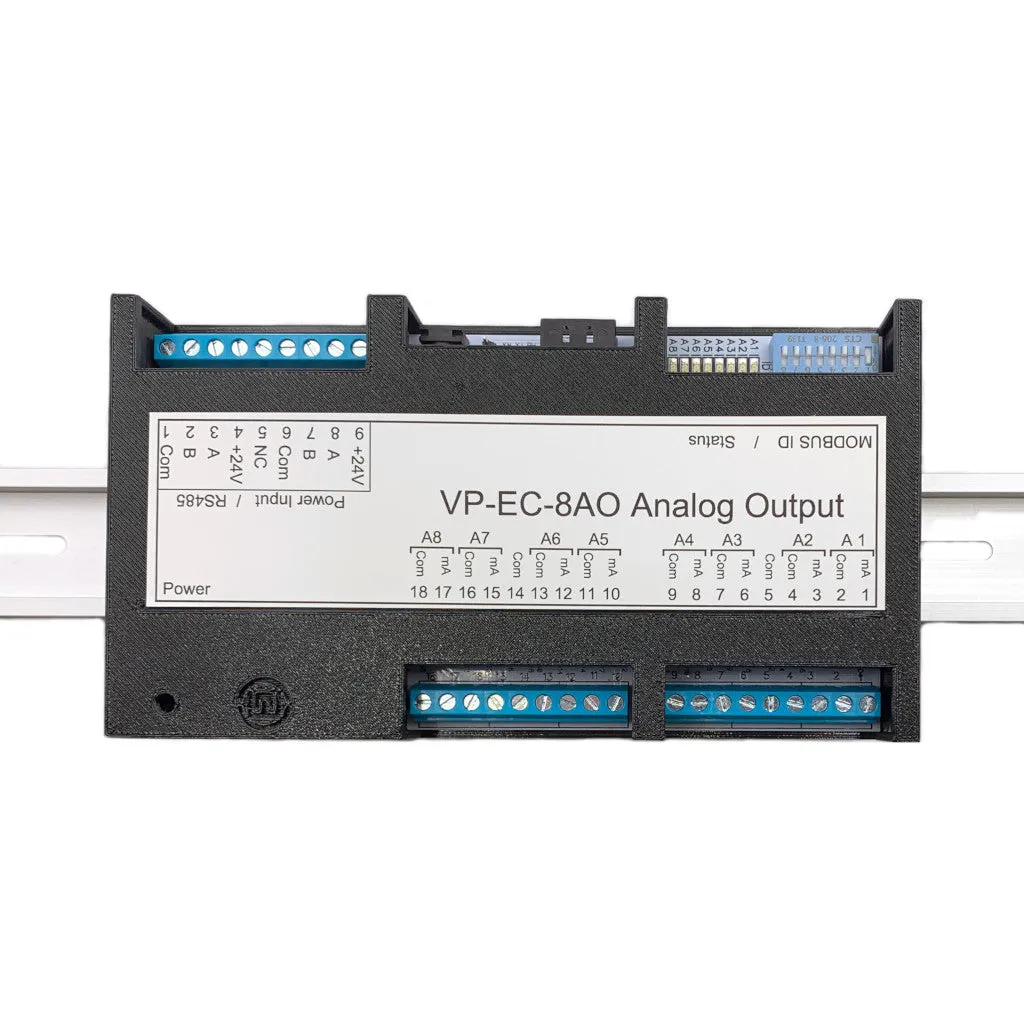

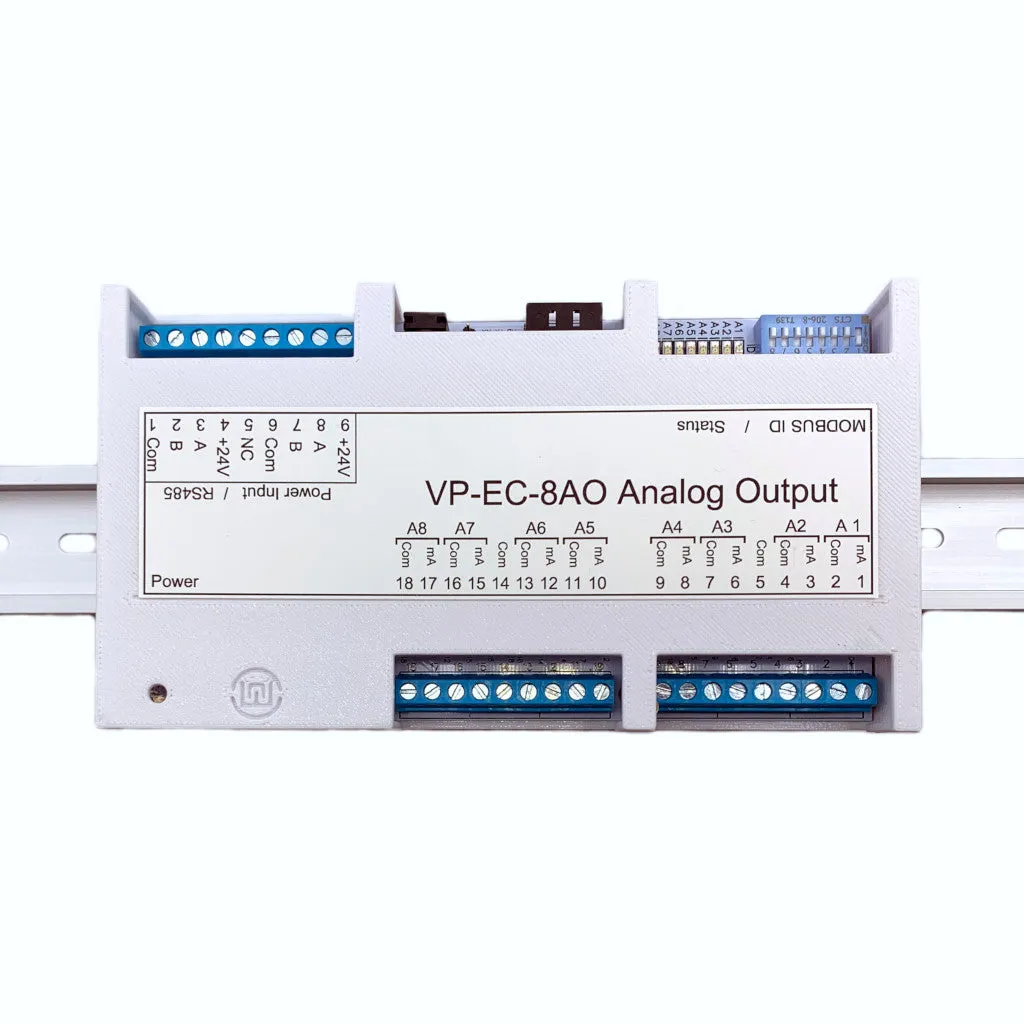

  Available in Black (Standard), Blue (Custom) and White (Custom)
  Fabricated with PETG Plastc


For Modbus Registers and programming information, please visit the at vpprocess.com.
