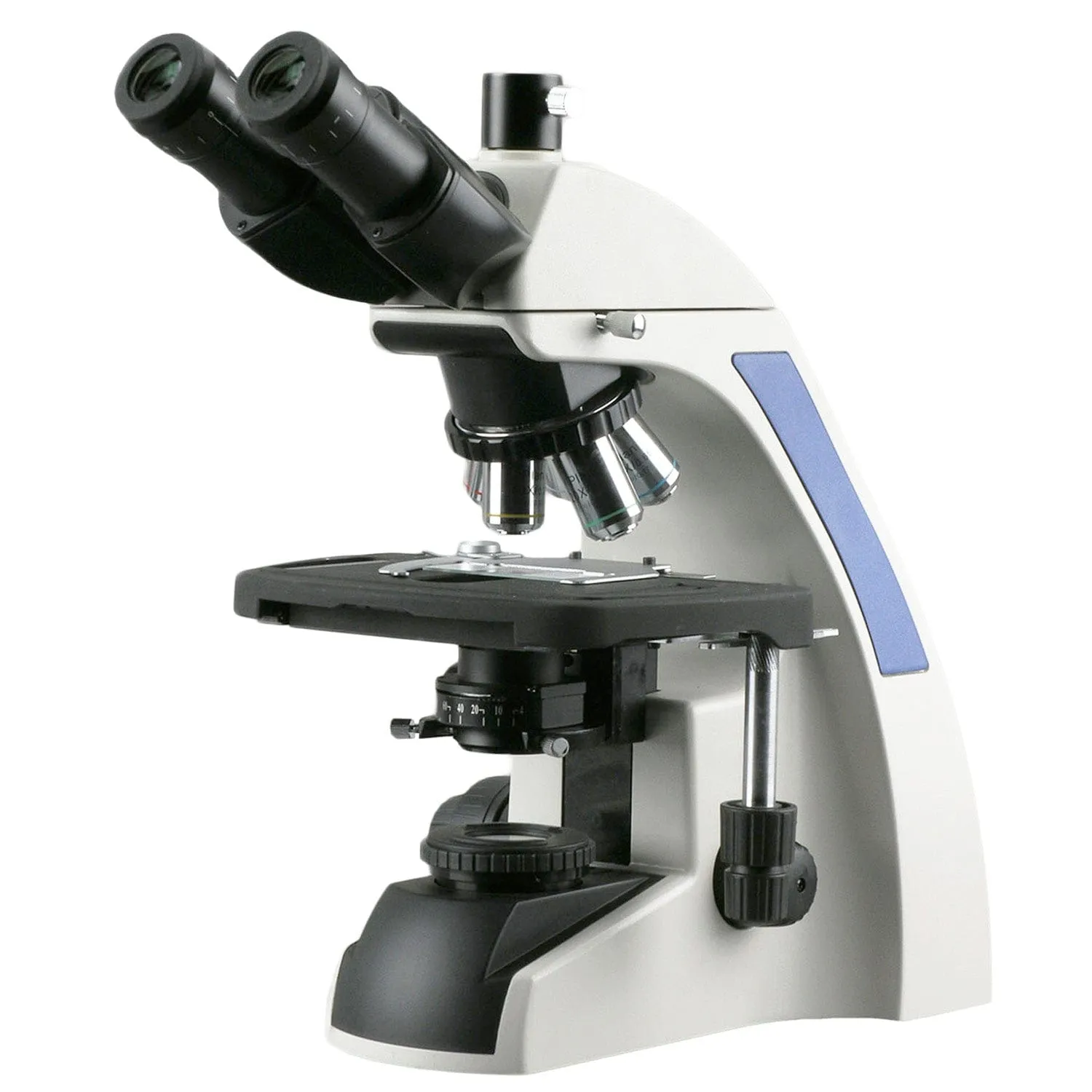

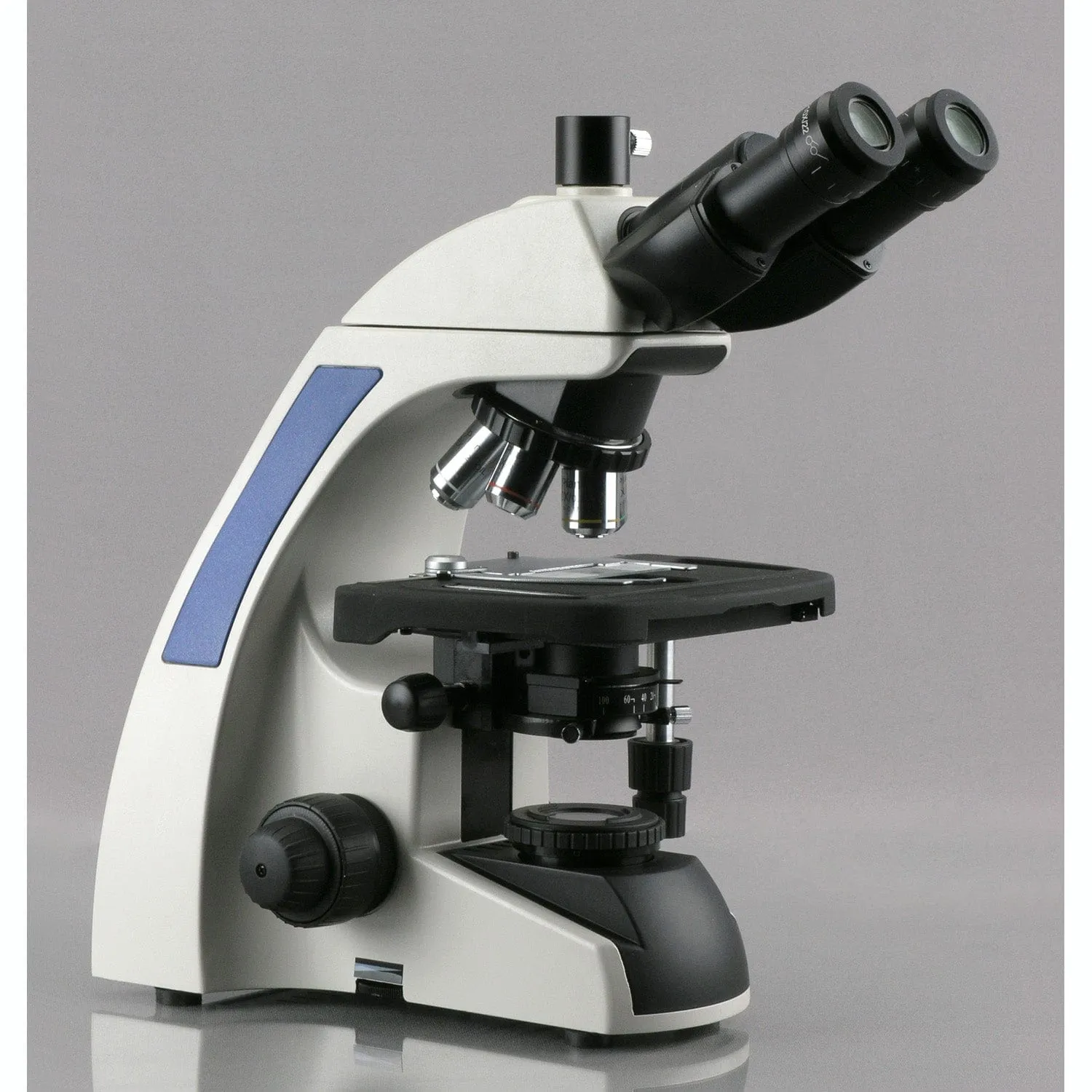

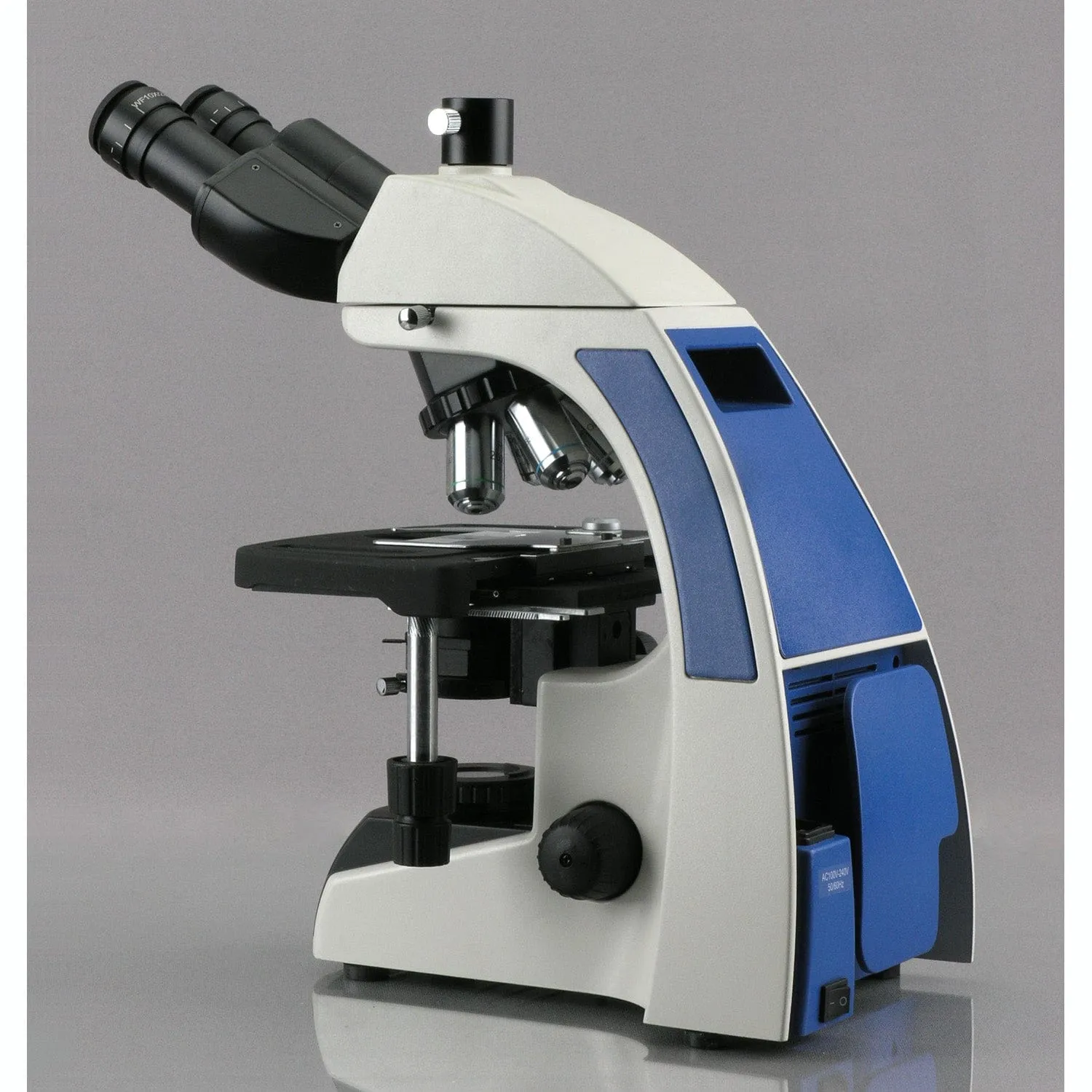

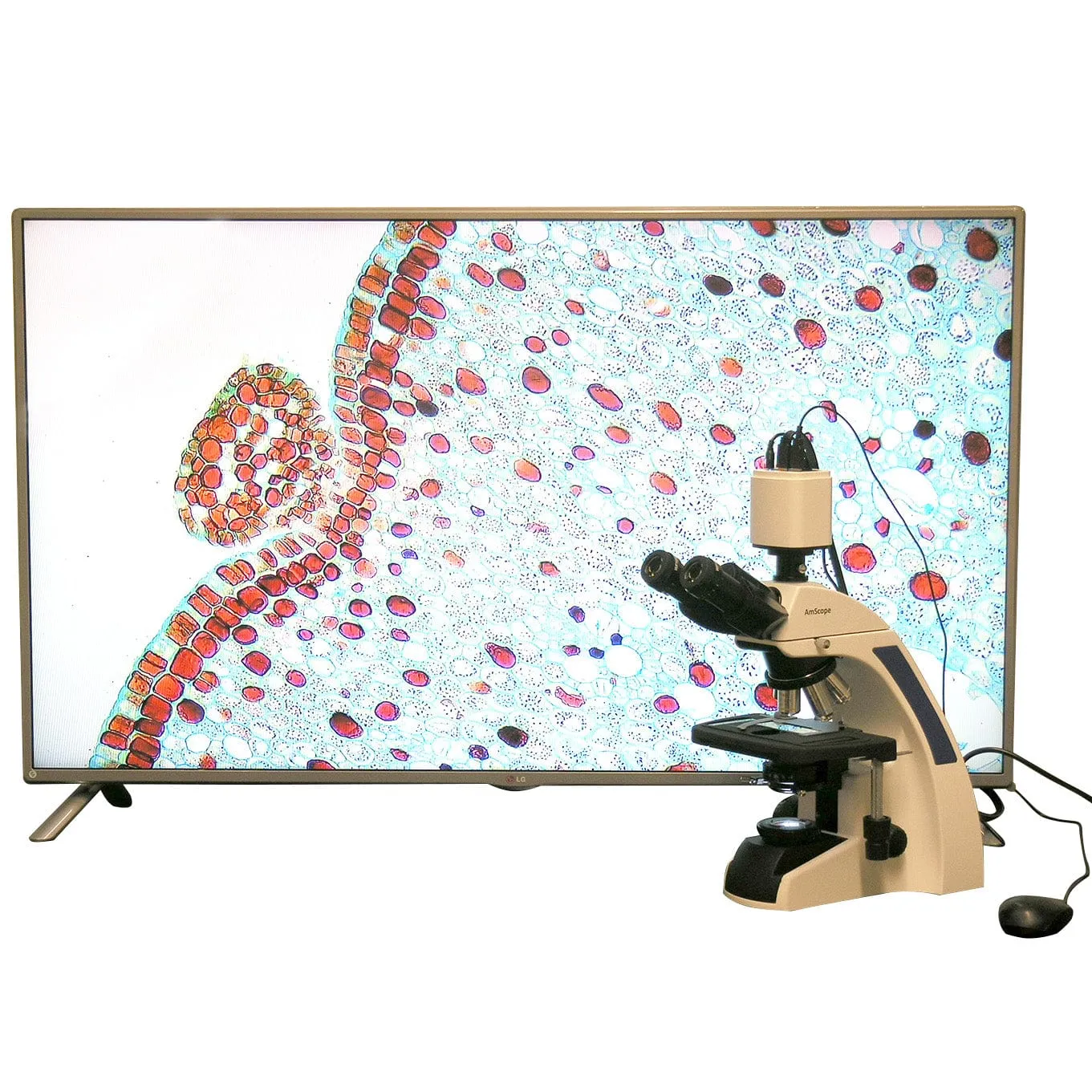

This professional trinocular compound microscope comes equipped with an infinity Plan optical system and offers advanced features as well as research grade performance. Its crystal clear optical and precise mechanical systems promise high quality performances for advanced applications. Included is our 1920x1080, 60fps via HDMI, 30 fps via USB2.0 digital camera and screen (controlled via a USB mouse) combination kit for live viewing and recording! The backward nosepiece design allows spacious room for convenient operation. This microscope has five high quality Plan Achromatic objectives (4X, 10X, 20X, 40X, 100X), two pairs of extreme widefield focusable 10X and 25X eyepieces, a Kohler illumination system, a 30-degree incline on the ocular tubes for comfortable viewing, 360-degree swiveling, compensation-free trinocular head, a coaxial coarse & fine focusing system, and a 3D mechanical stage. It provides eight levels of magnification: 40X, 100X, 200X, 250X, 400X, 500X, 1000X & 2500X. It is an ideal instrument for advanced researches. Note: Monitor/TV NOT included.
Features :
Infinity Corrected Optical System with High Resolution
Fully Coated Optics with Crystal Clear & Sharp Images
Precise Mechanical Control System
Reversed Nosepiece Design
Kohler Illumination System with Field Diaphragm for Lighting Control
30-Degree Inclined, 360-Degree Swiveling, Compensation Free Trinocular Head
Includes 1920x1080p HDMI/USB2.0 Digital Camera
Eight Magnification Levels: 40X, 100X, 200X, 250X, 400X, 500X, 1000X & 2500X
Intensity-Variable Transmitted LED Lighting System
Abbe Condenser with Iris Diaphragm and Filter Holder
Rack and Pinion Adjustment for Condenser
Low Position Coaxial Stage Movement Controlling Knobs
Dual Side Coaxial Coarse and Fine Focusing Control
Adjustable Interpupillary Distance
Adjustable Diopter on Eyepieces
Durable Cast Alloy Frame with Stain Resistant Enamel Finish
Five Infinity Plan Objectives Included
Two Pairs of Extreme Widefield Eyepieces Included

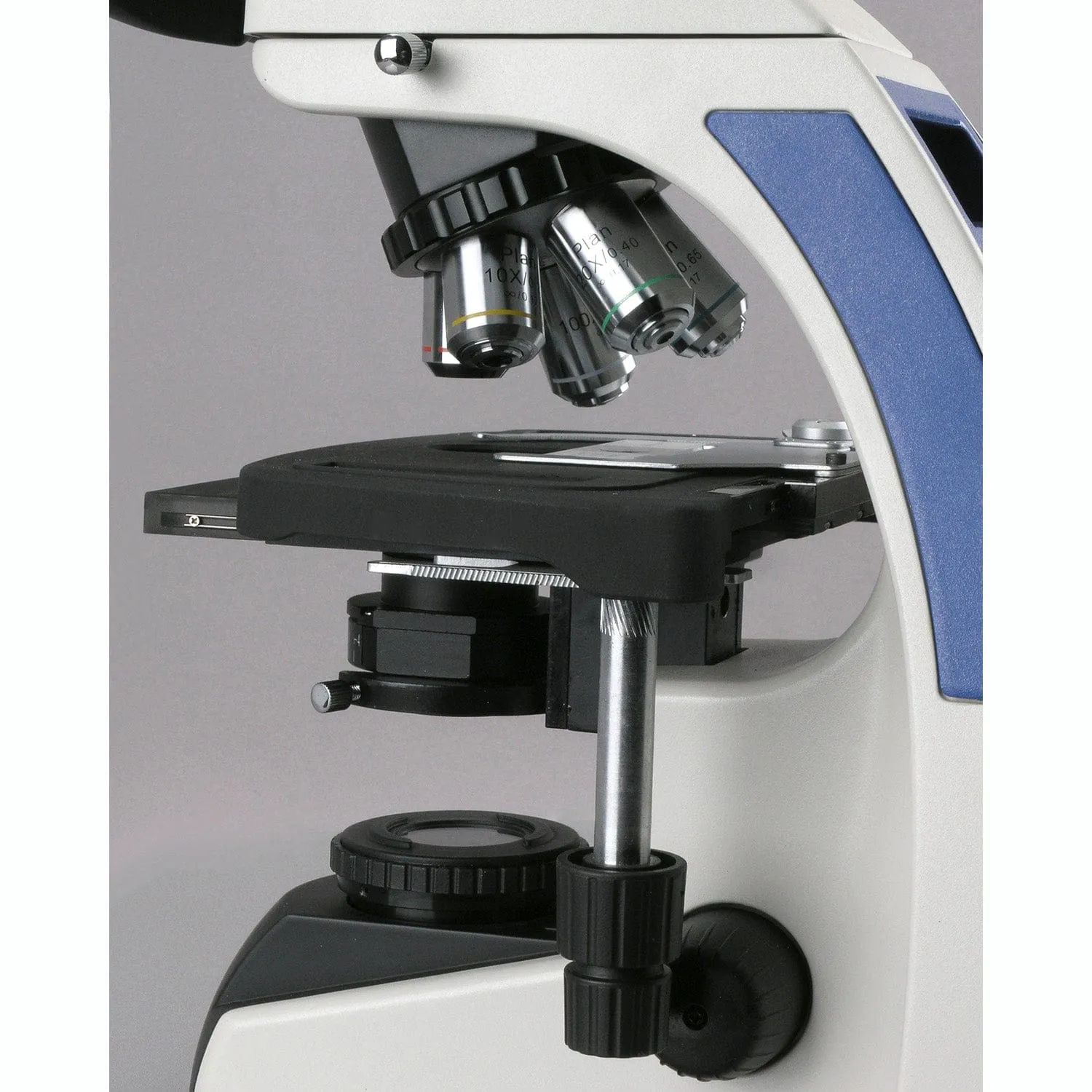

Quintuple, Reversed, Extra-Large Nosepiece with Wide, Knurled Grip for Easy Operation
Large Double Layer Mechanical Stage with Stain Resistant Coating
Upward Stage Limit Stop to Protect Objectives and Slides
Manufactured under ISO 9001 Quality Control Standards
Excellent Five (5) Year Factory Warranty
Specifications :
Optical System: infinity corrected
Nosepiece: reversed, ball bearing quintuple
Head: gemel type trinocular head, 30-degree inclined
Eyepiece: high eye-point eyepieces, WF10X22mm WF25X
Objectives: infinity plan objective 4X, 10X, 20X, 40X (spring), 100X (spring, oil)
Focusing: low position coaxial focus system
Focusing Range: 1-3/16" (30mm)
Interpupillary Adjustment Range: 2-3/16" - 3" (55-75mm)
Mechanical Tube Length: 6-5/16" (160mm)
Mechanical Stage: 8.5" x 5.9" (216mm x 150mm)
Stage Traveling Range: 2.9" x 2" (75x50mm)
Focusing Rang: 0.95" (24mm)
Division of Fine Focusing: 0.00003935" (0.001mm)
Illuminator: Built-in Kohler LED illumination system
Condenser: N.A. 1.25 achromatic condenser
Illumination: Kohler, LED
Power Supply: 90V-240 wide voltage, CE certified
Camera Specifications:
Sensor: IMX236
Sensor Size: 1/2.7"
Live Resolution: 1920x1080
Frame Rate: 60fps @ 1920x1080 via HDMI, 30fps @ 1920x1080 via USB2.0 & SD Card Slot Recording
Image Storage: SD Card Slot
Video Recording Frame Rate: 30fps via USB2.0 & SD Card Storage
Exposure Time: 0.001 sec ~ 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Cotraction
Screen Built-in Software: Cloud 1.0
Screen: 11.5" HDMI Monitor
PC Software: ISCapture
Output Mode 1: USB2.0
Output Mode 2: HDMI
Compatibility: Windows XP/7/8 (32/64 bit),
Camera Specifications:
Sensor: IMX236
Sensor Size: 1/2.7"
Live Resolution: 1920x1080
Frame Rate: 60fps @ 1920x1080 via HDMI, 30fps @ 1920x1080 via USB2.0 & SD Card Slot Recording
Image Storage: SD Card Slot
Video Recording Frame Rate: 30fps via USB2.0 & SD Card Storage
Exposure Time: 0.001 sec ~ 10.0 sec
White Balance: Auto
Settings: Gain, Gamma, Saturation, Cotraction
Screen Built-in Software: Cloud 1.0
Screen: 11.5" HDMI Monitor
PC Software: ISCapture
Output Mode 1: USB2.0
Output Mode 2: HDMI
Compatibility: Windows XP/7/8 (32/64 bit)
Built-in Software Features
Captures Still Images & Records Video
1080p Video Recording (30 fps)
Auto Exposure & Manual Exposure Setting Options
Saturation, Brightness, Contrast, & Tint Options
Auto White Balance Functionality
3D Noise Reduction
ROI Magnification Functions (Image Flip, Rotation, ROI)
Image Side by Side Comparison Functionality
Built-in File Browser
Computer Software Features
Compatible with Windows XP/Vista/7/8 (32 & 64 bit)
Computer Requirements: CPU Equivalent to Intel Core2 2.8GHz or higher, Memory: 2GB or more, USB2.0 port
Preview live images right on your computer
Record images and video (30 fps record rate over USB2.0)
Auto and manual control of exposure, gain, white balance, gamma, contrast, saturation, and more
Packing List :
Trinocular Compensation-Free Head
Microscope Body with Frame, Base, and Kohler Illumination System
Five High Quality DIN Plan Achromatic Objectives: 4X, 10X, 20X, 40X and 100X
One Pair Extreme Widefield WF10X Eyepieces
One Pair Extreme Widefield 25X Eyepieces
One Dust Cover
Immersion Oil
User's Manual Download
1920x1080p HDMI Camera
Power Supply
HDMI Cable
Mounting Adapter
Shipping Weight: 30 lbs
