Name: AmScope HD Series 720p 30fps 2.0MP HDMI Color CMOS C-mount Microscope Camera for Standalone Imaging
SKU: 1337080

Product Details ＋

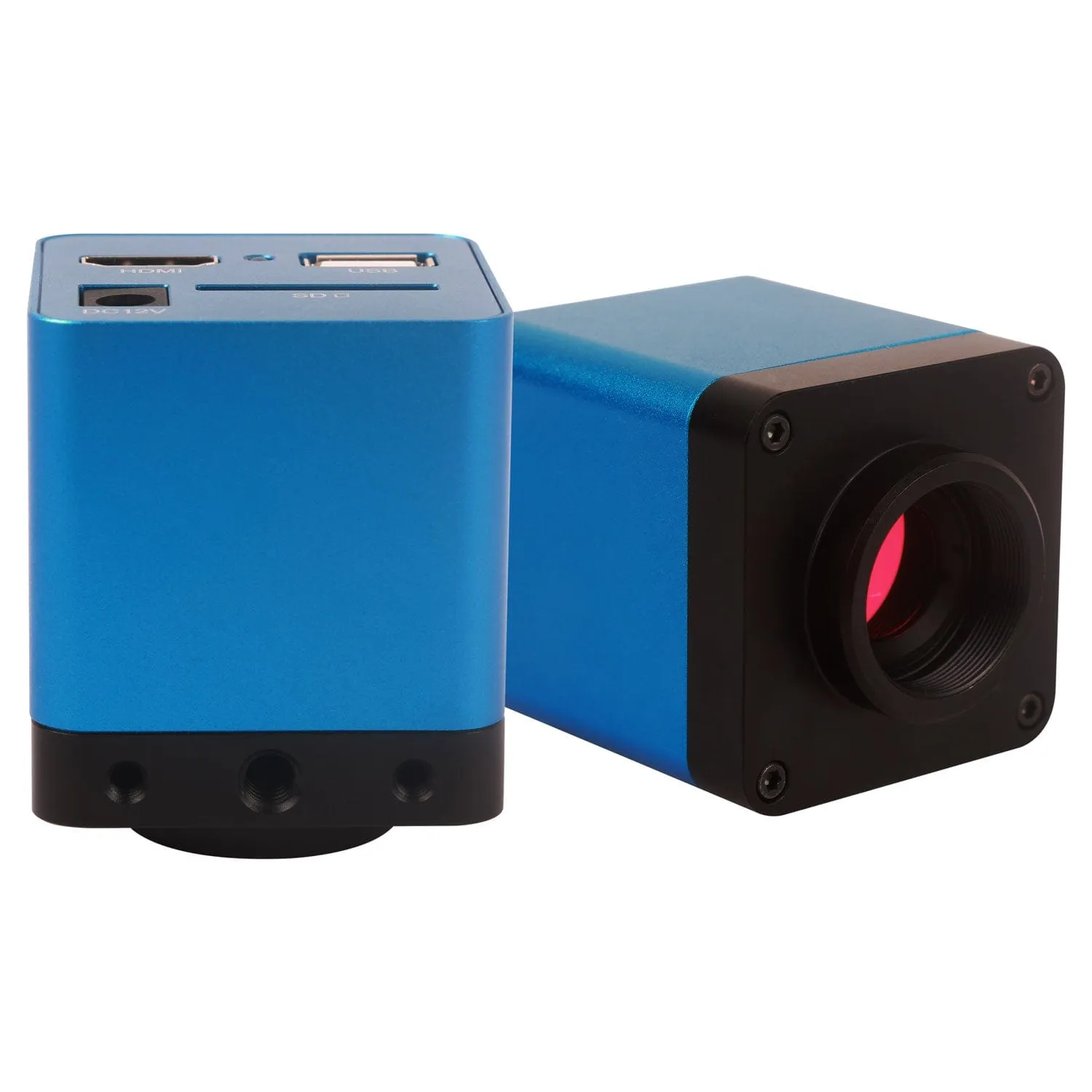

The HD102-M is a 2MP digital camera delivering 720p video at 30fps over HDMI, and capturing 1080p images using the built-in SD-card writer. The industry-standard C-mount design allows this camera to be connected directly to C-mount photo ports, or used in conjunction with an array of lenses and adapters to mount to virtually any popular microscope line.

Connected to an HDMI monitor or TV, 720p live video can be viewed at a smooth 30fps. The included USB mouse allows you to make adjustments in the internal software for settings such as white-balance and exposure. Optionally, a companion HDMI monitor can be attached directly to the camera, creating a self-sufficient turnkey system.

Specifications

Sensor Specifications

Model	IMX322 (color)

Sensor Type	CMOS

Sensor Optical Format	1/2.9"

Active Pixels	2.07M (1920 x 1080)

Pixel Size	2.8µm x 2.8µm

Active Sensor Area	5.38mm x 3.02mm

Shutter	electronic rolling shutter

Sensitivity	510mV @ 1/30s

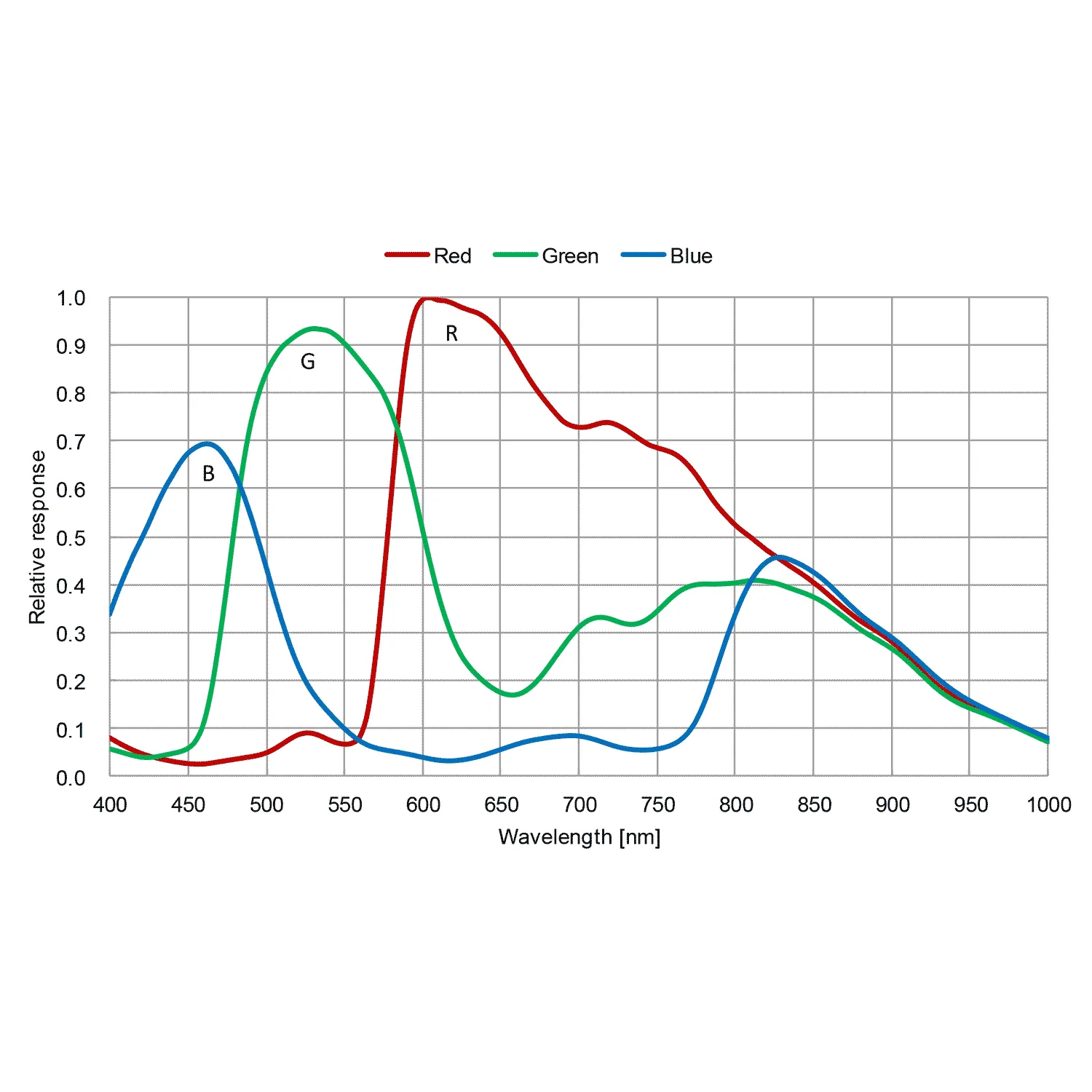

Spectral Response	380-650nm with IR-cut filter


Other Camera Specifications

Video Preview Resolution (HDMI)	1280 x 720

Video Preview Framerate (HDMI)	30fps

Photo Capture Resolution	1920 x 1080

Recording Media	SecureDigital card

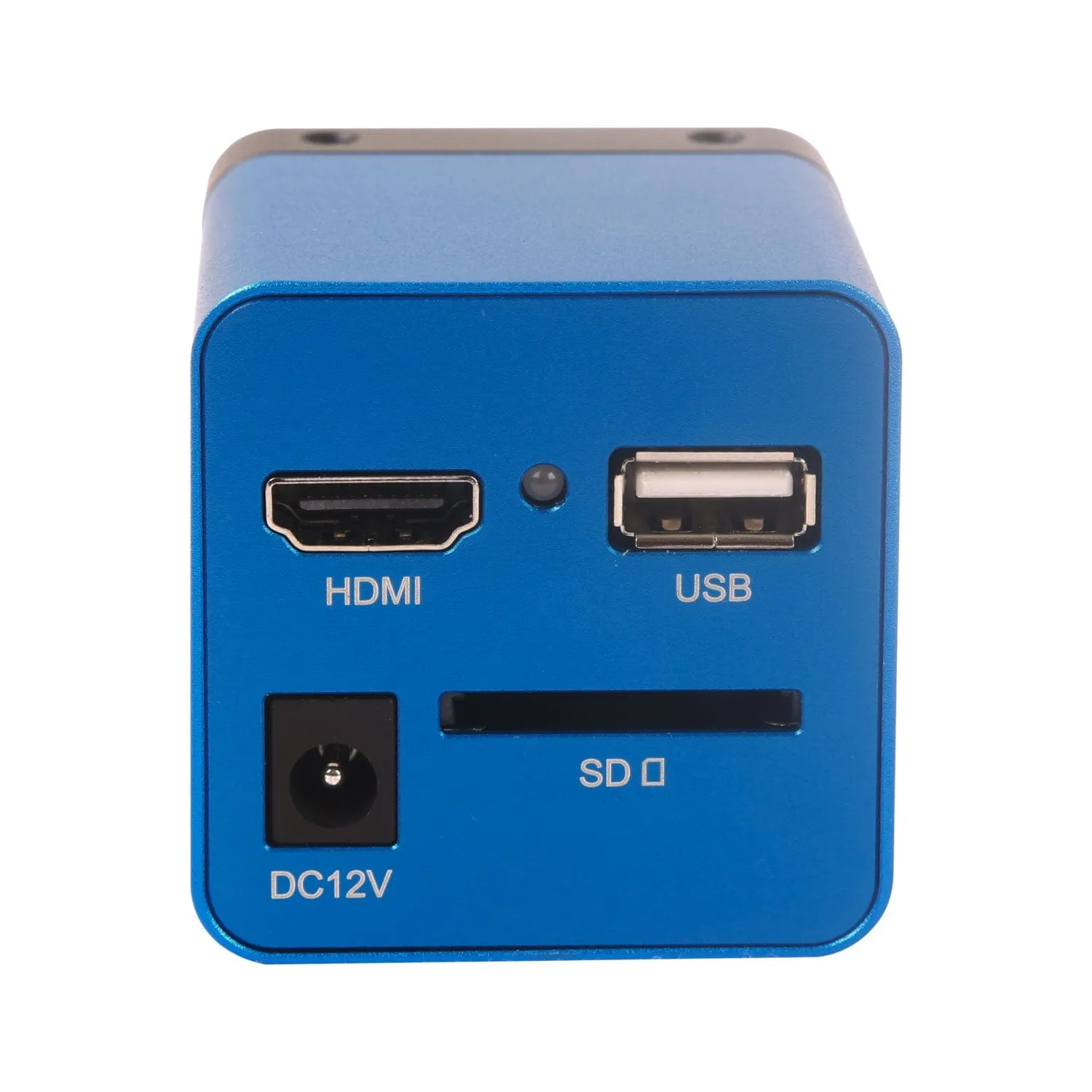

Connectivity	HDMI

Lens-mount	C-mount

Compensating Lens	0.37X (optional)

Power	12VDC 1A

Dimensions	50mm x 50mm x 61mm

Operating Temperature	-10-50°C

Operating Humidity	30-80%
