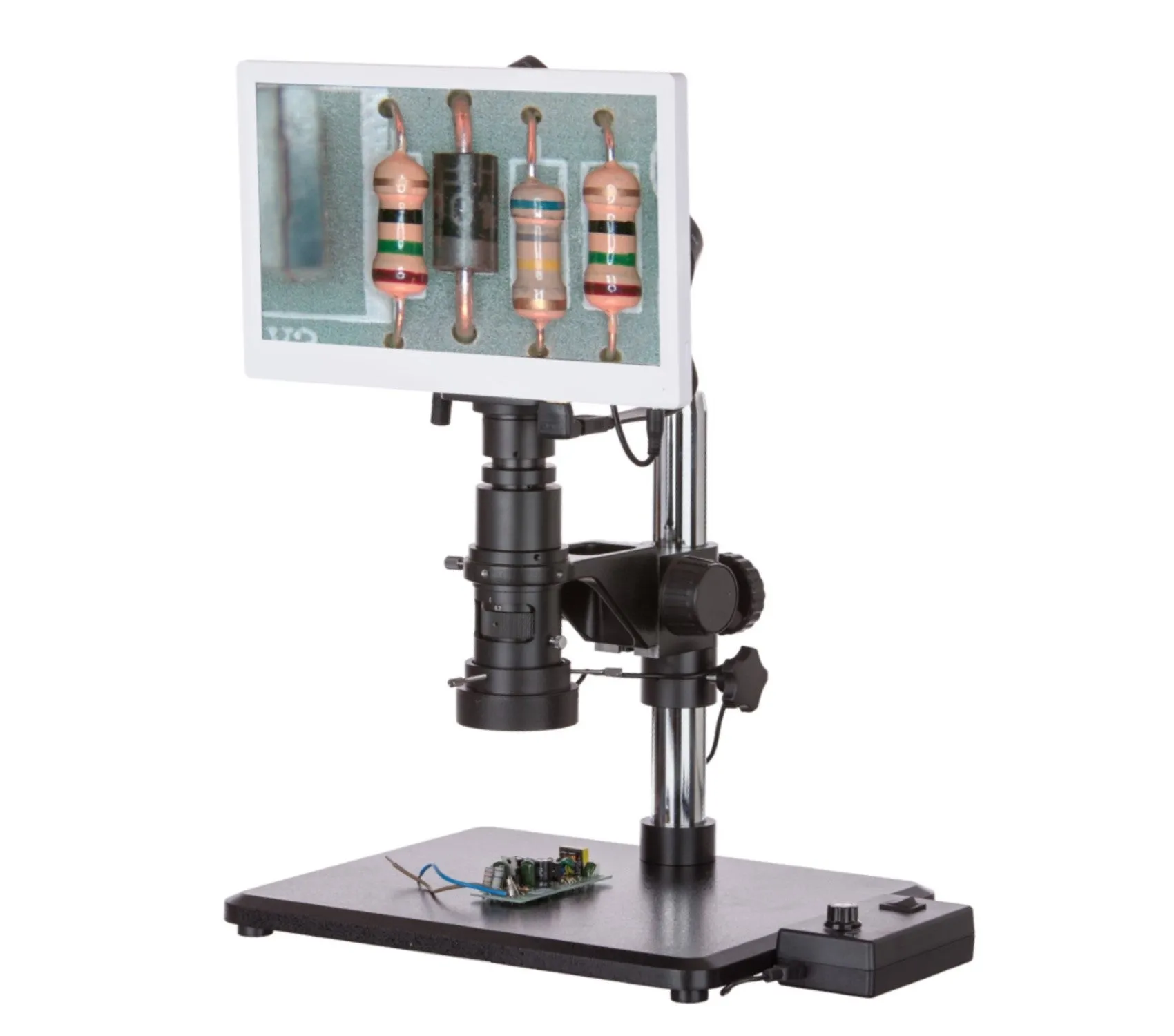

This is a monocular inspection microscope with 0.7X-5.0X zoom objective and 0.4X C-mount lens. It offers large working distance, super widefield of view and crystal clear sharp images. It is ready to connect to a PC or TV camera. Included is our 1920x1080, 15fps via HDMI or USB2.0 digital camera kit with 11.5" monitor for live viewing and recording of your microscope image!

Features include...

• 0.7X - 5.0X Zoom Objective
• C-mount lens
• 4-1/8" / 105mm Working Distance
• Field of view: 1/2" x 11/16" to 5/64" x 3/32"
• 12.9mm x 17.1mm to 1.8mm x 2.4mm
• Metal Stand with 11" Post

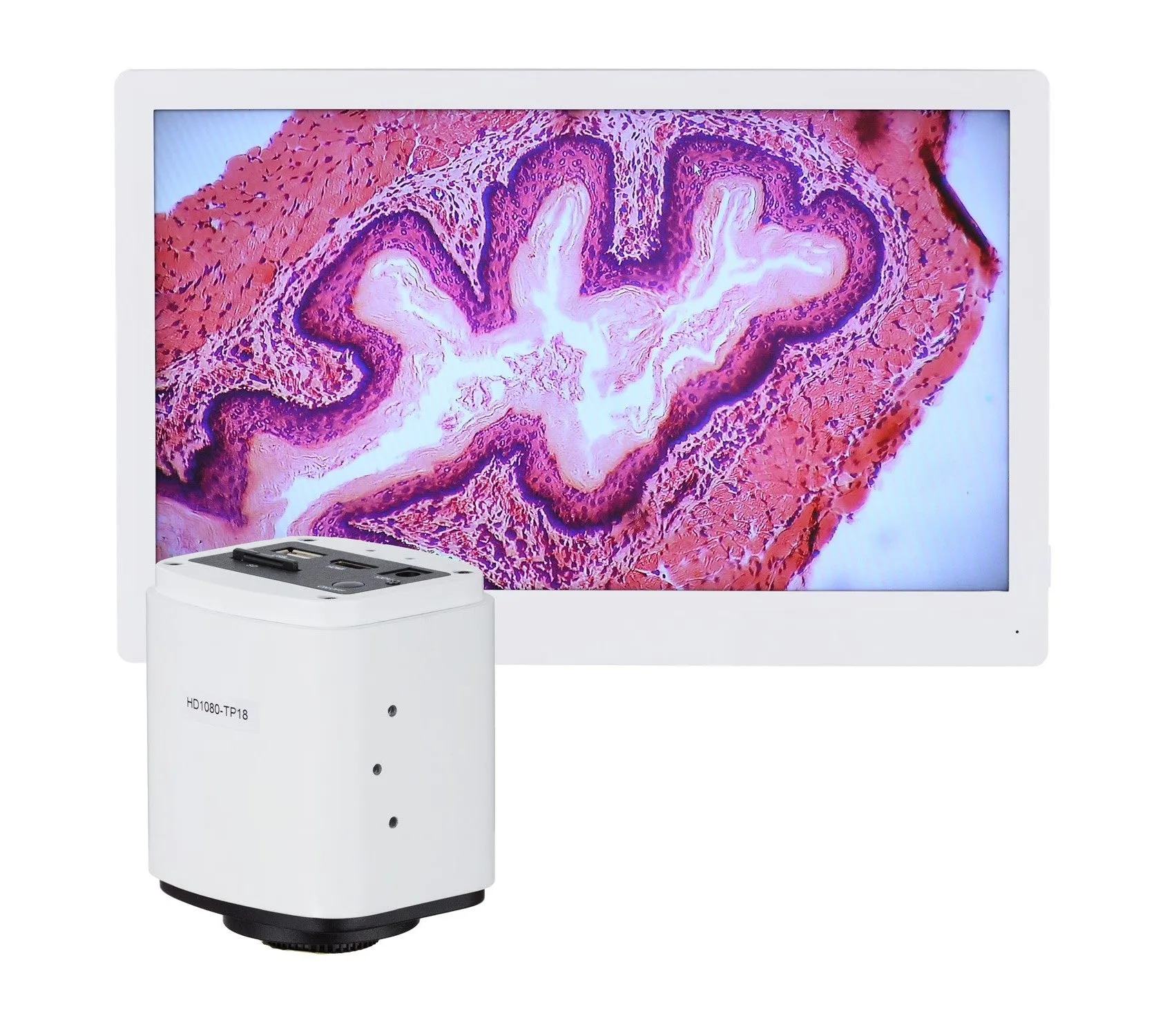

• 1920 x 1080p HDMI / USB2.0 Digital Camera
• 11.5" HDMI Monitor
• 96-LED Ring Light

Camera Specifications...

• Sensor: Aptina MT9P031 CMOS
• Sensor Size: 1/2.5 inch (10mm)
• Pixel Size: 2.2µm
• Preview Resolution: 1920 x 1080
• Still Capture Resolution: 2592 x 1944
• Video Capture Resolution: 1920 x 1080
• Video Framerate: 15fps SD Card, 15fps USB, 15fps HDMI
• Recording Media: SD Card (4G)
• Exposure Time: 1/1000 - 10s
• Exposure Modes: Automatic, Manual
• Settings: Gain, Gamma, Saturation, Contrast
• White Balance: Automatic
• Interfaces: USB 2.0, HDMI
• Built-in Software: Cloud v1.0
• Software: ISCapture
• Compatible Operating Systems: Win XP/7/8 (32/64bit)
• Optical Port: Standard C-mount (aluminum)
• Power Supply: DC 12V 2A
• Operational Temperatures: 0 - 60°C
• Storage Temperature: -20 - 70°C
• Humidity Tolerance: 45% - 85%
• Dimensions: 74.4mm x 67.2mm x 90.9mm

Built-in Software Features...

• Captures Still Images & Records Video
• 1080p Video Recording (15 fps)
• Auto Exposure & Manual Exposure Setting Options
• Saturation, Brightness, Contrast, & Tint Options
• Auto White Balance Functionality
• 3D Noise Reduction
• ROI Magnification Functions (Image Flip, Rotation, ROI)
• Image Side by Side Comparison Functionality
• Built-in File Browser
• Lifetime software updates

Computer Software Features...

• Compatible with Windows XP/Vista/7/8 (32 & 64 bit)
• Computer Requirements: CPU Equivalent to Intel Core2 2.8GHz or higher, Memory: 2GB or more, USB2.0 port
• Preview live images right on your computer
• Record images and video
• Auto and manual control of exposure, gain, white balance, gamma, contrast, saturation, and more
• Lifetime software updates
